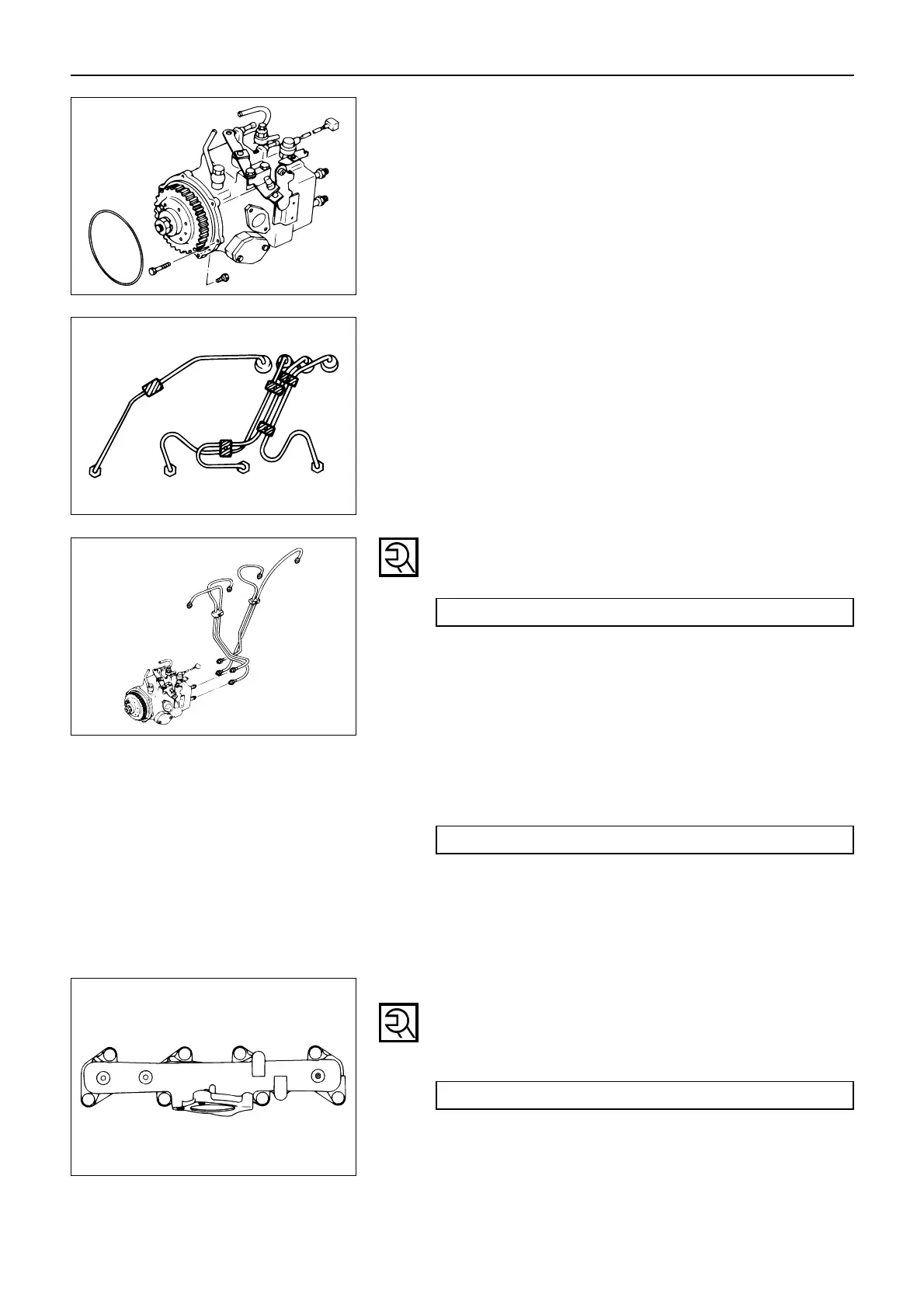

ENGINE ASSEMBLY ( 3 )
3. Fuel Injection Pipe with Clip
1) Temporarily tighten the injection pipe sleeve
nut.
2) Set the clip in the prescribed position.
Note:
Make absolutely sure that the clip is correctly positioned.
An improperly positioned clip will result in injection pipe
breakage and fuel pulsing noise.
106
3) Tighten the injection pipe sleeve nut to the
specified torque.
Injection Pipe Sleeve Nut Torque kgf·m(lb.ft/N·m)
2.0 – 4.0(14.4 – 28.9/19.6 – 39.2)
11. Starter
Tighten the starter bolts to the specified torque.
Starter Bolt Torque kgf·m(lb.ft/N·m)
6.0 – 8.0 (43.4 – 57.9/58.8 – 78.4)
12. Exhaust Manifold
Tighten the exhaust manifold bolts to the specified
torque a little at a time in the numerical order shown
in the illustration.
Exhaust Manifold Bolt Torque kgf.m(lb·ft/N·m)
1.4 – 2.4(10.1 – 17.3/13.7 – 23.5)
