ENGINE ELECTRICALS

GENERAL DESCRIPTION

150

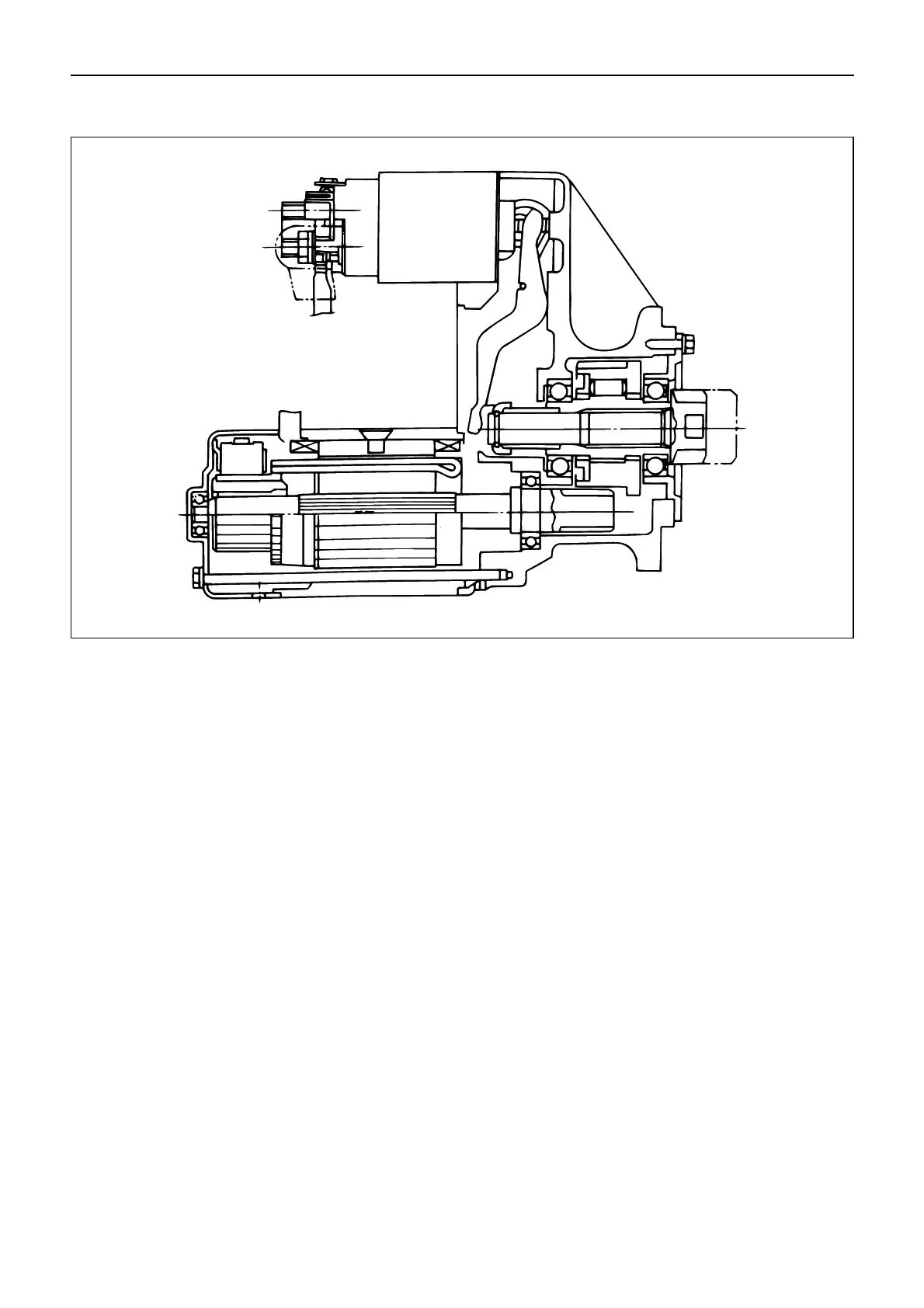

This starter is equipped with a reduction gear between the armature shaft and the flywheel ring gear drive

pinion.

This construction enable the starter to reduce 27% of the armature shaft revolution speed at the pinion

contributing to achieve more compact size and higher cold engine starting ability than the non-reduction

gear type starter.
