ENGINE ELECTRICALS
151

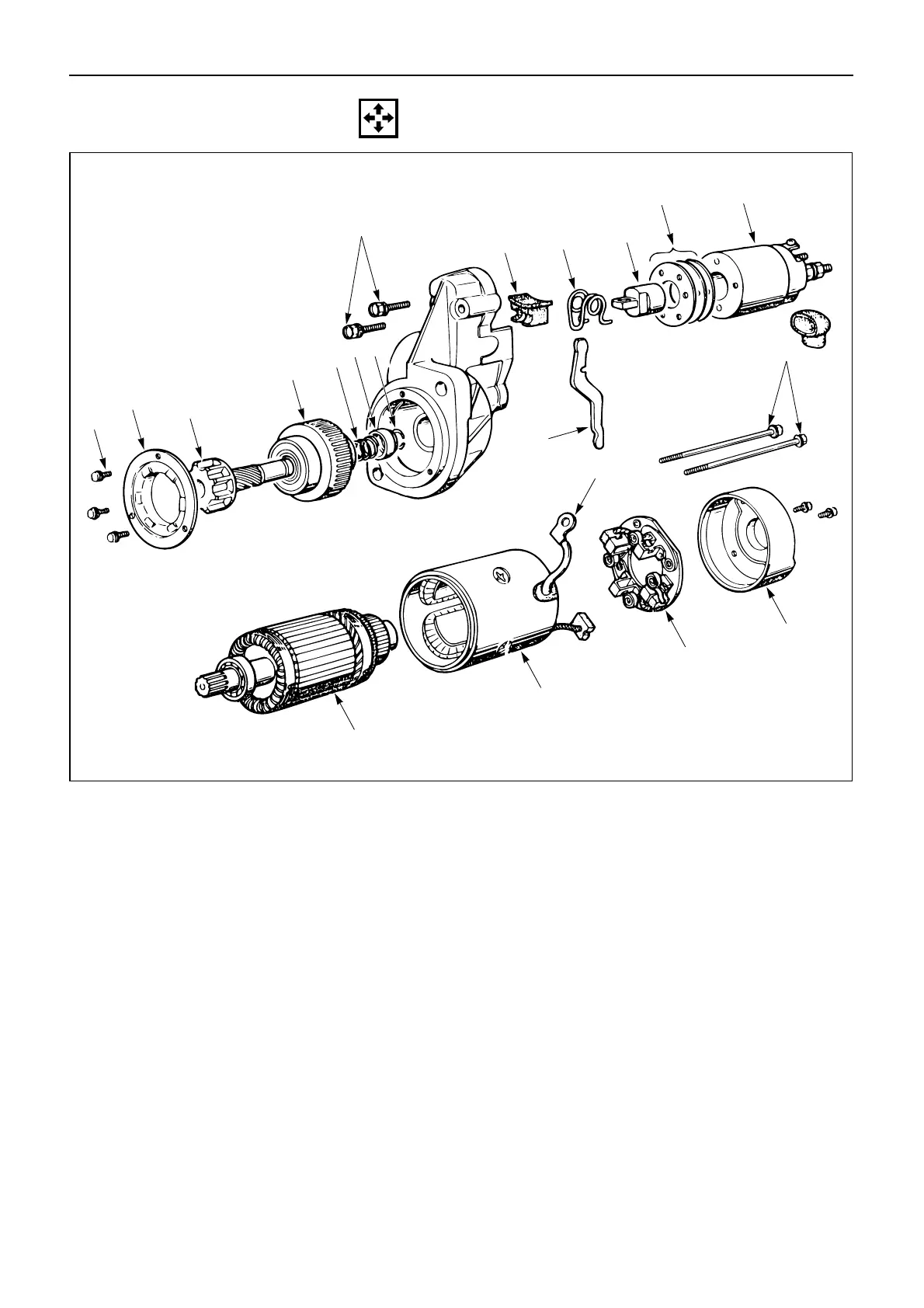

DISASSEMBLY
Disassembly Steps
▲ 1. Lead wire
2. Bolt
▲ 3. Magnetic switch
▲ 4. Torsion spring
▲ 5. Plunger
▲ 6. Shim
▲ 7. Through bolt
8. Rear cover
9. Brush holder
10. Yoke
11. Armature
12. Screw
▲ 13. Bearing retainer
▲ 14. Snap ring
15. Pinion stopper
16. Return spring
17. Pinion shaft
18. Overrunning clutch
19. Dust cover
20. Shift lever
12
13
17
18
15
16
14
2
19
4
5
6
3
7
20
1
8
9
10
11
