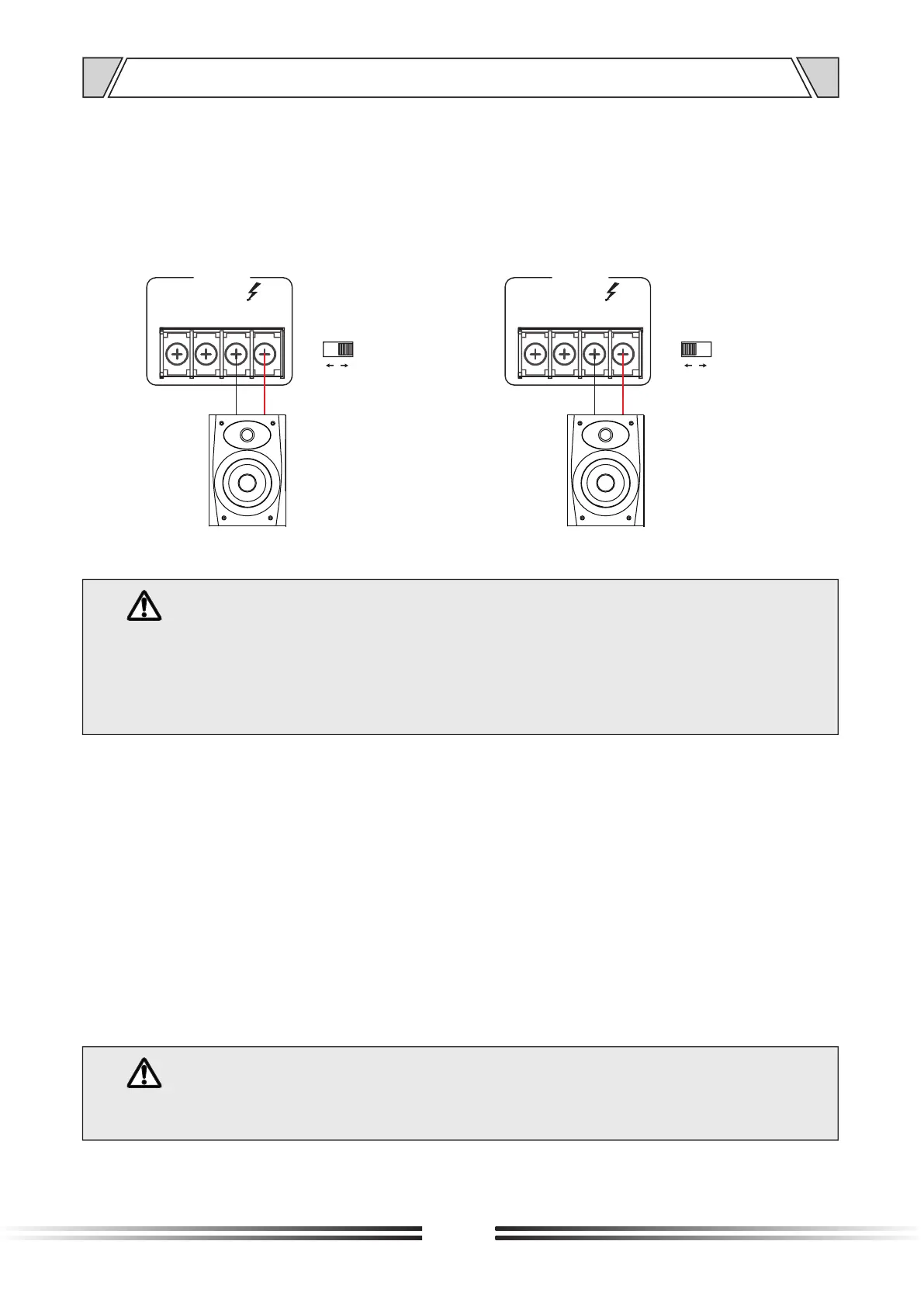

5. OPERATION ILLUSTRATION
1.Connect the speakers:
①When the 100V and 70V selector switch to
70V position, as shown below:
②When the 100V and 70V selector switch to
100V position, as shown below:
Note:
1. Before connecting the speakers, please make sure that the equipment is powered off. In the
case of power on, may have the risk of electric shock.
2. Please make sure there are no applied load to the speaker cables.
3. During the installation of speakers, please make sure that the sum of the rated input power
of the speakers to be connected is less than rated power of equipment.
2.Connect external devices:
①Please ensure that the equipment and all equipment will be connected are powered off.
②Using the corresponding cable to connect this equipment and other external equipment.
3.Connect the power line and turn it on:
①Please make sure that the power switch of equipment and its connected equipment are
turned off (in the OFF position).
②Turn the volume knob to the left
③Connect the supplied power line to the AC IN interface
④Plug the power line into the applicable socket
⑤Turn on the connected equipment (CD player, etc.), and then turn on the equipment.
Note:
1.Before powering on, please check and make sure there is no problem with the cable and connection.
2.When you turn off the system, turn off the equipment, and then turn off the connected equipment.
70V/
100V
OUTPUT
COM COM COM
Maximum output voltage: 70V
SPK-
SPK+
70V100V
70V/
100V
OUTPUT
COM COM COM
Maximum output voltage: 100V
SPK-
SPK+
70V100V
To Next Page
