ITC TA-H4 PRECISION SERIES User Manual

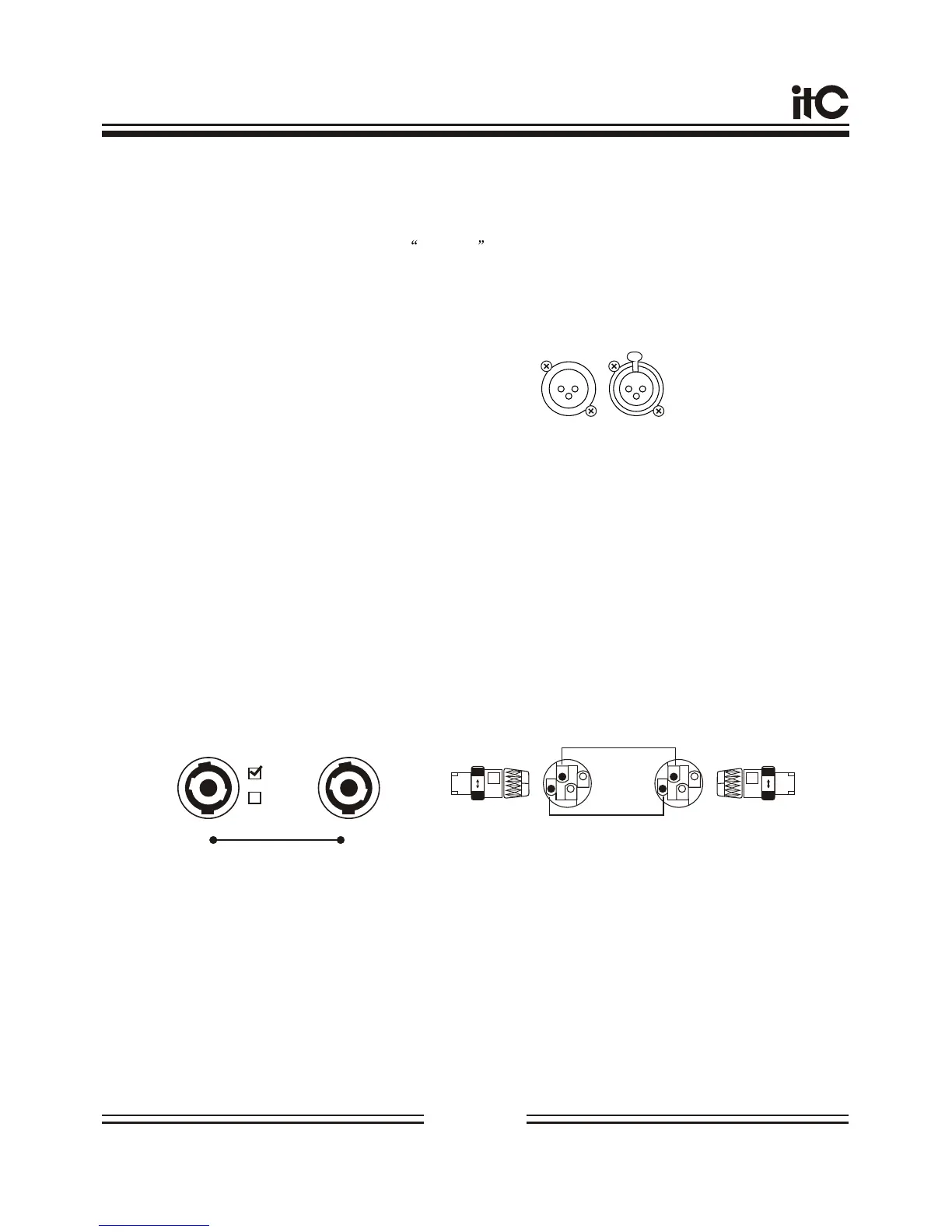

POWER AMPLIFIER OUTPUT CONNECTORS:
SPEAKON output connectors are provided for the power amplifier channels A(left)and B(right).
The Bridged Out connector for bridged operation is sealed with a plTStic cover to prevent connection
errors.
SPEAKON CONNECTIONS:
Input Link
Pin 1+and
Pin 1-
Pin 2+and
Pin 2-
Speakon Pin1 connection
POWER AMPLIFIER INPUT CONNECTORS:
XLR connectors(male)are provided for Looping the signal to other power amplifiers.These are wir-
ed parallel to the XLR input connectors in each channel.
The inputs of the power amplifier are electronically balanced and wired according to IEC 268.lsolation
transfomers can be retrofitled in order to avoid hum interference in larger sound reinforcement systems.
PleTSecontact your dealer if you have any problems.
Input wiring XLR
PIN 1:SHELD
PIN 2:a,+,hot
PIN 3:b,-,cold
The inputs are electronically balanced.
The input sensitivity is set to 0dBu(775mV)by the factory.PleTSe contact your local dealer if you want
to change to 6dBu or 26dB gain.
+1
-1
+1
-1
Speakon Cable,Speakon, 2 conductors
OUTPUT
INPUT
CONNECTIONS
( PAGE 5 )
