Inspection and Installation
Connect Interface

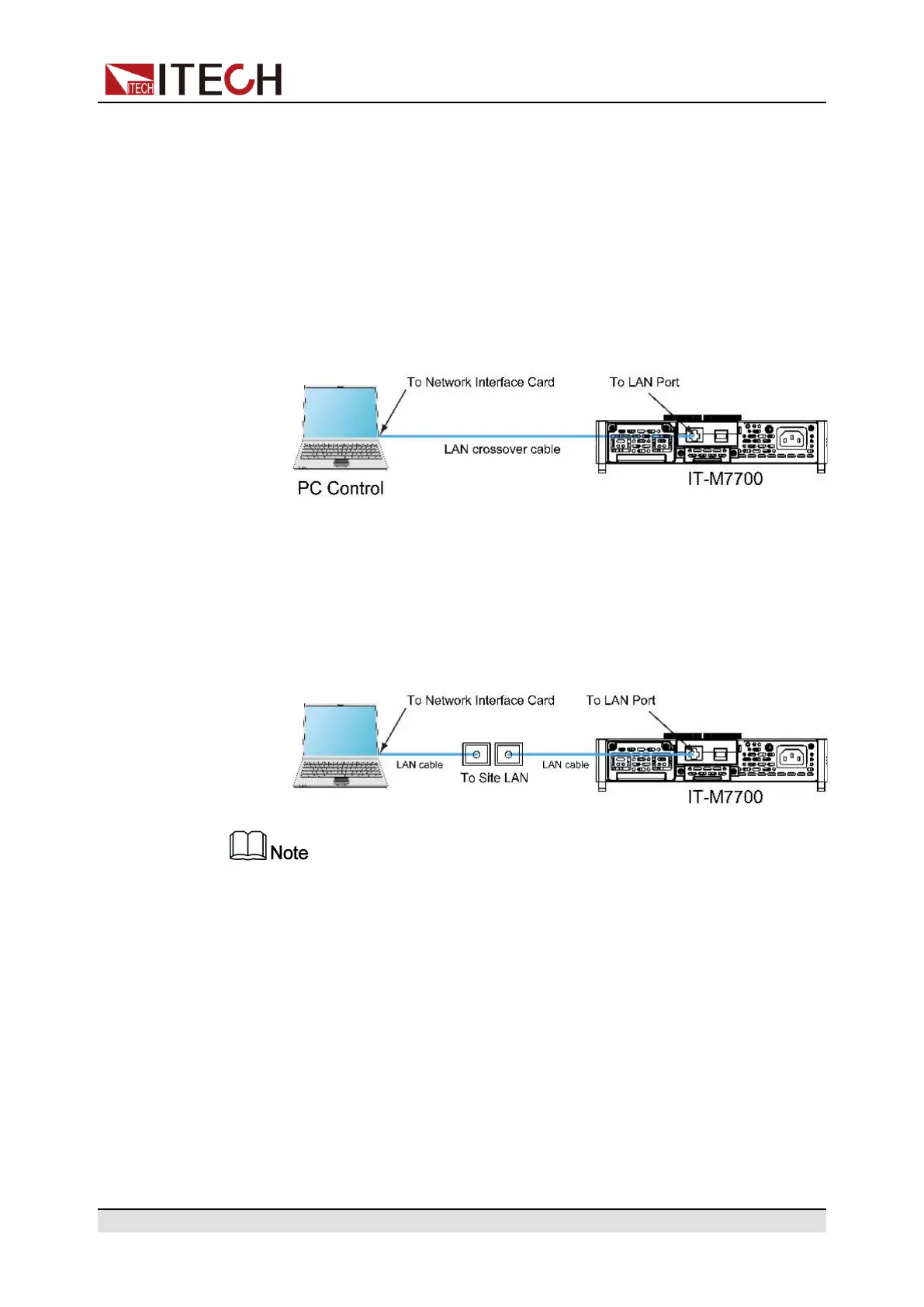

Use the following steps to quickly connect your instrument to your LAN and con-
figure it. Two typical LAN interface systems are described below: private LAN
and site LAN.
• Connect to the private LAN
A private LAN is a network in which LAN-enabled instruments and com-
puters are directly connected. They are typically small, with no centrally
managed resources. When connected to a computer, a crossover cable can
be used to connect directly to the computer via the LAN interface.
• Connect to the site LAN
A site LAN is a local area network in which LAN-enabled instruments and
computers are connected to the network through routers, hubs, and/or
switches. They are typically large, centrally-managed networks with services
such as DHCP and DNS servers. When connected to a computer, a direct
attached network cable can be used to connect to the router, and the com-
puter is also connected to the router.
• When using one crossover cable to connect PC directly, the gateway address of
the instrument should be consistent with that of the PC, and the IP address
should be at the same network segment with the PC’s IP address.
• When the instrument and computer are connected to the router, an independent
IP address must be assigned for the instrument.
LAN Status Indicator
The lower icon notes the two status LEDs located at the bottom of the LAN port.
