Inspection and Installation
If neither of the LEDs is lit, the network is not connected.

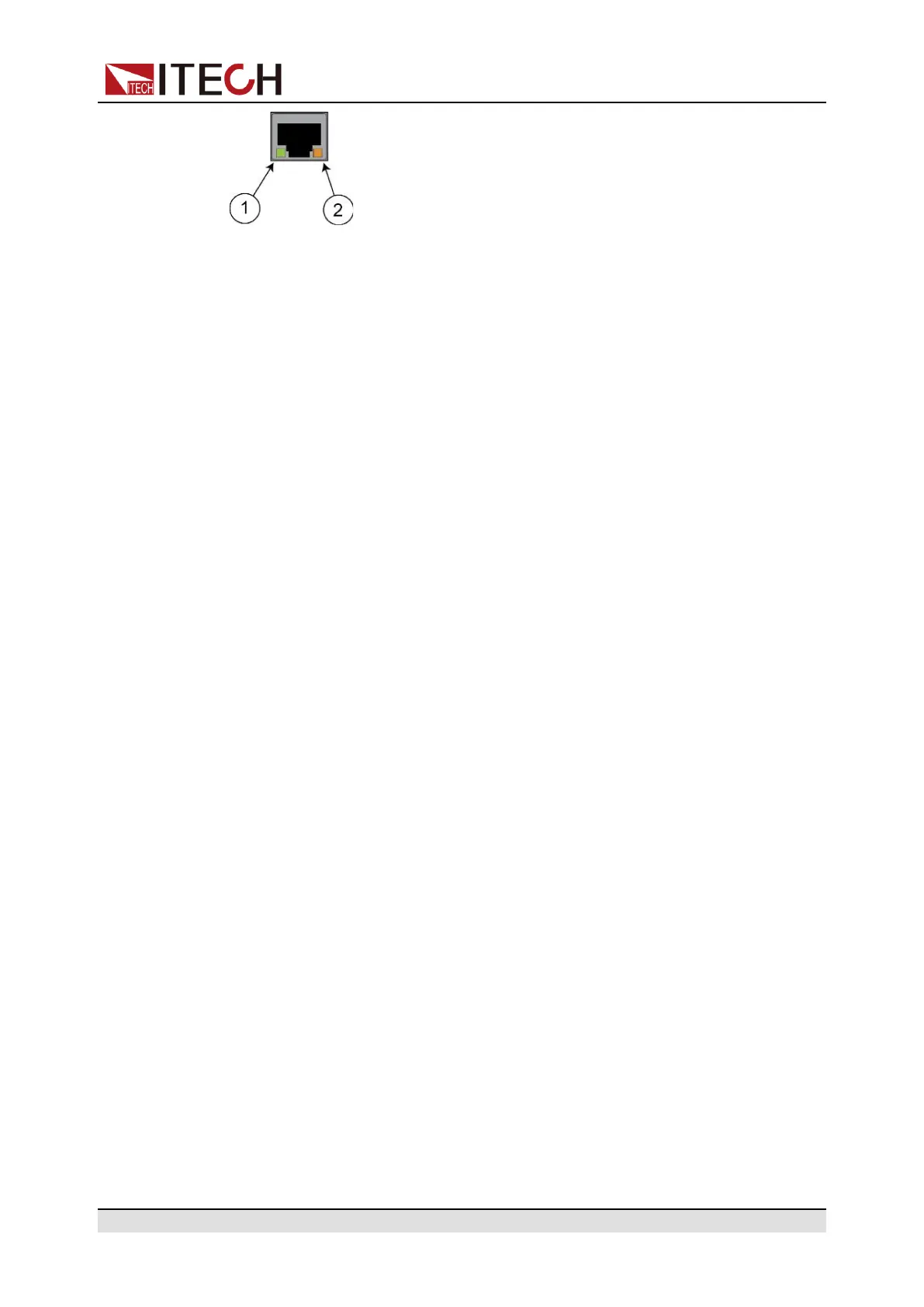

• Position 1: when lit, it indicates that the LAN port is connected.
• Position 2: When flashing, it indicates that the LAN port is receiving or send-
ing a message.
Configure LAN Interface Information
When shipped, DHCP is on, which may enable communication over LAN. The
letters DHCP stands for Dynamic Host Configuration Protocol, a protocol for as-
signing dynamic IP addresses to devices on a network. With dynamic address-
ing, a device can have a different IP address every time it connects to the
network.
The user can view the related information of LAN interface or configure the com-
munication parameters in system menu.
• Automatically configure the address of the instrument.（Auto）
When selected, the instrument will first try to obtain an IP address from a
DHCP server. If a DHCP server is found, the DHCP server will assign an IP
address, Subnet Mask, and Default Gateway to the instrument. If a DHCP
server is unavailable, the instrument will try to obtain an IP address using
AutoIP. AutoIP automatically assigns an IP address, Subnet Mask, and De-
fault Gateway addresses on networks that do not have a DHCP server.
• Manually configure the address of the instrument.（Manual）
Set the following parameter. The following information only appear when
Manual is selected.
– IP: This value is the Internet Protocol (IP) address of the instrument. An
IP address is required for all IP and TCP/IP communications with the in-
strument. An IP Address consists of 4 decimal numbers separated by pe-
riods. Each decimal number ranges from 0 through 255 with no leading
zeros (for example, 169.254.2.20).
– Gate: This value is the IP Address of the default gateway that allows the
instrument to communicate with systems that are not on the local subnet,
as determined by the subnet mask setting. The same numbering notation
applies as for the IP Address. A value of 0.0.0.0 indicates that no default
gateway is defined.
– Mask: This value is used to enable the instrument to determine if a client
IP address is on the same local subnet. The same numbering notation
applies as for the IP Address. When a client IP address is on a different
subnet, all packets must be sent to the Default Gateway.
– DNS1: This field enters the primary address of the server. Contact your
LAN administrator for server details. The same numbering notation
