Basic Operation
Name Description
V
in1
Indicates the start voltage input to pin 8. The
setting range is from –10 to 10.
V
in2
Indicates the end voltage input to pin 8. The
setting range is from –10 to 10, and
V
in2
>V
in1
.
V
out1
The starting value of the output voltage in
CV priority mode.
V
out2
The end value of the output voltage in CV
priority mode, and V
out2
>V
out1
.
I
out1
The starting value of the output current in
CC priority mode.
I
out2
The end value of the output current in CC
priority mode, and I
out2
>I
out1
.

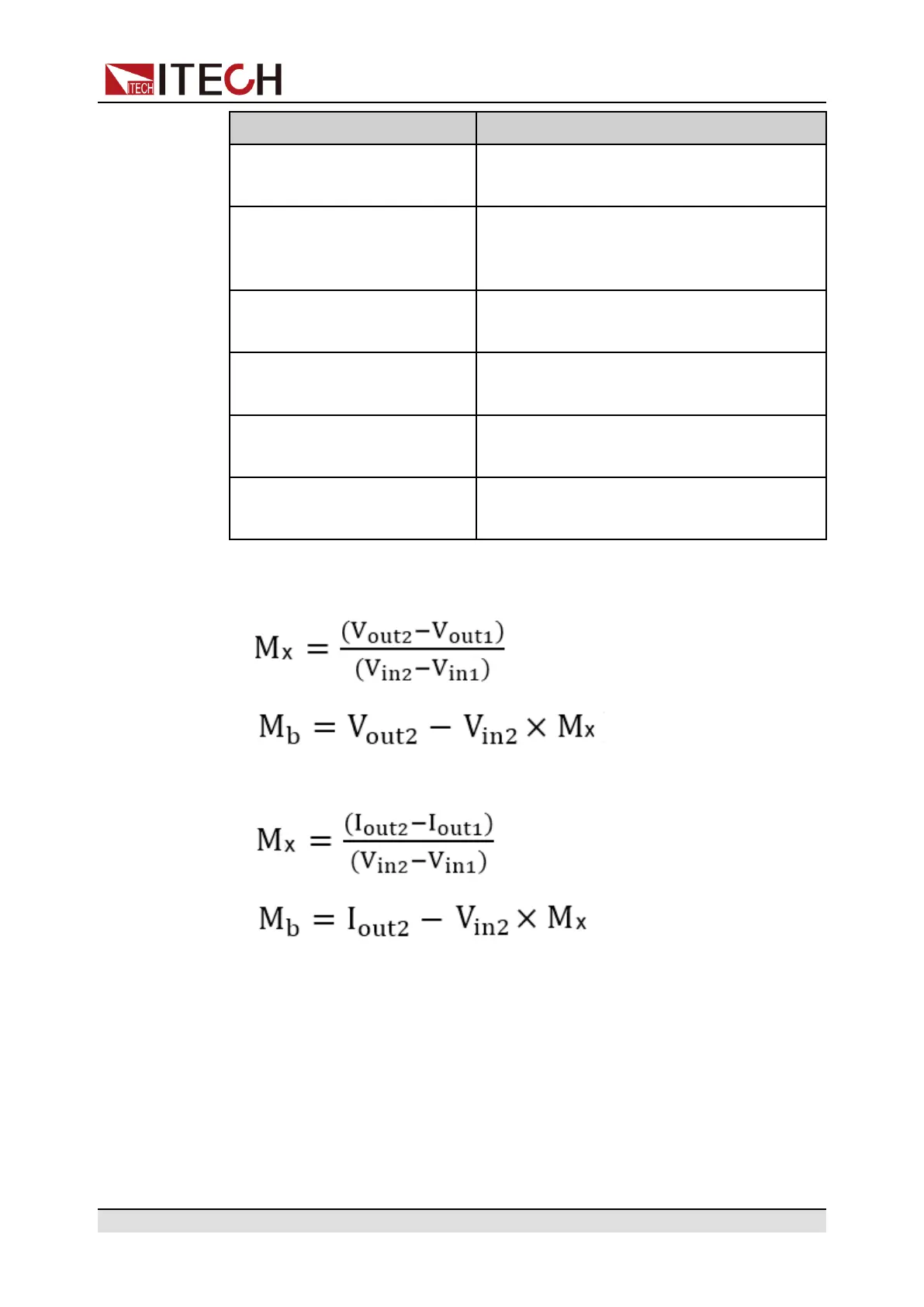

• CV priority
• CC priority
How to Use
The following takes the CV priority mode as an example to introduce the usage
steps.
1. Refer to the figure below to complete the pin connection.
Copyright © Itech Electronic Co., Ltd.
187
