Power Supply Function

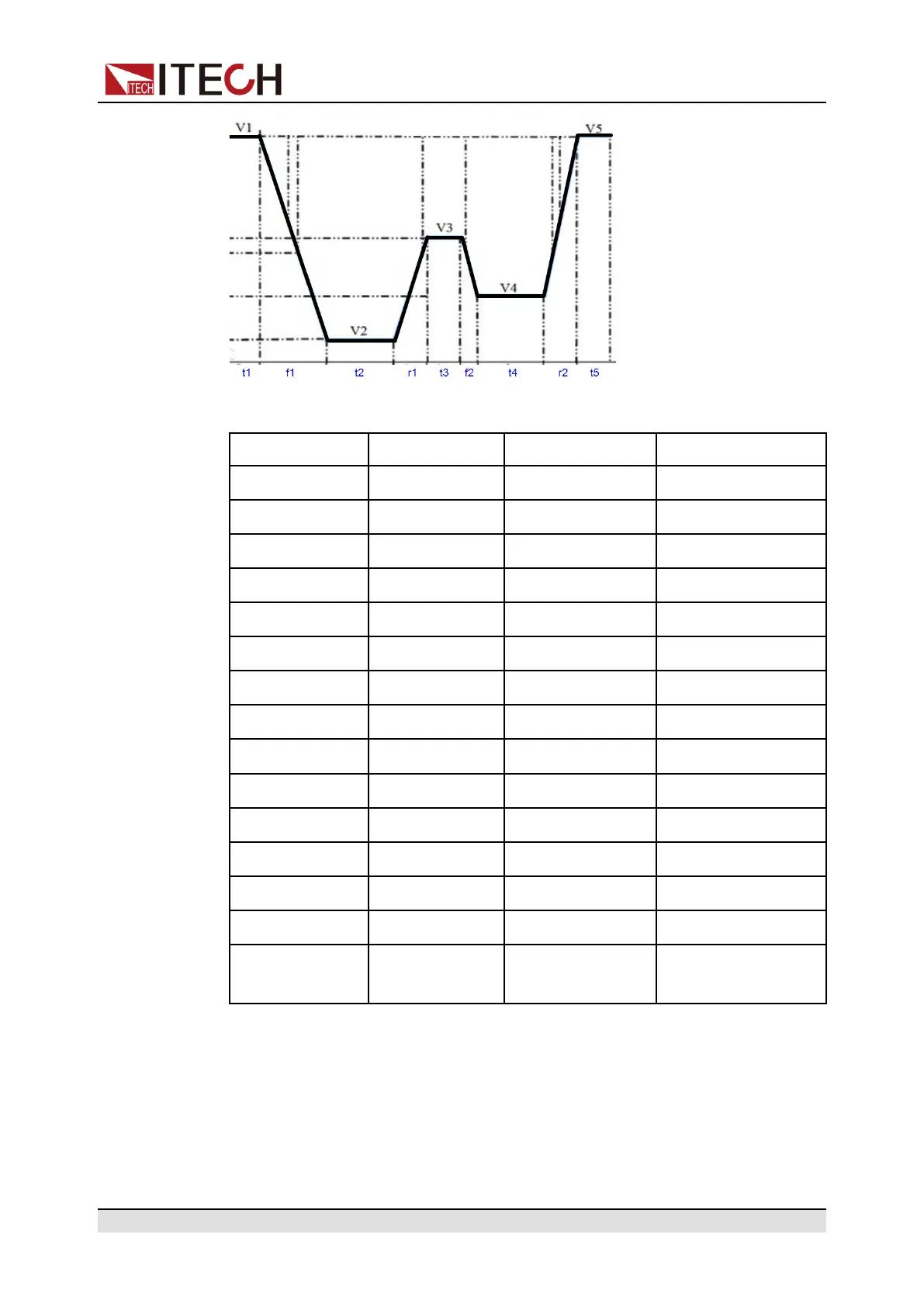

The parameters are as follows:

Parameter HV_1 HV_2a HV_2b

V1 140V 255V 350V

V2 60V 120V 150V

V3 85V 165V 225V

V4 70V 140V 175V

V5 140V 255V 350V

t1 60S 60S 60S

f1 4mS 7mS 10mS

t2 60S 60S 60S

r1 60S 60S 60S

t3 60S 60S 60S

f2 60S 60S 60S

t4 60S 60S 60S

r2 4mS 6mS 9mS

t5 60S 60S 60S

Actual number

of tests

Count*3 Count*3 Count*3

How to Use

The following is an example of how to use this function by recalling the LV123

standard regulation Unlimited and HV_1 waveform.
