Power Supply Function

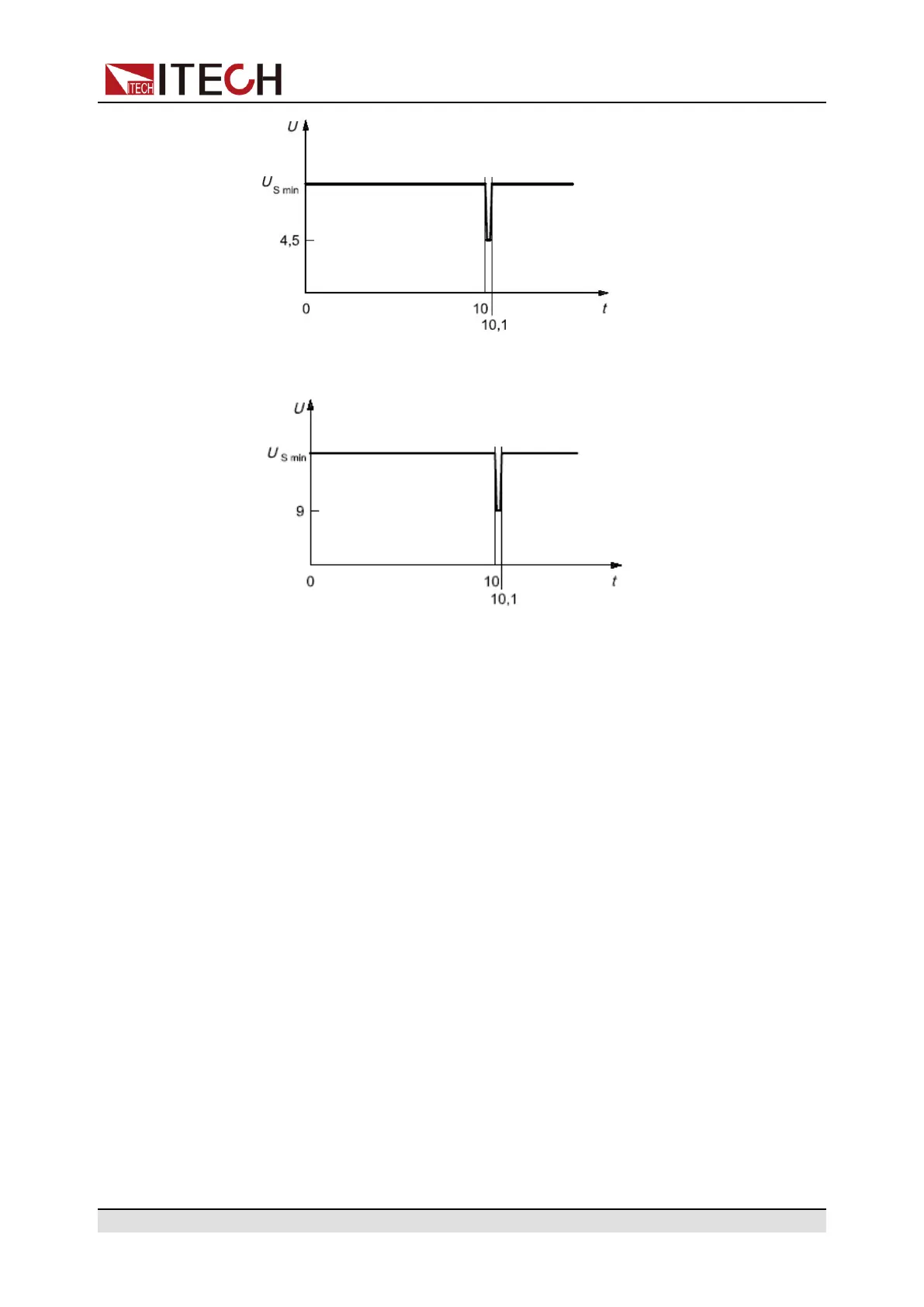

• 24V system
How to recall this waveform from menu (take 12V system as an example):
1. Press the composite keys [Shift]+[I-set] (Function) on the front panel to en-
ter the function menu.
2. Use the knob or press the Up/Down key to select 3.Road-Vehicles = Off
and press [Enter].
3. Press the Left/Right key to select ISO16750-2 and press [Enter] to confirm.
4. Press the Left/Right key to select Short-Drop and press [Enter] to confirm.
5. Press the Left/Right key to select 12V and press [Enter] to confirm.
The interface returns to the main interface of the system and displays
SHORT-DROP.
6. Press [On/Off] on the front panel to turn on the output.
7. According to the selected trigger method (same as the trigger method of the
LIST function), for example, press [Shift]+[On/Off](Trigger) to trigger the
output of the waveform.
Reset-Test
This test verifies the reset behavior of the DUT at different voltage drops. This
test is applicable to equipment with reset function, e.g. equipment containing
Copyright © Itech Electronic Co., Ltd.
77
