Inspection and Installation

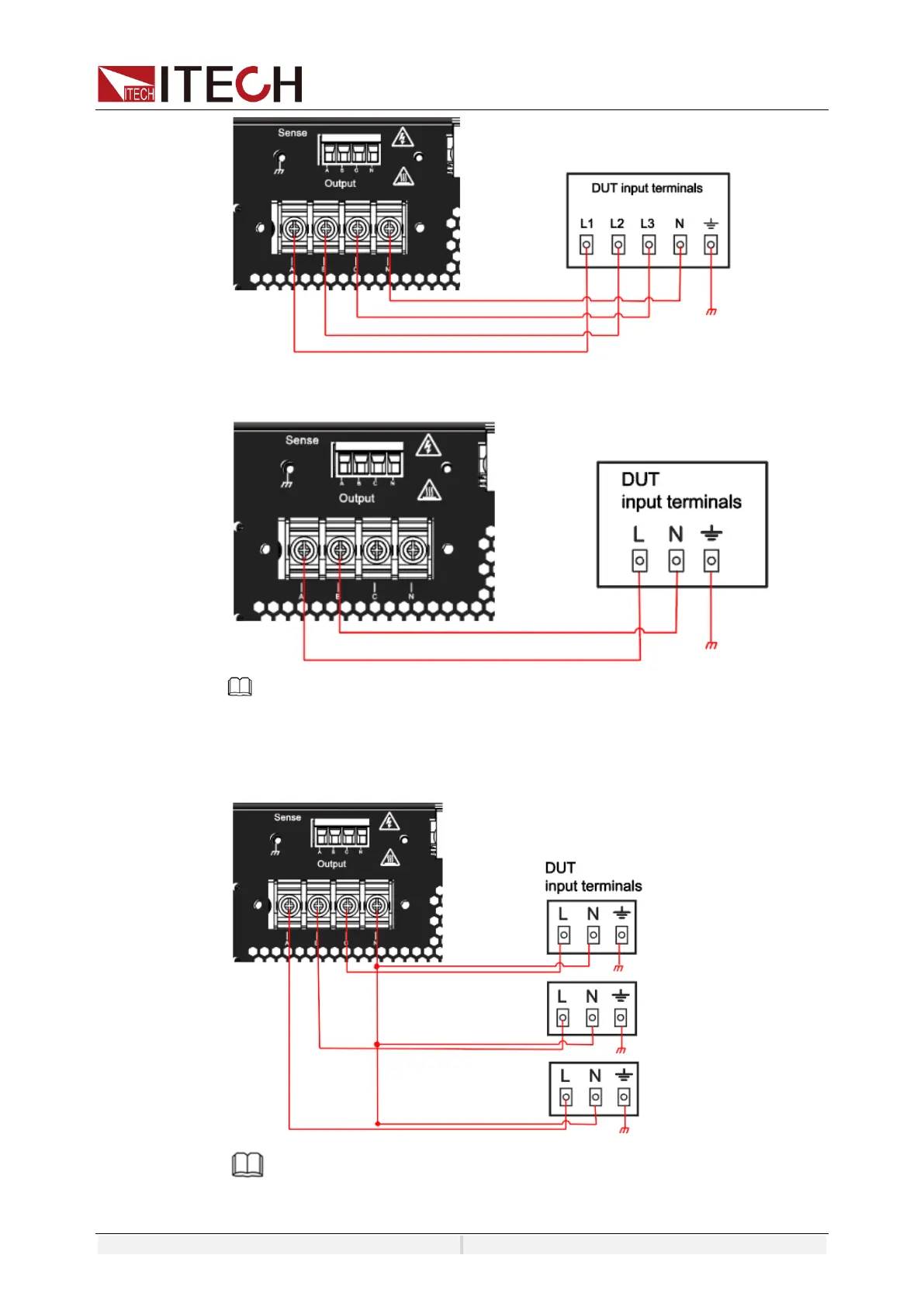

⚫ The connection diagram of split phase is shown as follow:

NOTE

When the output voltage has DC voltage, the output terminal A is positive, and B is

negative.

⚫ The connection diagram of single phase is shown as follow:

NOTE

When the output voltage has DC voltage, the output terminal L is positive, and N is

negative.
