ITech IT7915P-350-90

Instrument Introduction
Copyright ©ITECH Electronic Co., Ltd. 19
USB cable
x1
-
-
Factory
alignment
report
x1
-
Test report before delivery
NOTE
After confirming that package contents are consistent and correct, please appropriately
keep package box and related contents. The package requirements should be met when
the instrument is returned to factory for repair.
The IT7930P-350-180 model comes with a yellow optical fiber cable. The fiber cable need
to install by yourself. For details, see 3.3 chapter.

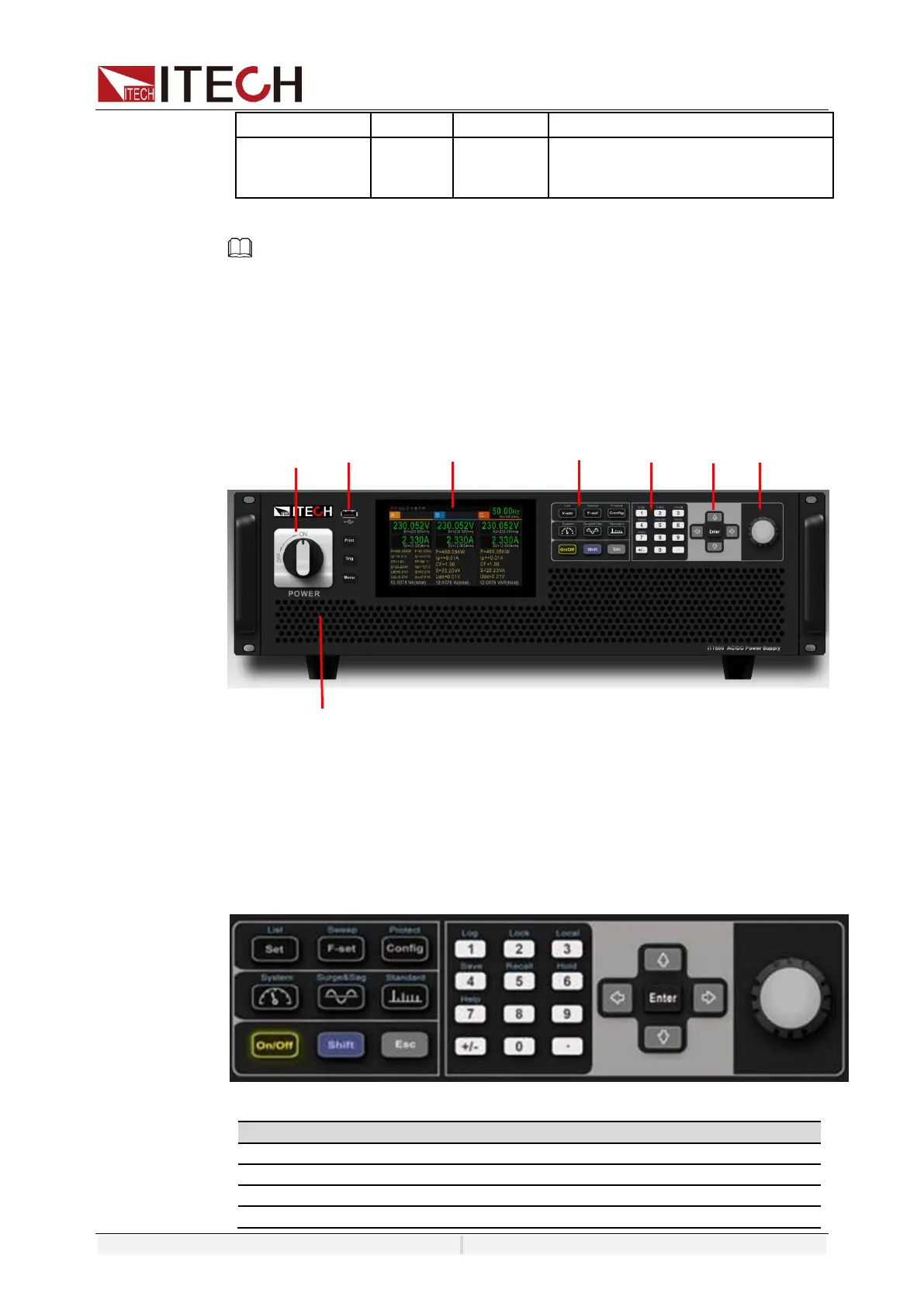

2.3 Front Panel
The front panel of IT7900P is as shown below.
1 Power Switch
2 USB interface /Print/Trig/Menu
3 LCD touch screen
4 Function key
5 Number key
6 Up, down, left and right key and enter key
7 Rotary knob
8 Vent hole
2.4 Keyboard
The keyboard introduction of IT7900P series Power Supply is shown as follows.
Keys
Description
Print
Used for saving screen images
Trig
Used for manual trigger
Power
Power Switch
Menu
Used for going back to menu page
1
2
3
4
5
6
7
8
