Operation and Application
Copyright ©ITECH Electronic Co., Ltd. 89

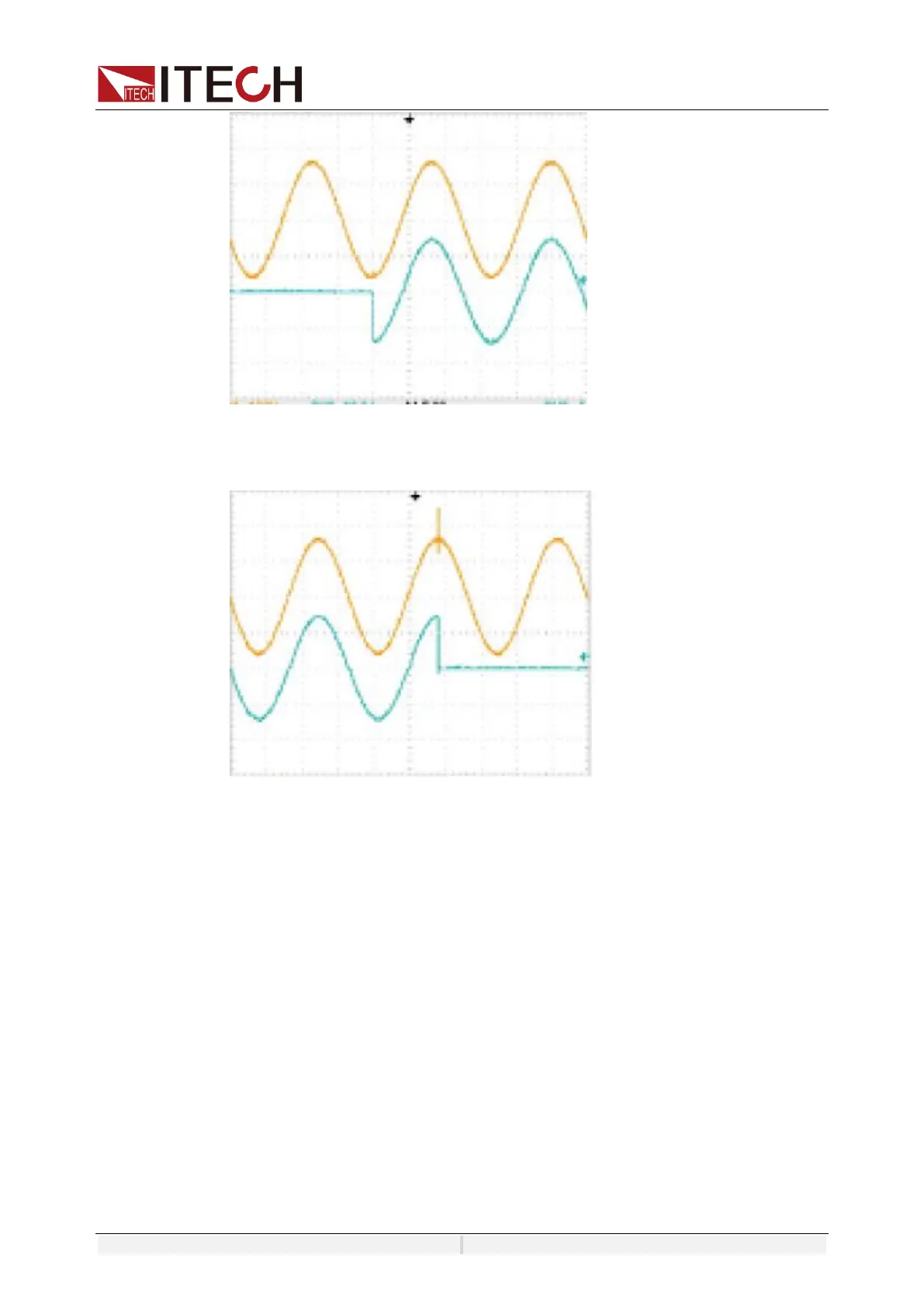

When Off Phase is set as angle control and the angle is set to 90°, the waveform
is shown below.
6.10 Sweep Function
IT8200 series electronic load supports scanning function in CC and CR mode,
which can set the starting current value or resistance value, termination value,
step value, and single step time, so that the load value can be changed in step
type.
Operating steps
6. Press [Shift] + [F-set] (Sweep) on the front panel to enter the sweep
interface, as shown in the figure below.
