ITech IT8500plus Series - Instrument Size Introduction

Inspection and Installation
Copyright © Itech Electronic Co., Ltd. 3
1.2 Instrument Size Introduction
The instrument should be installed at well-ventilated and rational-sized space.
Please select appropriate space for installation based on the electronic load
size.
IT8500+ series electronic load different models are not the same size, the detail
size of the electronic load is shown as below.

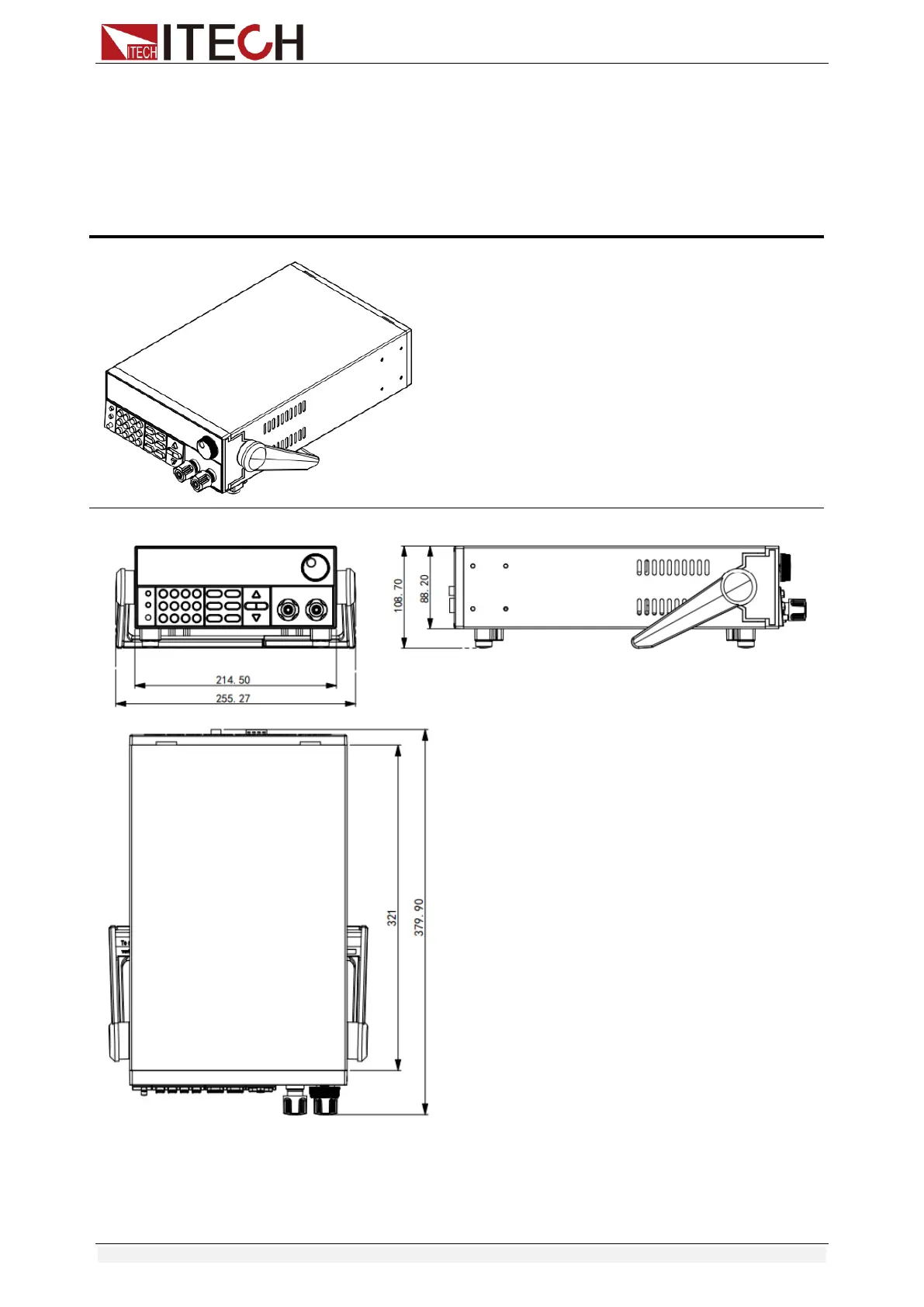

IT8511+/IT8511A+/IT8511B+/IT8512+/IT8512B+/IT8512C+/IT8512H+ Model
Detailed Dimension Drawing
