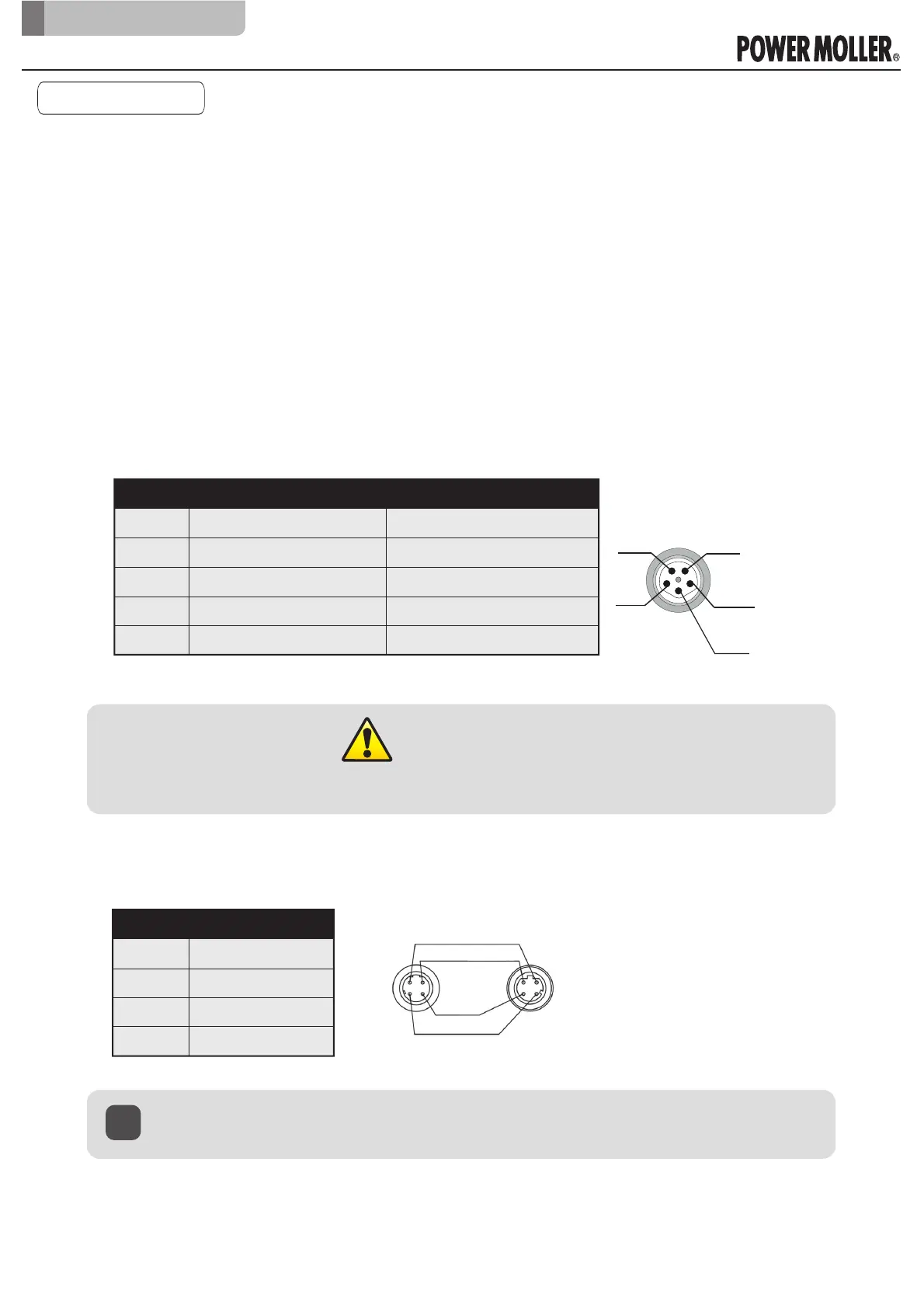

Motor cable
M8-5pin connector (female)
 ・
Switching the motor output setting to motor port output, allows the use of the motor port as a
remote output.
 ・
The setting for “Motor output “ or “Motor port” can be switched with iCEP or PLC.
- With iCEP: Refer to «iCEP User Manual».
- With PLC: Refer to «Connection with PROFINET capable PLC» user manual - Paragraph «5. How to
change parameters».
 ・
The available motor coils for motor port output are U-phase and V-phase. The outputs are
  
fixed to Nch.
 ・
The maximum output current value is 4A per motor in total of U-phase and V-phase.
Motor cable
M8-5pin connector (female) Cable length 320mm
LAN cable
M12-4pin connector (female/male) Cable length 1200mm
No For
1Tx+
2Rx+
3Tx-
4Rx-
Straight-through or crossover cable can be used for LAN cable connecting IBs.
The LAN cable should be cate
g
or
y
5e or over
1
2
3
4
5
Motor port output(U-phase)
Motor port output(V-phase)
N/A
N/A
+5V
Motor coil(U-phase)
Motor coil(V-phase)
Hall signal
Motor coil(W-phase)
+5V
No For (Motor port)For (Motor)
CAUTION
The motor port output is fixed to “Nch open drain output ” and cannot be changed.
i
4
Black
3
Blue
1
Brown
5
Gray
2 Green / White
2
White
1 Orange / White
3 Orange
4 Brown
Original notice - A1.2
10
Connectors for IB
IB-P05 Technical documentation
