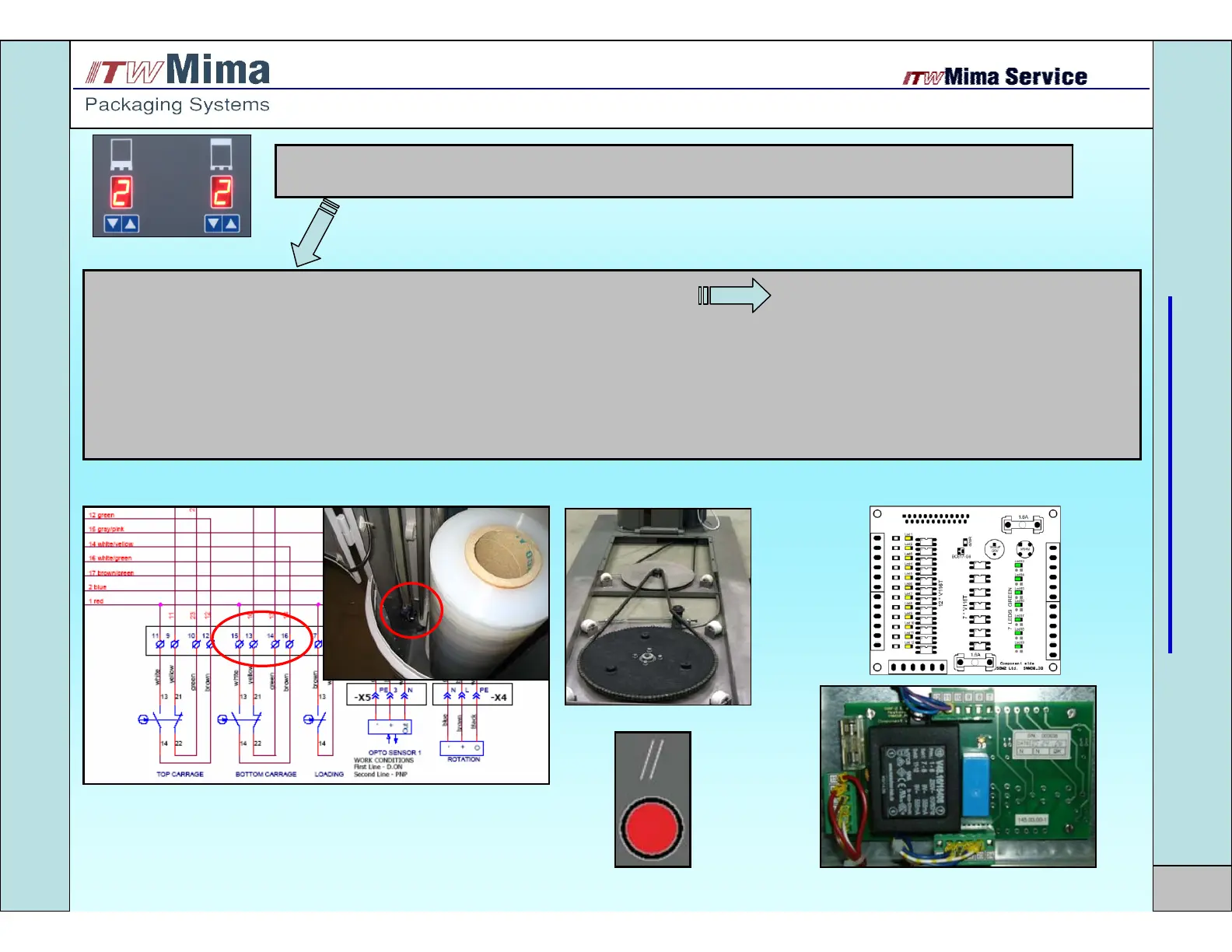

No movement, Normal display
1. Machine is not in home position Press the reset button
2. Carriage cant move to its home position See instructions from page 26
3. Carriage down limit switch can be damaged or disconnected Check the switch, connectors and cables
4. Turntable rotation V-belt or roller chain can be damaged Check and replace if necessary (see page 29)
5. Connector 5 on MPU-controller can be disconnected Connect the plug (see page 27)
6. Connector 6 on power board can be disconnected Connect the plug (see page 28)
7. Connector 8 on power board can be disconnected Connect the plug (see page 28)
TROUBLESHOOTING
16
No movement, normal display
