IVIEW NX-4 User Manual

NX-SERIES USER MANUAL
iView Technology
http://www.iviewtech.com
6

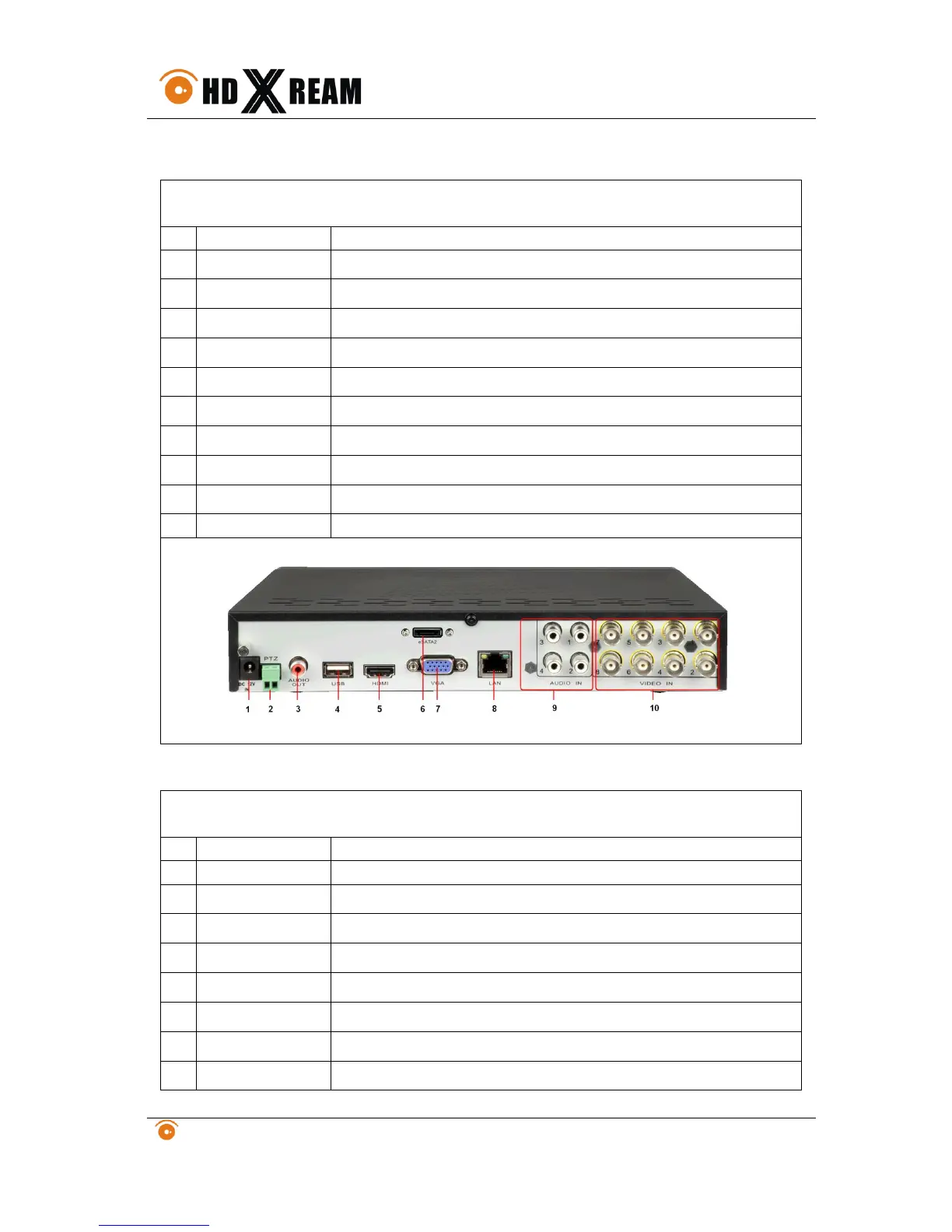

MODEL: NX-88 HYBRID, NX-84 HYBRID
No
Item
Description
1
DC POWER IN
12V DC power input
2
RS485
PTZ control port (Some models don’t support this feature)
3
AUDIO OUT
RCA connectors for analog audio output.
4
USB interface
Connector for USB device.
5
HDMI OUTPUT
HDMI output, Display local video/Audio output and menu.
6
eSATA
eSATA port, connect eSATA HDD for recording or backup
7
VGA OUTPUT
DB9 connector for VGA output. Display local video output and menu.
8
LAN interface
Connector for LAN (Local Area Network).
9
AUDIO IN
RCA connectors for analog audio input.
10
VIDEO IN
BNC connector for analog video input.
MODEL: NX-2416 PRO-V HYBRID
No
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
AUDIO IN and OUT
RCA connectors for 16CH analog audio input and 1CH output
3
RS485
PTZ control port (Some models don’t support this feature)
4
VGA OUTPUT
DB9 connector for VGA output. Display local video output and menu.
5
HDMI OUTPUT
HDMI output, Display local video/Audio output and menu.
6
eSATA2
eSATA port, connect eSATA HDD for recording
7
USB/eSATA1
USB/eSATA port, connect eSATA HDD for backup
8
Alarm
IO alarm, 8CH input and 4CHoutput
