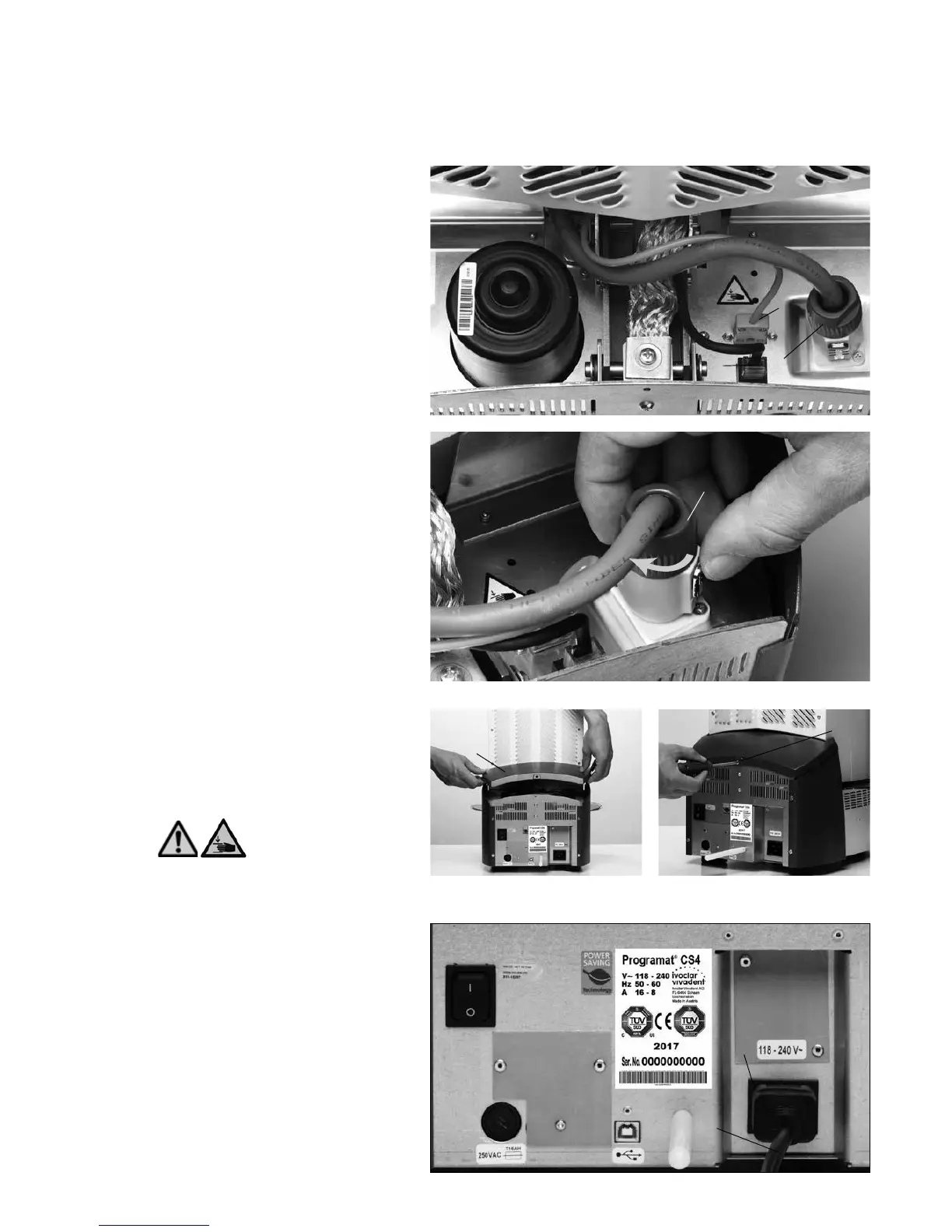

16
Secure the heater plug (20) by turning it until it
has been secured.
Step 6:
Mount the hood (29)
Once all cables are properly connected to the
furnace base, the hood can be mounted.
Subsequently, secure the hood with the
attachment screw (30).
The furnace may only be
operated with the hood
mounted.
Step 7:
Establishing additional connections
Power connection
Please make sure that the voltage indicated on the
rating plate complies with the local power supply.
Connect the power cord (12) with the power
socket (13) of the furnace.
20
12
13
29
30
Step 5:
Making the connections
Connect the cables of the furnace head with the
furnace base. Proceed as follows:
– Insert the thermocouple plug (17) (make sure
that the polarity of the plug is correct)
– Insert the heater plug (20).
– Connect the power electronics plug (18)
20
18
17
