2.1.1 DC (UPS) power supply
The DC Uninterrupted Power Supply (UPS) provides reliable 24 VDC Power Supply load to the
ChlorGuard system.

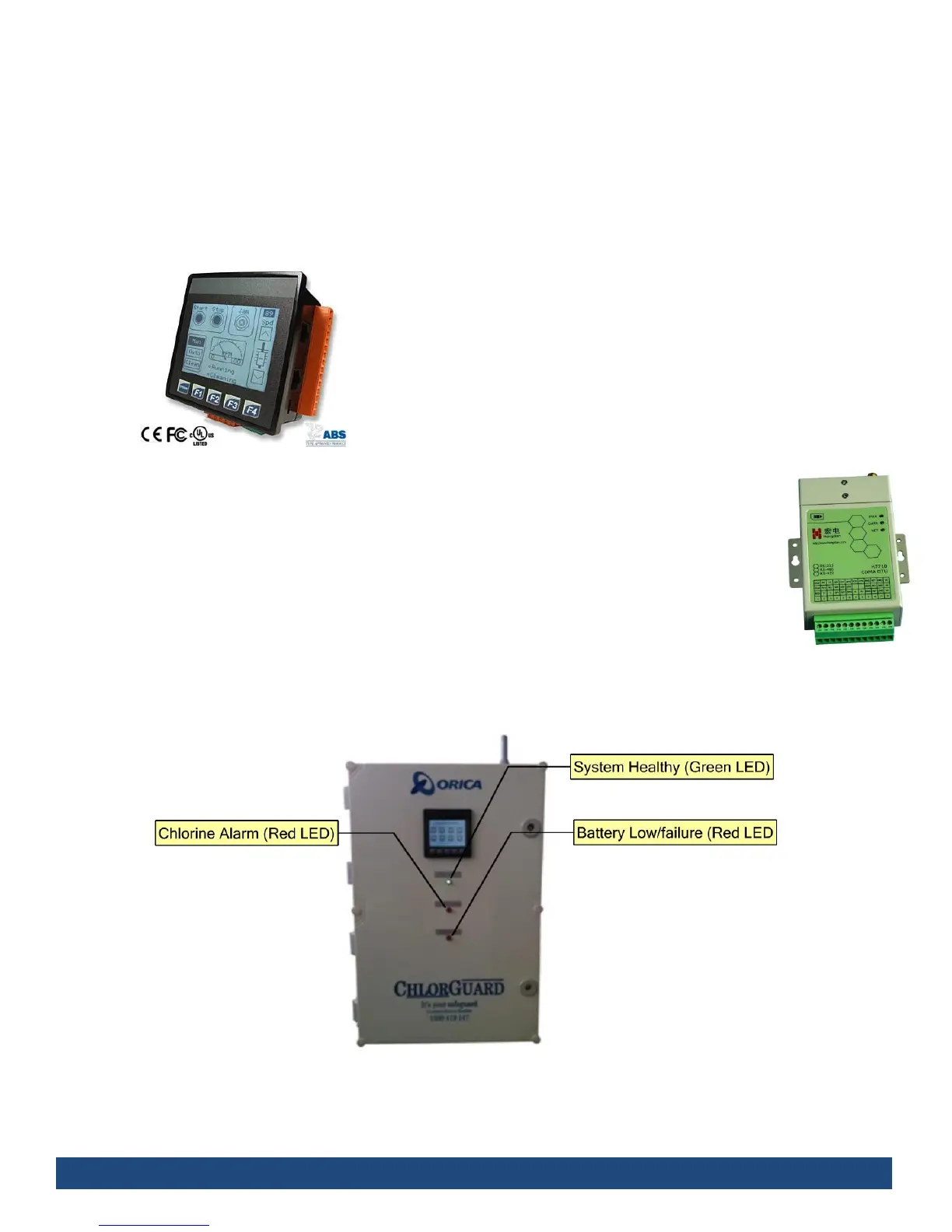

2.1.2 PLC (Programmable Logic Controller)
The ChlorGuard PLC includes a touch screen that provides system
information and access to menus within the program for those
authorised.
2.1.3 GMS wireless module
The GSM transfers information on the status and alarm conditions of the ChlorGuard system for
up to 4 operator phone contacts if required. Important information such as chlorine releases and
alarms are immediately transferred by wireless to operators letting them know when and how
much chlorine is in the work area. Operators can use their phones to log into the ChlorGuard
system to check the status of the system at any time.
2.1.4 Warning LED’s: Visual Alarm
Indicating lights on the front of the panel include the following.
The other indication light such as Low air pressure, etc., is show in the PLC screen.
