2.1 Control Panel
The Control Panel cabinet includes ports for:
Power
Sensors
Up to 8 Actuators (electrical or pneumatic)
Pneumatic solenoid valve input and output.
External devices (SCADA, Alarms etc.)

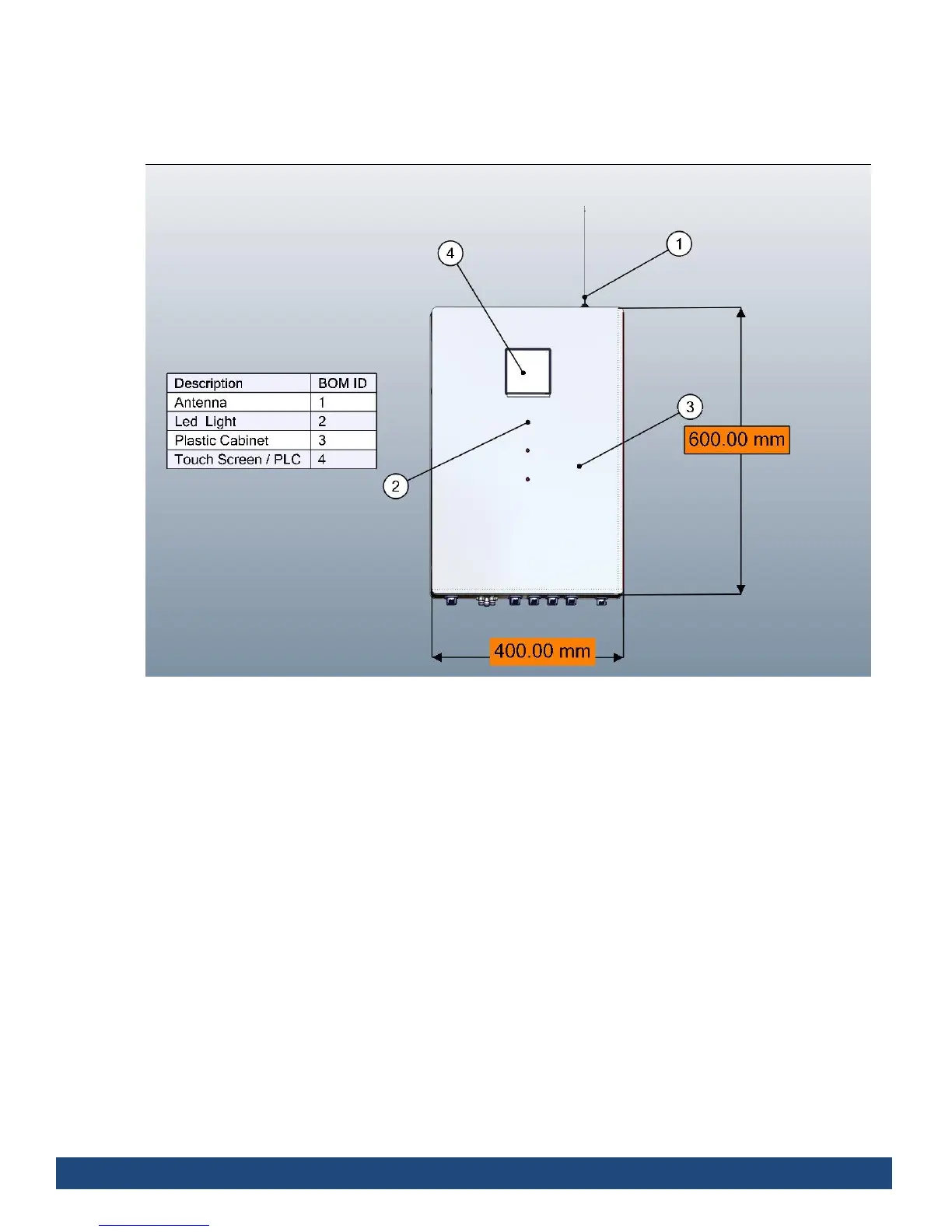

The Control Panel internal distribution design differs in the cabinet regarding if the actuator is electric
or pneumatic ; they’re illustrated in the following drawings:
