IF YOU ARE NOT FAMILIAR WITH APPLICABLE
ELECTRICAL STANDARDS, HAVE THE UNIT INSTALLED BY A
QUALIFIED ELECTRICIAN.
Suggested wiring information is given as a reference. For proper
information, please reference ABYC E-11, AC and DC Electrical
Systems on Boats guidelines.
Wire Size
Table Total Wire Length - feet (meters)
Pump 0 - 20 ft 20 - 35 ft 35 - 55 ft
Voltage (0 - 6 m) (6 - 9 m) (9 - 12 m)
12 VDC #14 AWG #12 AWG #10 AWG
(2.5 mm
2
) (4 mm
2
) (6 mm
2
)
24 VDC #16 AWG #14 AWG #12 AWG
(1.5 mm
2
) (2.5 mm
2
) (4 mm)
Motor case could get hot during extended
operation. Prolonged contact with skin may cause a burn.
Install a Pumpgard
TM
strainer in an accessible
location (for inspection and cleaning) between the tank and
pump inlet in order to protect valves from debris.
Operation
•Fillwatertank
•Openallfaucets
•Turnpumpswitch“ON”
•Whenwaterisfreeofair,turnallfaucetsoffbeginningwith
the faucet closest to the pump (Figure 6)
Important: Do not operate the pump more than 15 minutes
continuously.
!

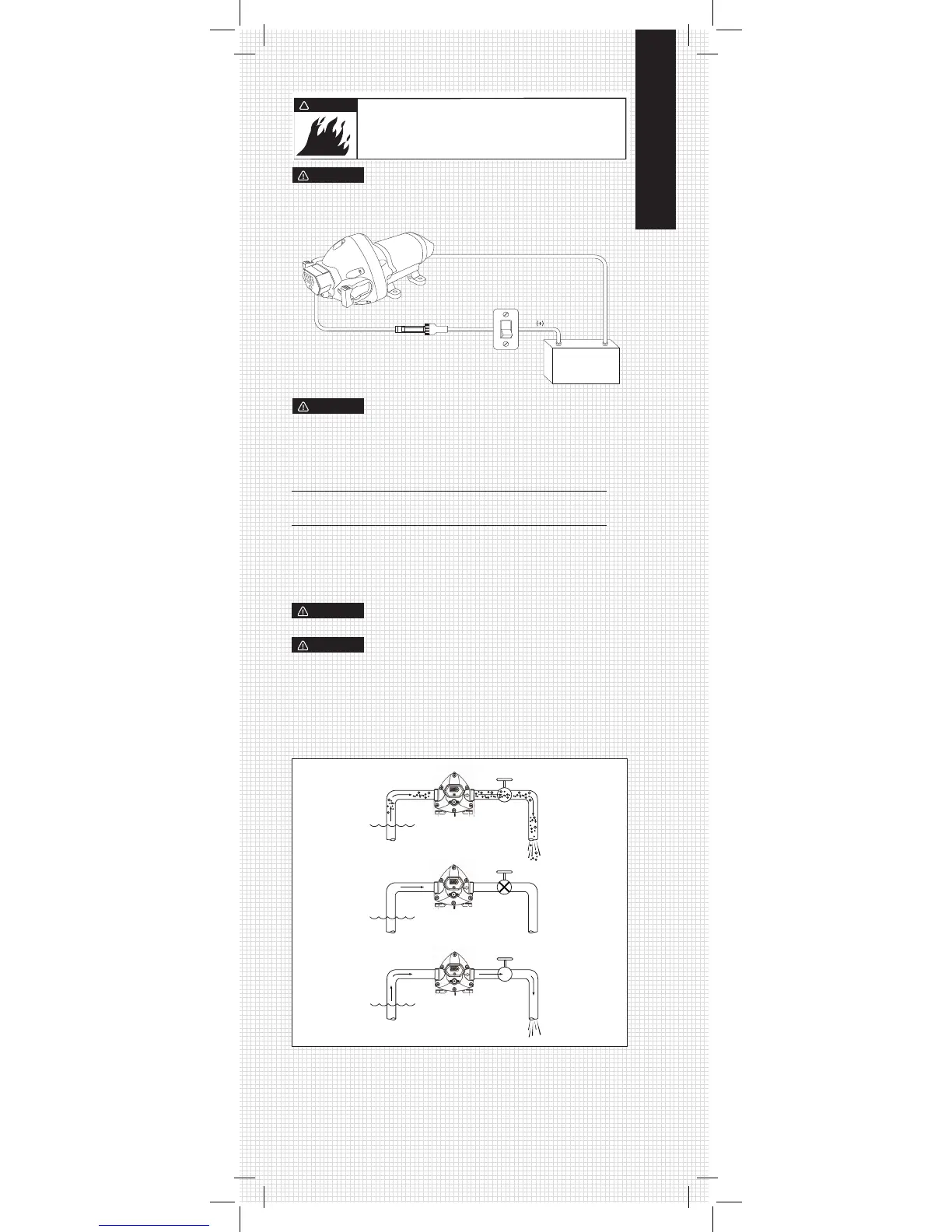

Figure 5.
Figure 6.
Initial Start Up
Red (+)
Demand Off
Demand On
Black (-)
Fuse
Switch
Battery
Fire hazard. Wiring must comply with
applicable electrical standards and include
a properly sized fuse or circuit breaker.
Improper wiring can cause a fire resulting in
injury or death.
WARNING
CAUTION
CAUTION
CAUTION
CAUTION
