JABSCO 50890 - EXPLODED VIEW; Part Numbers; Service Kit

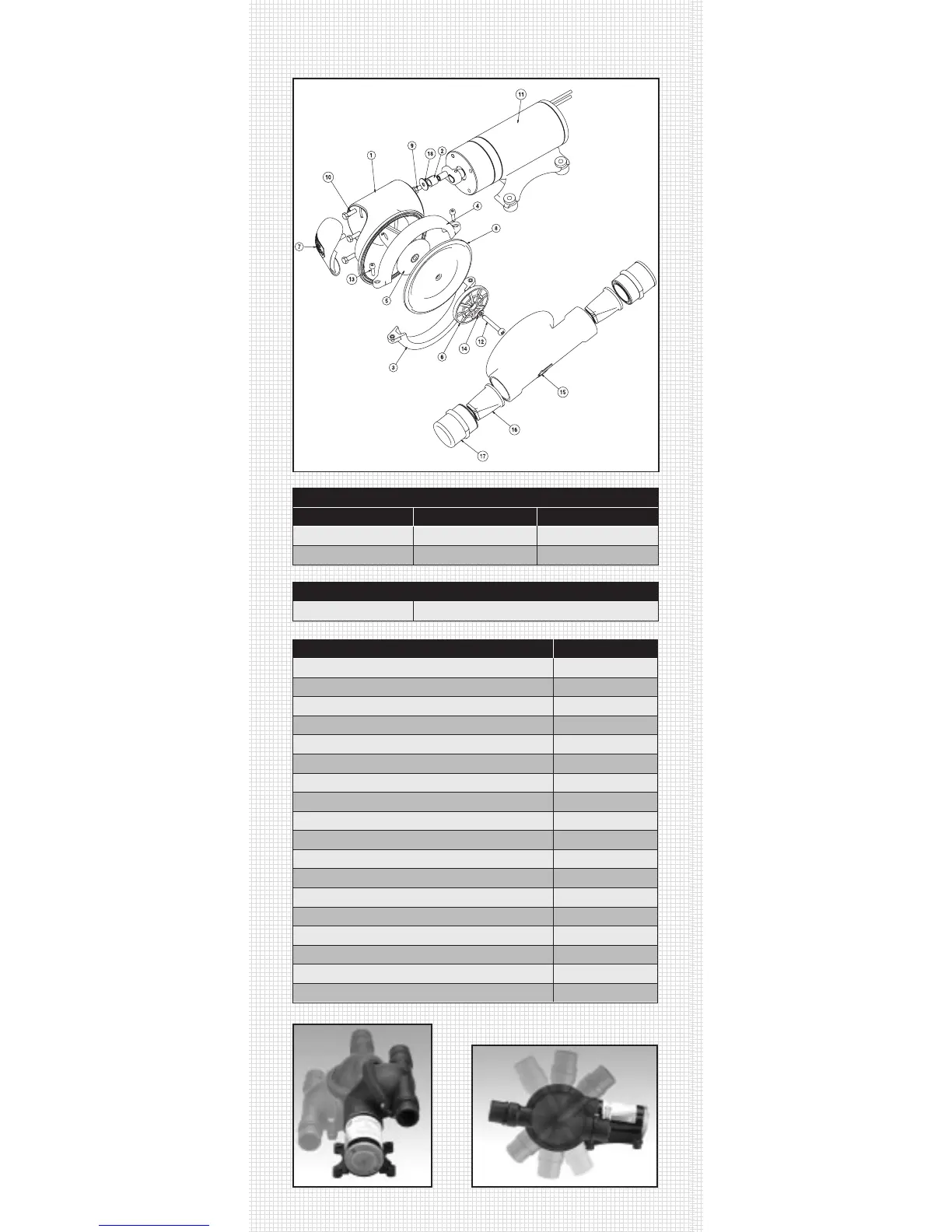

EXPLODED VIEW
Part Numbers
Model Voltage Fuse Sizes
50890-1000 12V 10A
50890-1100 24V 5A
Service Kit (Includes*)
SK890 Service Kit - Waste Pump
Key Description *Quantity in Kit
1 Bracket
2 Bush
3 Clamp Bottom
4 Clamp Top
5 Con Rod
6 Con Rod Plate
7 Cover 1
8 Diaphragm 1
9 Hex Head Screw
10 Hex Head Screw 4
11 Motor Assembly
12 Screw Recessed Pan Head 1
13 Socket Head Screw
14 Washer 1
15 Waste Pump Chamber
16 Waste Pump Joker Valve 2
17 Waste Pump Port 2
18 Washer
