Installation
G
The Jabsco Waste Pump is self priming up to 3m (10ft).
G
Uses multi positional ports for easy mounting of the pump.
G
If mounted vertically the motor should be above the pump head.
G
Use rubber grommets provided to absorb vibration.
G
Plumbing Connections: Use 38mm (1
1
/2") ID, non-collapsible
waste type suction hose.
G
Connect the hose to inlet and outlet of pump using two stainless
steel hose clamps at both ends.
G
All suction connections must be airtight and free of sharp bends
or restrictions.
WARNING: The Discharge thru-hull may be
positioned below the waterline only if the
discharge hose has a vented loop at least
20cm (8") above the waterline at all angles
of heel or trim.
Waste
Pump
Robust Single
Diaphragm Design
Features
G
Flexible installation
G
No filter required
G
Compact and simple design
G
Self-priming to 3m (10ft)
G
12v and 24v variants
G
Dry running capability
G
Connections for 38mm (1
1
/2") ports
G
Up to 19 lpm (5 US gpm) flow
Flow – lpm (US gpm)
Differential Pressure – bar (psi)
Specifications
G
Suction Lift: 3 meters (10ft)
G
Relevant Standards:
G
ISO 8846 MARINE and USCG Regulations for Ignition
Protection
G
ISO 8849 MARINE Bilge Pump Standard
G
Built to ISO 15083 Specification
G
Meets BSEN 50081 (Electro Magnetic Compatibility)

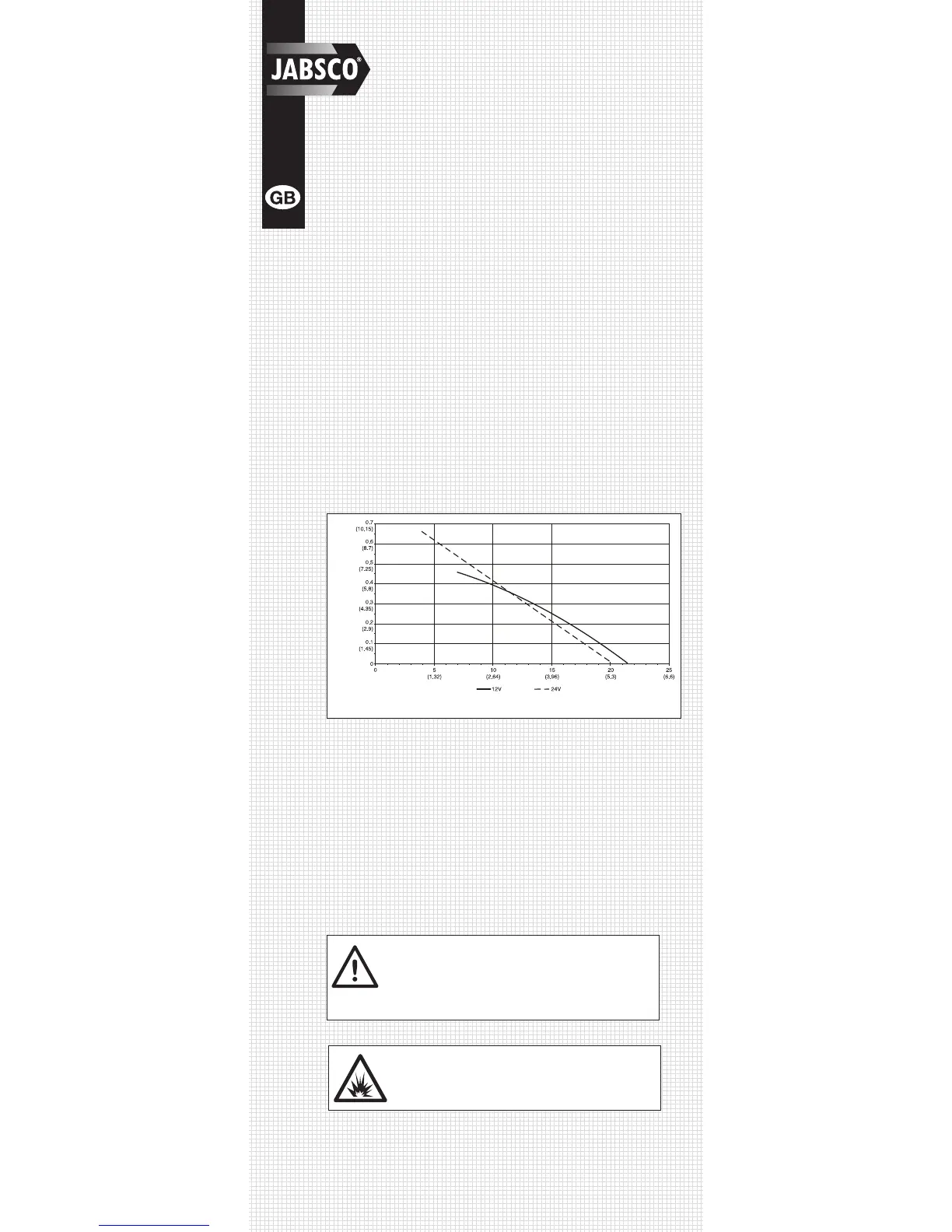

Performance Curve
WARNING: Do not use any Jabsco pump
for petrol, petroleum products or any
products with a flash point below 37°C
(98°F), explosion or death may occur.
Operation
The dc motor is suitable for intermittent duty and should not
be run for more than 30 minutes continuously.
