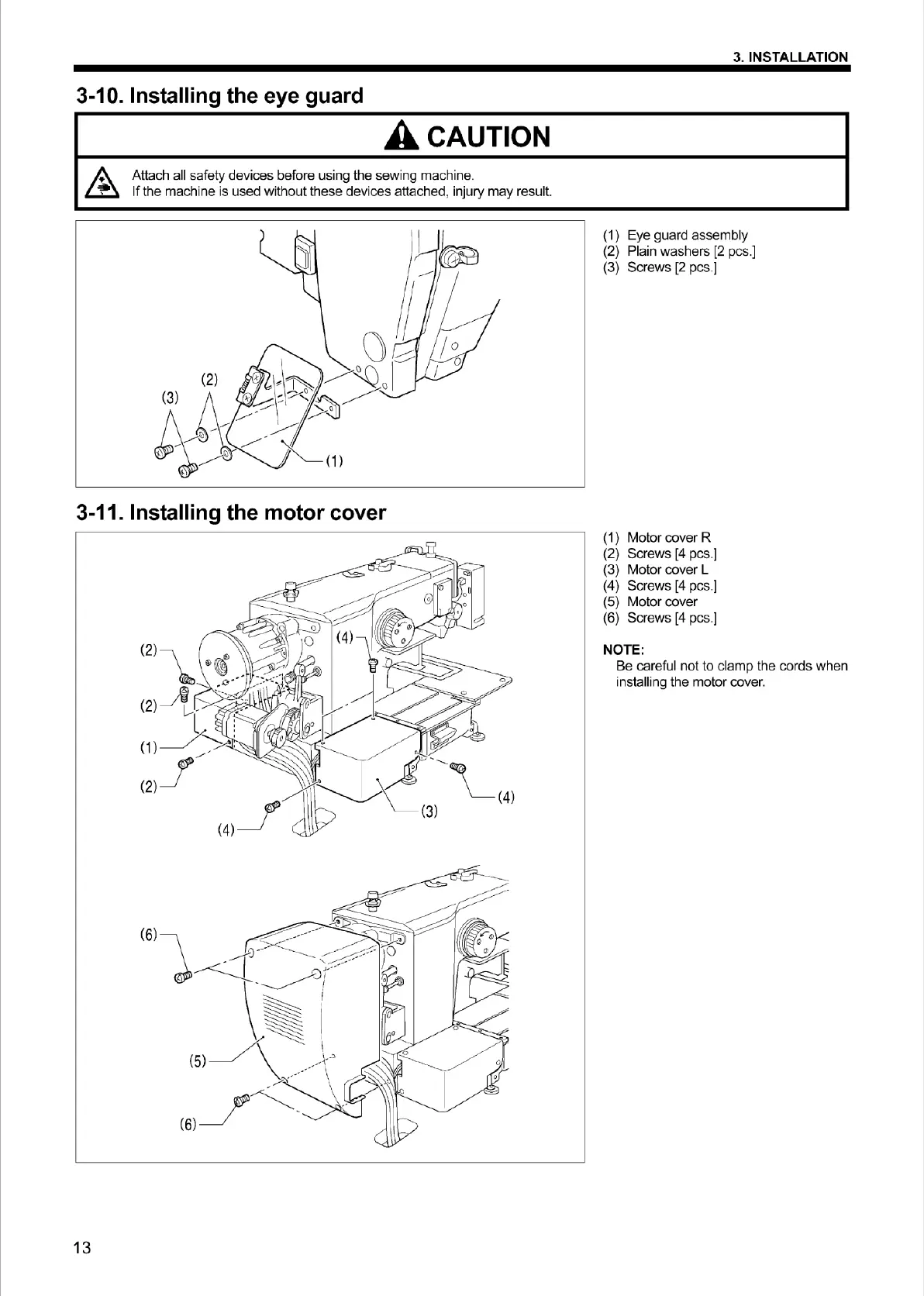

3-10. Installing the eye guard
AcAUTION
Attach all safety devices before using the sewing machine.
If
the machine is used without these devices attached, injury may result.
3-11. Installing the motor cover
13
(2) -
(2) _fl.
(1) -
_,✓
(2)
J;
~\r3
\_(4)
~
\_
(3)
(4)
_/
3. INSTALLATION
(1) Eye guard assembly
(2) Plain washers [2
pcs.]
(3) Scr
ews
[2 pcs.]
( 1 ) Motor cover R
(2) Screws [4 pcs.]
(3) Motor cover L
(4) Screws [4 pcs.]
(5) Motor cover
(6) Screws [4 pcs.]
NOTE:
Be careful
not
to clamp the cor
ds
when
installing the motor cover.
