Other components not shown:
Connector, 1/2”, 90 DEG Plastic 5975-011-45-14
Connector, 3/4”, 45 DEG Plastic 5975-011-47-74
Connector, 1/2”, 45 DEG Plastic 5975-011-45-23
Connector, 1/2”, 90 DEG Metal 5975-111-01-00
Grommet, 1/2” OD x 3/8” ID 5325-011-46-73
Grommet, 7/8” Split 5975-200-40-00
Plug 5975-011-47-81
Decal, Delime/Normal 9905-011-34-96
Decal, L1, L2, L3 9905-101-12-66
Decal, Copper Conductors 9905-011-47-35
Decal, Ground 9905-011-86-86

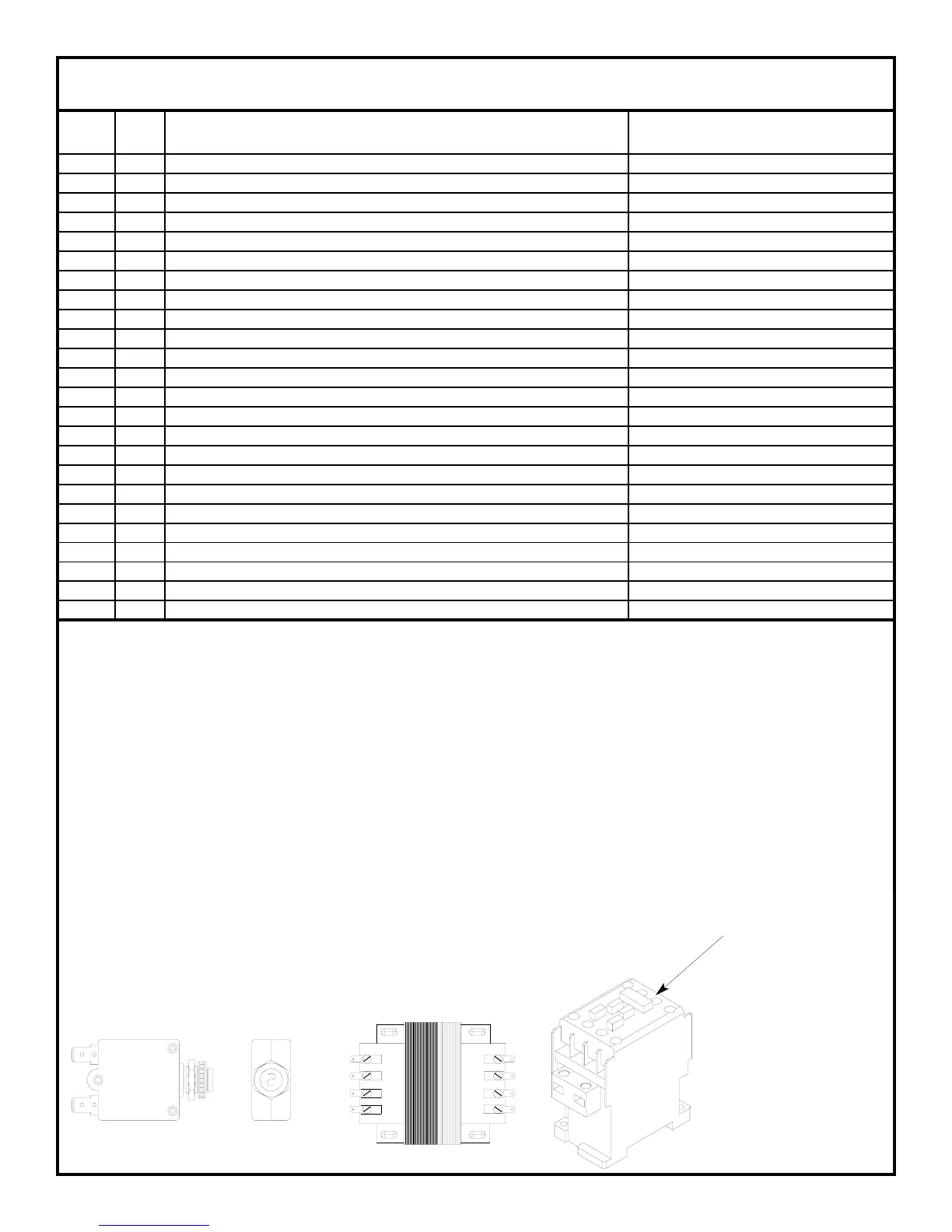

SIDE MOUNTED CONTROL BOX ASSEMBLY (CONTINUED)
11
ITEM QTY DESCRIPTION Mfg. No.
1 1 Power Switch 5930-301-21-18
2 1 Cycle Counter 5990-111-47-42
3 1 Normal/Delime Switch 5930-301-46-00
4 1 Power Light 5945-504-06-18
5 1 High Limit Light 5945-504-07-18
6 1 Cycle Light 5945-504-08-18
7 1 Decal, Control Box Cover 9905-021-64-41
8 1 Control Box Cover 5700-031-91-45
9 1 Relay, Top Mount, Control 5945-111-47-51
10 1 Fuse Holder 5920-401-03-14
11 1 Timer 5945-303-31-00
12 2 Contactor, 220V, 4 Pole (1 for Tempstar NB models) 5945-109-01-69
13 1 Liquid Level Control Board 6680-200-08-21
14 2 Screw, 6-32 x 5/8" Long 5305-011-39-85
15 1 Wash Motor Contactor 5945-109-03-69
16 3 Screw, 10-32 x 3/8" Panhead 5305-173-26-00
17 See Below N/A
18 1 3 Pole Terminal Block 5940-011-48-27
19 1 Control Box Weldment 5700-041-47-55
20 See Below N/A
21 See Below N/A
22 9 Screw, 6-32 x 3/8" Long 5305-171-02-00
23 3 Locknut, 10-24 with Nylon Insert 5310-373-01-00
24 1 Ground Lug 5940-200-76-00
To Next Page
