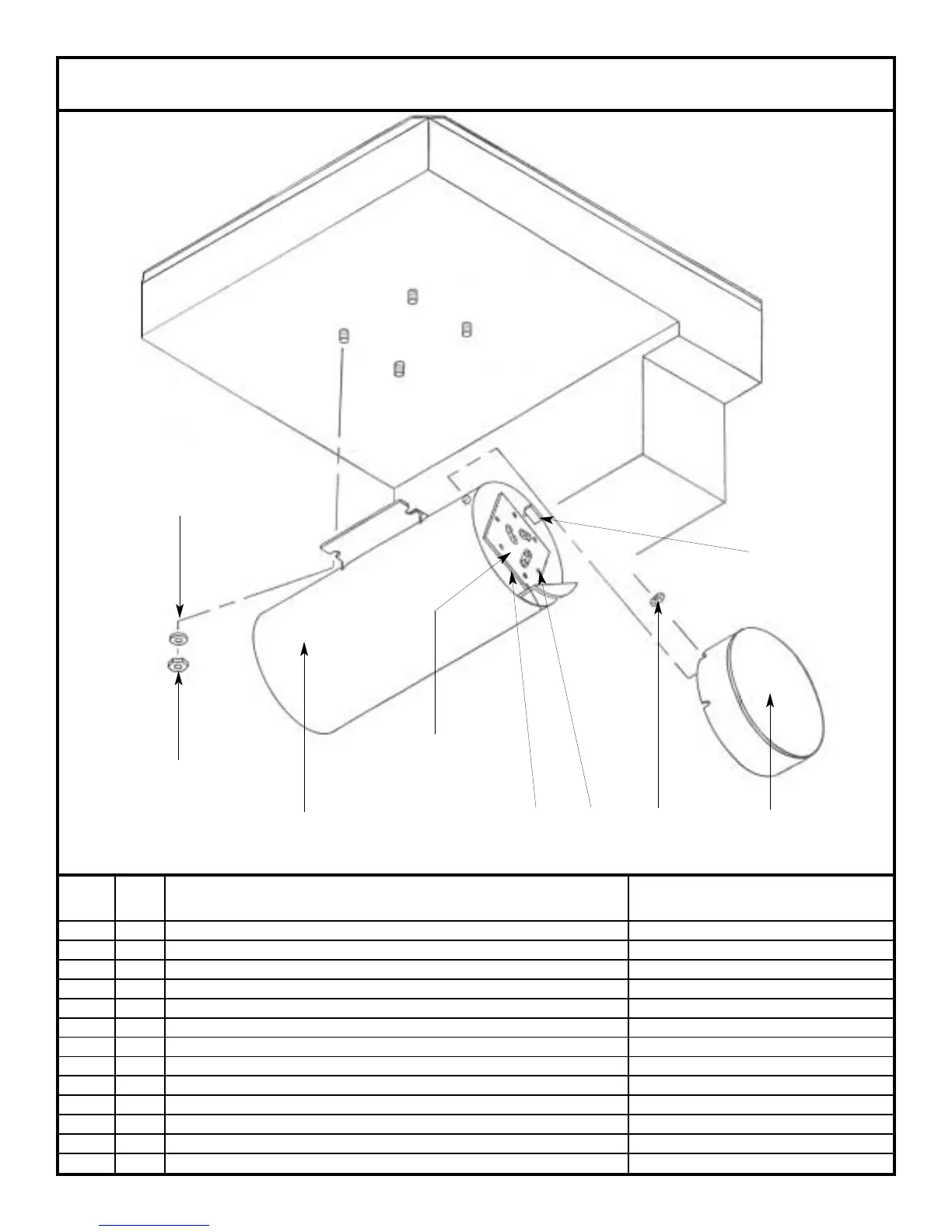

RINSE TANK ASSEMBLY
22
1
2
3
12 7, 11
4, 5, 6, 13
8
9, 10
ITEM QTY DESCRIPTION Mfg. No.
1 4 Locknut, 1/4"-20 with Nylon Insert 5310-374-01-00
2 4 Washer, 1/4" ID, S/S, Flat 5311-174-01-00
3 1 Booster Tank Weldment 5700-001-22-02
4 1 Fitting, 1/4" Imperial Brass 5310-924-02-05
5 1 Thermostat Bracket 5700-011-73-72
6 1 Thermostat, Rinse 5930-121-71-29
7 6 Nut, Hex, 5/16"-18 5310-275-01-00
8 1 Locknut, 10-24 with Nylon Insert 5310-373-01-00
9 1 Decal, Warning - Disconnect Power 9905-100-75-93
10 1 Booster Tank Cover Weldment 5700-001-29-30
11 6 Lock Washer, 5/16", Split 5311-275-01-00
12 1 Gasket, Rinse Heater 5330-200-02-70
13 1 Decal, Thermostat Regulating 9905-011-84-31
SEE PAGE ENTITLED
“WASH/RINSE HEATERS”.
