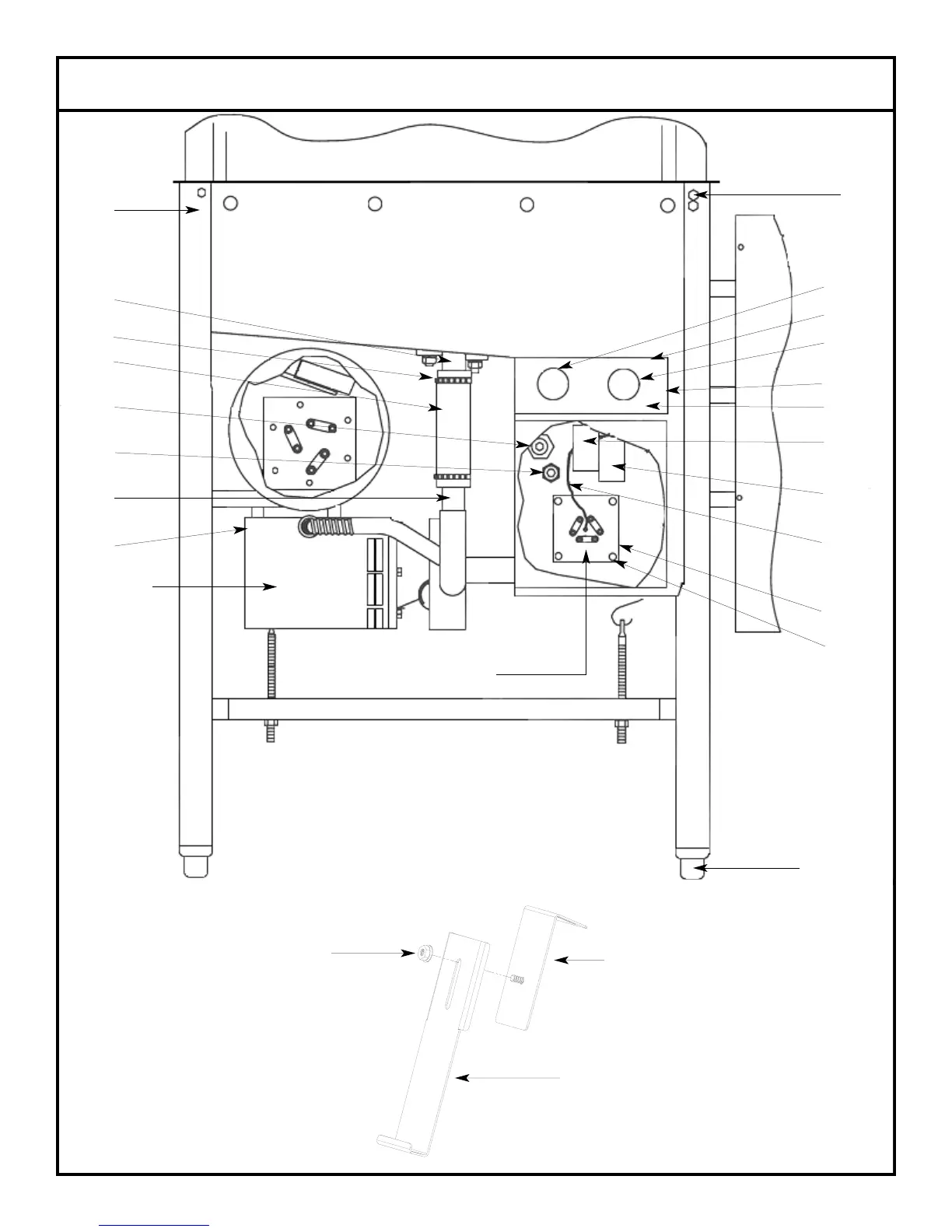

Jackson MSC TEMPSTAR - TUB FRONT ASSEMBLY

TUB FRONT ASSEMBLY
20
1, 2, 3
4
5
7
24
25
*26
6
SEE PAGE
ENTITLED
“WASH
MOTORS”.
12
8
9
11
10
*27
20
13, 14
16, 18
14, 15
17, 18
19
21, 22
SEE PAGE ENTITLED
“WASH/RINSE HEATERS”.
23
* Represents an
item not shown.
Pump Support Bracket Complete Assembly
5700-002-00-46.
Nut, 1/4”-20 Serrated Nut
5310-011-66-49
Pump Support Main Bracket Weldment
5700-021-66-47
Pump Support Adjustable Bracket
5700-002-20-41
