Other components not shown:
Connector, 1/2”, 90 DEG Plastic 5975-011-45-14
Connector, 3/4”, 45 DEG Plastic 5975-011-47-74
Connector, 1/2”, 45 DEG Plastic 5975-011-45-23
Connector, 1/2”, 90 DEG Metal 5975-111-01-00
Grommet, 1/2” OD x 3/8” ID 5325-011-46-73
Grommet, 7/8” Split 5975-200-40-00
Plug, 1/2” 5975-011-47-81
Decal, Delime/Normal 9905-011-34-96
Decal, L1, L2, L3 9905-101-12-66
Decal, Copper Conductors 9905-011-47-35
Decal, Ground 9905-011-86-86

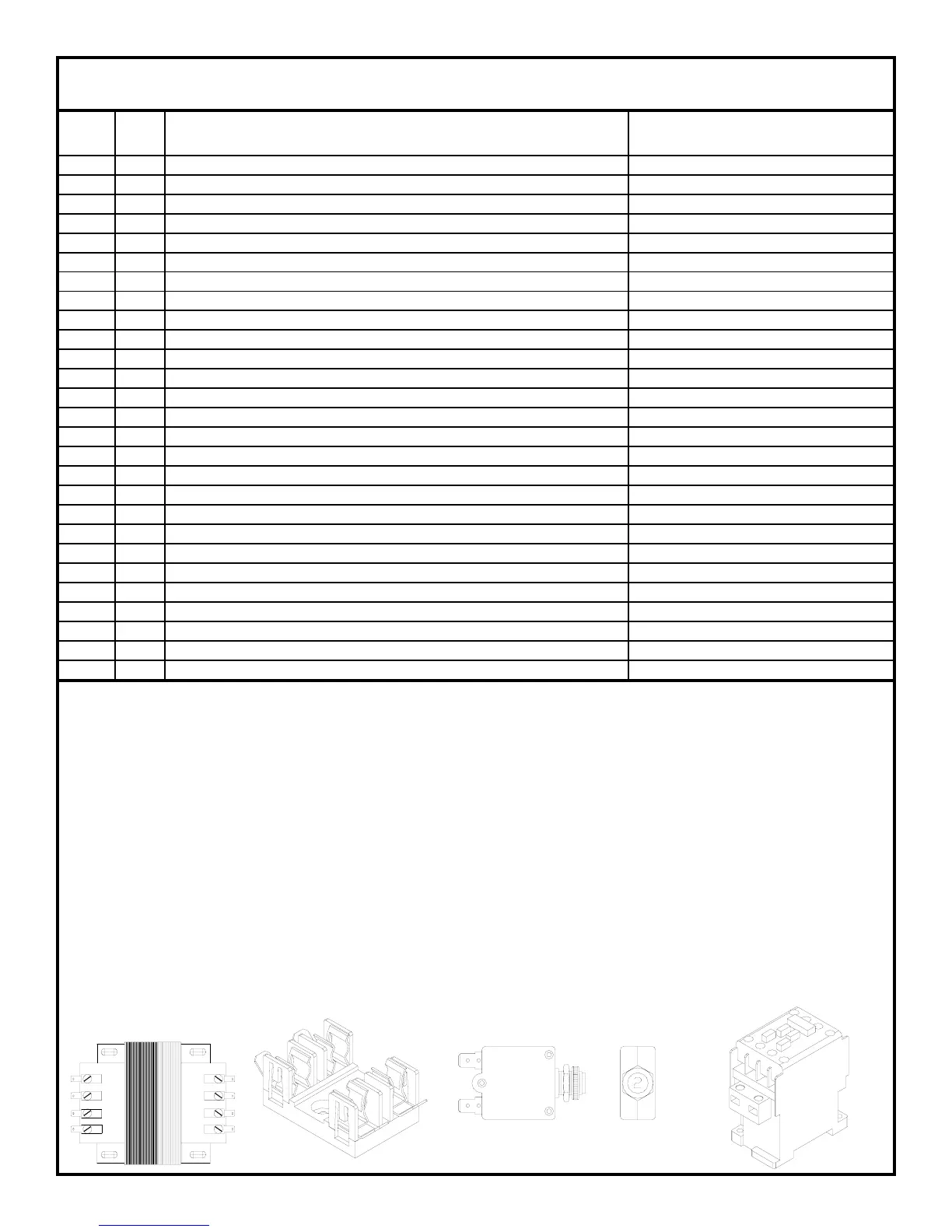

SDS SIDE MOUNTED CONTROL BOX ASSEMBLY (CONTINUED)
15
ITEM QTY DESCRIPTION Mfg. No.
1 1 Control Box Cover Weldment 5700-021-60-43
2 1 Decal, Control Box Cover 9905-021-50-13
3 1 Light, Amber 5945-504-06-18
4 1 Light, Green 5945-504-08-18
5 1 Light, Red 5945-504-07-18
6 1 Manual Wash Switch 5930-301-46-00
7 2 Screw, 4-40 x 1/4" Phillips Panhead 5305-011-36-92
8 1 Cycle Counter 5990-111-47-42
9 1 Wash Switch 5930-301-21-18
10 4 Screw, 10-32 x 3/8" Phillips Panhead 5305-173-04-00
11
1 Cover, Electrical Box Panel 5700-011-49-23
12
1 Frame, Electrical Box Cover Panel 5700-011-49-22
13
1 Board, PC Rinse 6680-111-50-55
14
1 Board, PC Detergent 6680-111-50-54
15 8 Screw, 6-32 x 3/8" Long 5305-171-02-00
16
1 Bracket, PC Board 5700-011-49-24
17
4 Lockwasher, Internal Tooth #10 5311-011-59-51
18 4 Locknut, 10-24 with Nylon Insert 5310-373-01-00
19 1 Control Box Weldment 5700-041-47-55
20 2 Relay, Top Mount, Control 5945-111-47-51
21 2 Contactor, 220V, 4 Pole (1 for Tempstar NB models) 5945-109-01-69
22 1 Timer 5945-303-31-00
23 1 Liquid Level Control Board 6680-200-08-21
24 1 Contactor, 220V, 2 Pole 5945-109-03-69
25 1 Transformer 5950-400-01-35
26 1 Ground Lug 5940-200-76-00
27 1 3 Pole Terminal Block 5940-011-48-27
