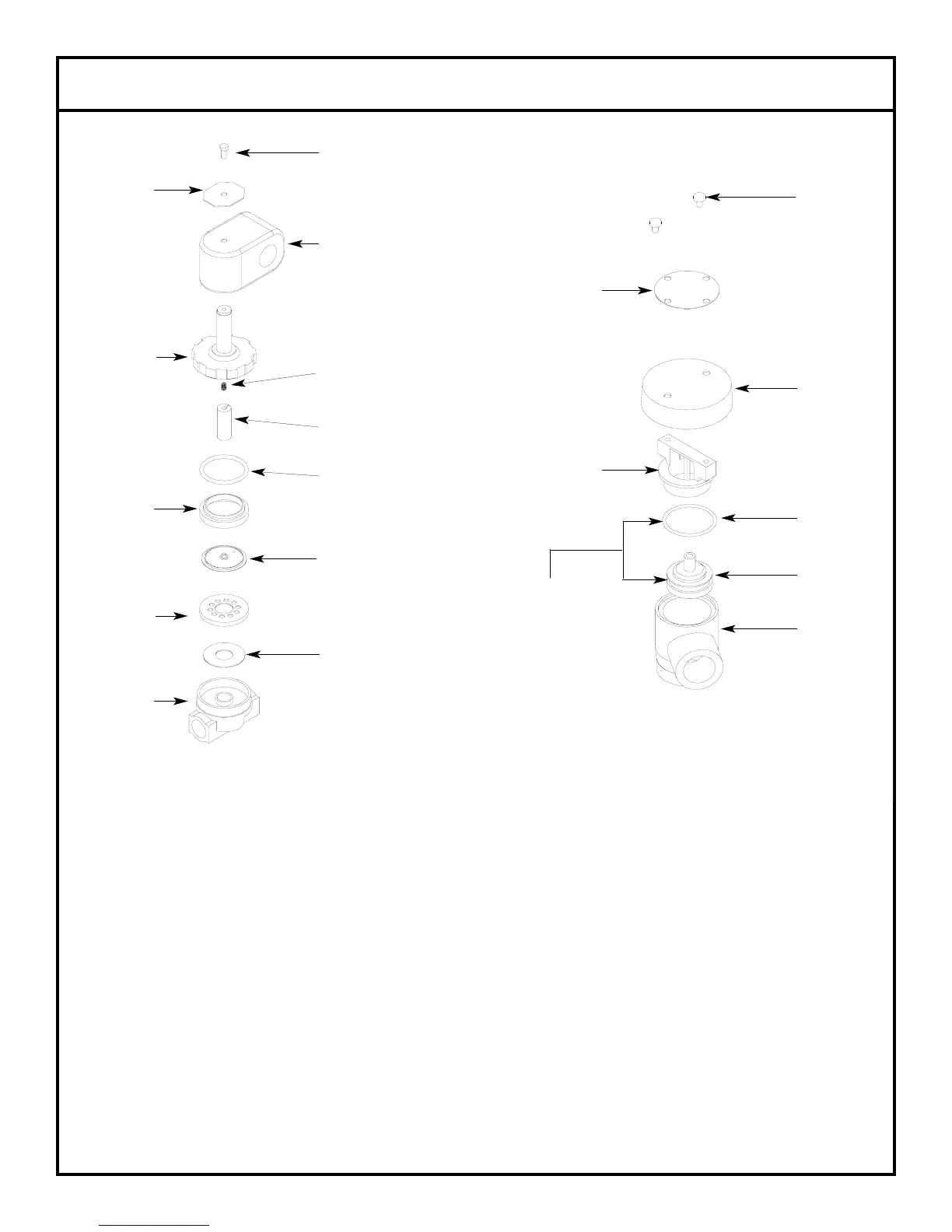

3/4” SOLENOID VALVE & 3/4” NPT VACUUM BREAKER REPAIR PARTS KITS
31
Screw
Data Plate
Coil & Housing
Valve Bonnet
Spring
4810-200-04-18
Plunger
4810-200-04-18
Spring position is moved
for clarity.
Goes below the plunger.
O-Ring
4810-100-10-18
Diaphragm
Retainer
Diaphragm
4810-100-10-18
Screen
Retainer
Mesh Screen
Valve Body
Complete 220 Volt Solenoid Valve Assembly
Mfg. No.: 4810-100-03-18
Coil & Housing only
Mfg. No.: 4810-200-02-18
Complete Vacuum Breaker Assembly
Mfg. No.: 4820-300-08-00
COMPONENTS
OF REPAIR KIT
4820-001-60-57
Cap Screw
Data Plate
Cap
O-Ring
Plunger
Body
Cap Retainer
