GB-12
JACOBSEN AR3
NARROW WIDTH OF CUT FIELD KIT
FITTING INSTRUCTIONS
5 CENTRE LIFT ARM
5.4 CONTINUED

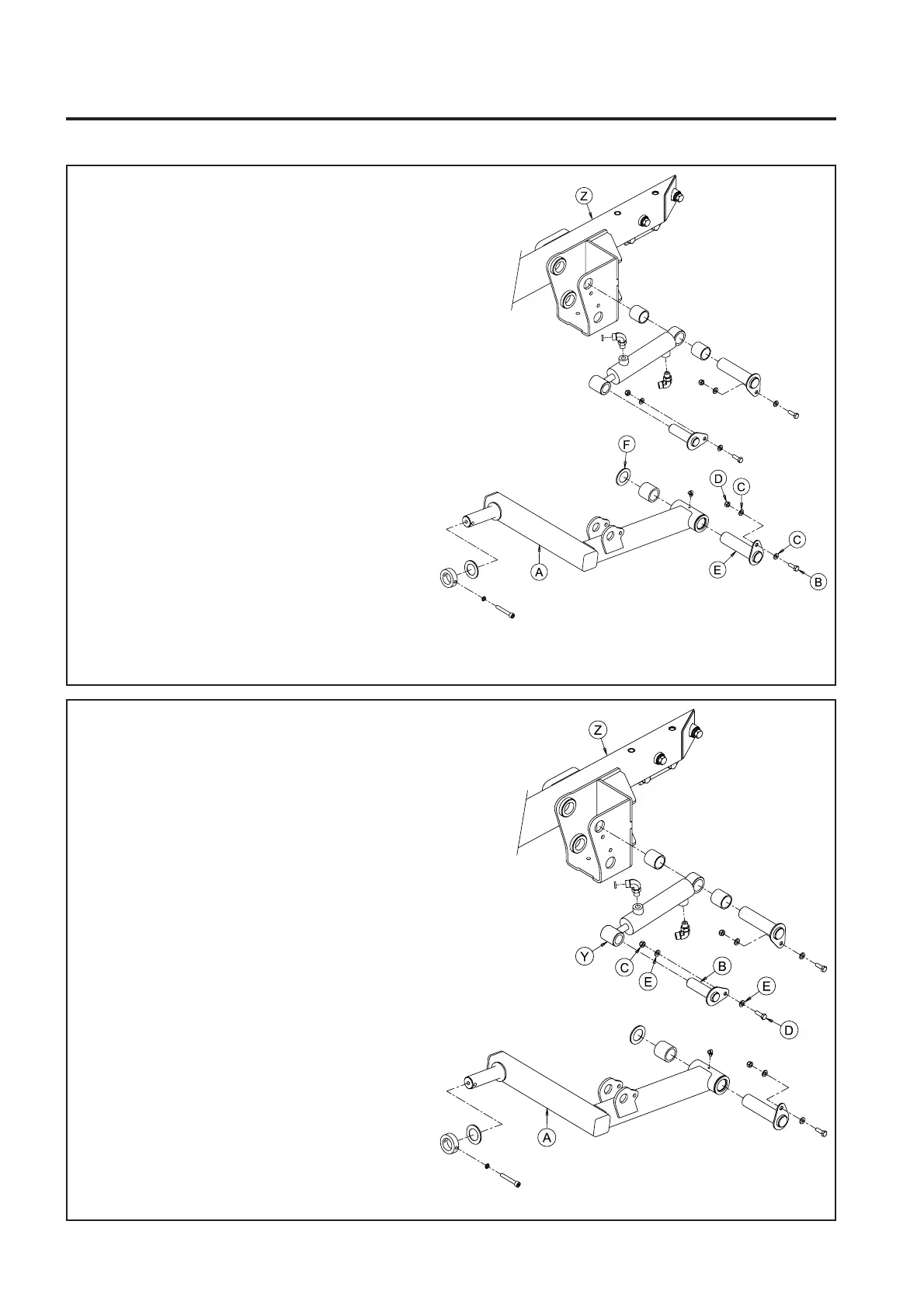

8. Reassemble hardware (B, C and D) (removed in
Step 5.3.1) to Lift Arm Pivot Pin (E) and
Mainframe (Z).
5.5 RECONNECT LIFT RAM TO LIFT ARM
1. Align holes in Lift Ram (Y) and Lift Arm (A).
2. Clean surface of Ram Pin (B) removed in Step
5.2.1) to remove old grease residue.
3. Smear surface of Ram Pin (B) with Shell Darina
R2 grease (or equivalent)
Note - Ram Pin (B) is assembled so that the
flange plate is on the outside of the Lift Arm
(A).
4. Align holes in Ram Pin (B) with hole in Lift Arm
(A) Plate.
5. Reassemble hardware (C, D and E) removed in
Step 5.2.1 to Ram Pin (B) and Lift Arm (A).
