Jacobsen AR3 Fitting Instructions

GB-7
JACOBSEN AR3
NARROW WIDTH OF CUT FIELD KIT
FITTING INSTRUCTIONS

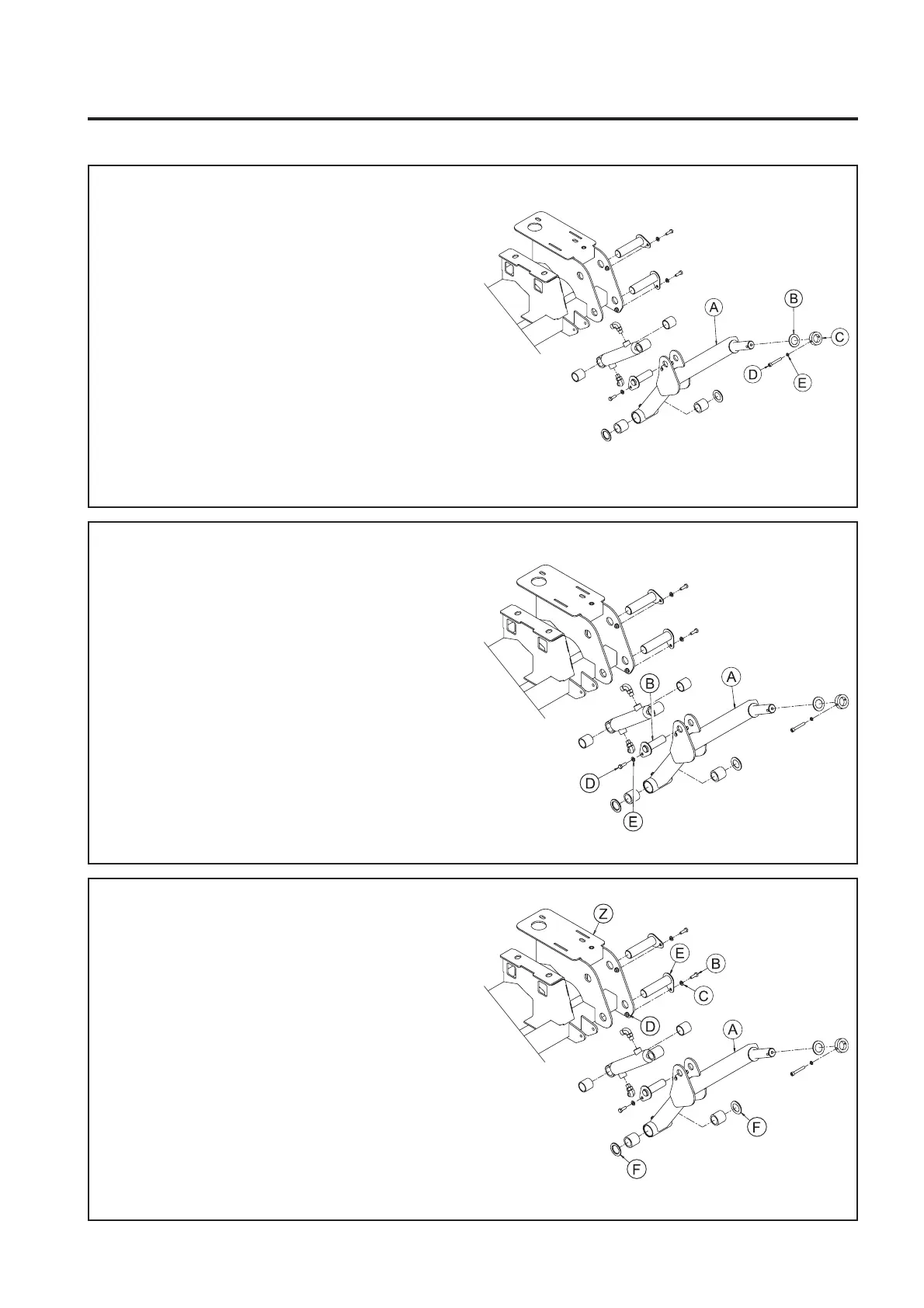

4.1 REMOVE CUTTING UNIT FROM LIFT ARM
1. Remove cutting unit drive motor from cutting
unit.
2. Remove M8 x 55 Cap Screw (D), M8
Lockwasher (E) and Clamp Collar (C) from Lift
Arm (A).
3. Detach Cutting Unit from Lift Arm (A).
4. Remove Thrust Washer (B) from Lift Arm (A)
Pivot Shaft.
5. Retain items (B), (C), (D) and (E) for future use.
4 FRONT LH LIFT ARM
4.2 DISCONNECT LIFT RAM FROM LIFT ARM
1. Remove Ram Pin (B) from Lift Arm (A).
2. Retain Ram Pin (B) and all hardware (D, E and
Nyloc Nut) for future use.
4.3 REMOVE LIFT ARM FROM FRONT AXLE
1. Remove M8 x 25 Hex Head Screw (B), M8
Plain Washers (C) and M8 Nyloc Nut (D) from
Lift Arm Pivot Pin (E). Retain for future use.
2. Remove Lift Arm Pivot Pin (E) from Front Axle
(Z) / Lift Arm (A). Retain for future use.
3. Remove Lift Arm (A) from Front Axle (Z). Retain
Nylon Washers (F) for future use.
