Jacobsen Eclipse 118 63313 - Page 132

84
> Change from previous revision
1
2
3
3
4
21
5
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
22
18
18
19
20
4170321
ECLIPSE

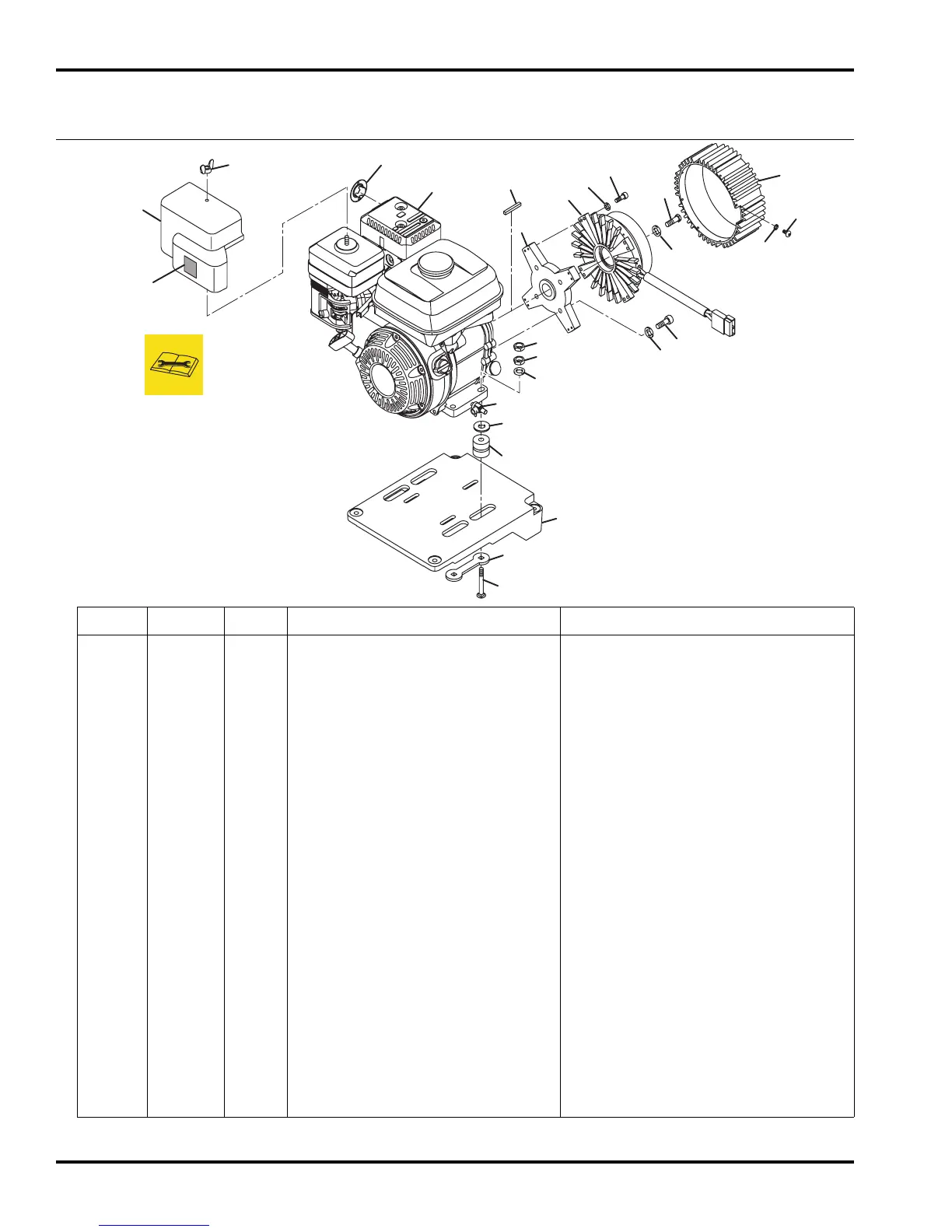

19.1 Gen-Set Power Module
Serial No. 63300 - All
Serial No. 63301 - All
Serial No. 63302 - All
Serial No. 63303 - All
Serial No. 63304 - All
Serial No. 63305 - All
Item Part No. Qty. Description Serial Numbers/Notes
1
443106 4 Nut, 5/16-18 Hex
2 441687 4 Carriage Bolt, 5/16-18 x 3”
3 503532 1 Engine, 4HP Honda
4 320774 1 • Key, 3/16 x1-1/2” Square
5 446136 5 Lockwasher, 5/16 Heavy
6 4165761 2 Plate, Engine Mount
7 4166120 1 Generator, 1kW
8 450504 8 Screw, M3-.5 x 6 mm Pan Head
9 434060 4 Screw, 5/16-24 x 7/8” Socket Hd
10 450697 8 Screw, M5-.8 x 16 mm Socket Hd
11 4145785 1 Cover, Throttle
12 4163760 4 Iso-Mount
13 REF 1 Power Module Mounting Plate
14 455043 4 Flat Washer, 3/8
15 800646 1 Screw, 5/16-24 x 1-1/4 Socket Head
16 450409 8 Lockwasher, M5
17 450407 8 Lockwasher, M3
18 4170321 1 Decal, Maintenance
19 4170500 1 Trim Muffler
20 4172080 1 Valve, Oil Drain
21 453009 4 Flat Washer, 5/16
22 443806 4 Nut, 5/16-18 Hex Jam
