ECLIPSE

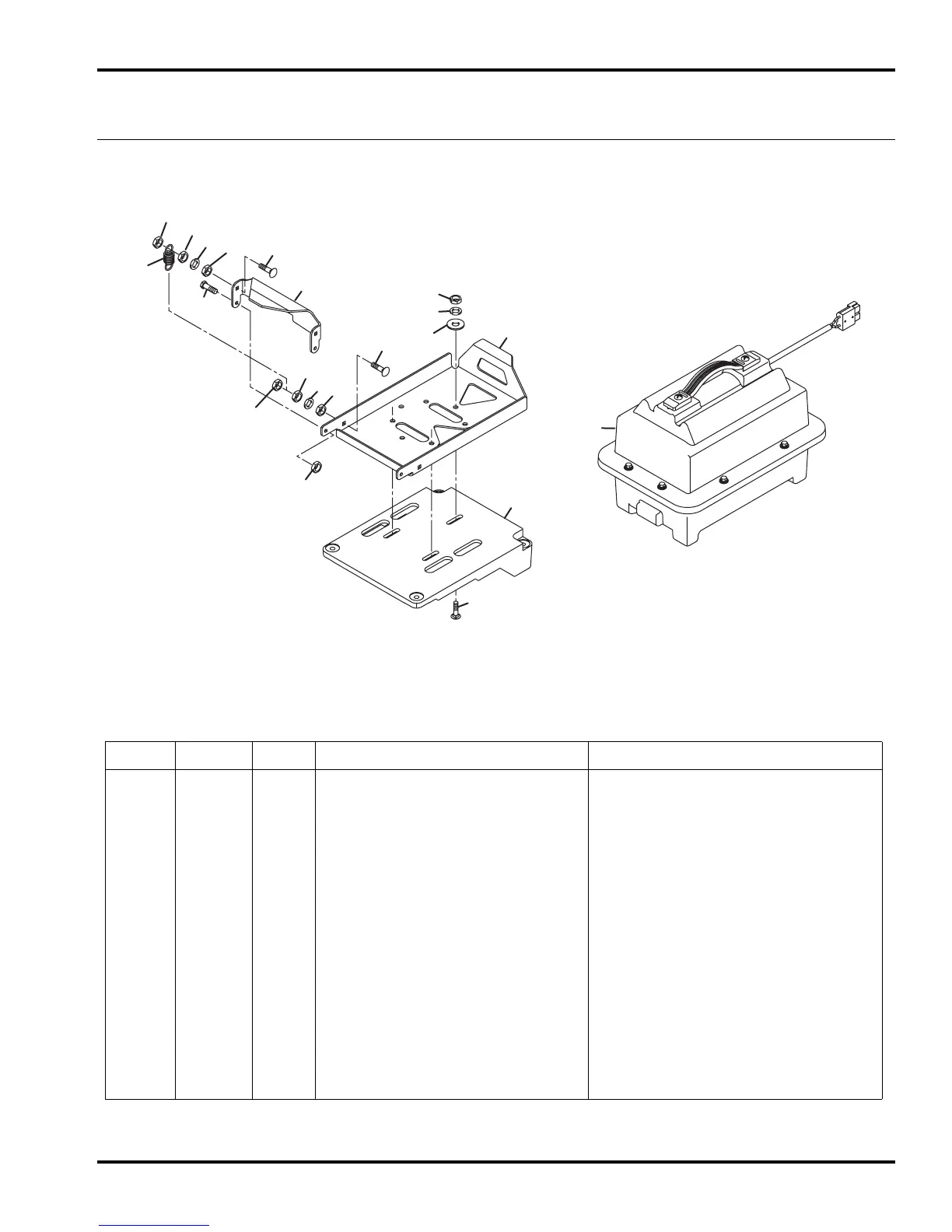

20.1 Battery Power Module
Serial No. 63306 - All
Serial No. 63311 - All
Serial No. 63312 - All
Serial No. 63313 - All
Serial No. 63314 - All
Serial No. 63315 - All
Item Part No. Qty. Description Serial Numbers/Notes
1
2809837 2 Spring, Extension
2 444708 6 Locknut, 1/4-20 Center
3 443102 8 Nut, 1/4-20 Hex
4 446130 4 Lockwasher, 1/4 Heavy
5 441604 4 Carriage Bolt, 1/4-20 x 1”
6 400108 2 Screw, 1/4-20 x 3/4 Hex Head
7 443106 3 Nut, 5/16-18 Hex
8 446136 3 Lockwasher, 5/16 Heavy
9 452006 3 Flat Washer, 5/16
10 440082 3 Carriage Bolt, 5/16-18 x 1”
11 4104080 1 Battery Tray
12 2811206 1 Clip
13 REF 1 Power Module Mount
14 68668 1 Battery Pack See 21.1
15 4140373 1 Decal, Warning
