FAIRWAY MOWER
5.1 Drive Wheel Accessories
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
70087 1
18” Steel Wheel Kit
Optional Accessory
70089 1 17” Steel Wheel Kit Optional Accessory
1
203987 2 • Rim, 18” Used on 70087
1 203992 2 • Rim, 17” Used on 70089
2 310266 20 • Washer, Rim
3 315938 2 • Disc, 18” wheelRim Mounting Used on 70087
3 315939 2 • Disc, 17” Wheel Rim mounting Used on 70089
4 400226 20 • Screw, 5/16-24 x 1” Hex Head
5 444754 20 • Locknut, 5/16-24 Center
6 400436 8 • Screw, 1/2-20 x 7/8” Hex Head
7 446152 8 • Lockwasher, 1/2
70086 1
4 x 20” Semi Pneumatic Wheel Kit
Optional Accessory
70088 1 4 x 17” Semi Pneumatic Wheel Kit Optional Accessory
1
316482 2 • 4 x 20” Wheel Used on 70086
1 344137 2 • 4 x 17” Wheel Used on 70088
2 336054 4 • Disc, 20” Wheel Used on 70086
2 329120 4 • Disc, 17” Wheel Used on 70088
3 400258 12 • Screw, 3/8-16 x 3/4” Hex Head Used on 70086
3 400184 8 • Screw, 5/16-18 x 3/4” Hex Head Used on 70088
4 443110 12 • Nut, 3/8-16 Hex Used on 70086
4 443106 8 • Nut, 5/16-18 Hex Used on 70088
5 446140 12 • Lockwasher, 3/8 Used on 70086
5 446134 8 • Lockwasher, 5/16 Used on 70088
6 400438 8 • Screw, 1/2-20 x 1” Hex Head
7 446152 8 • Lockwasher, 1/2

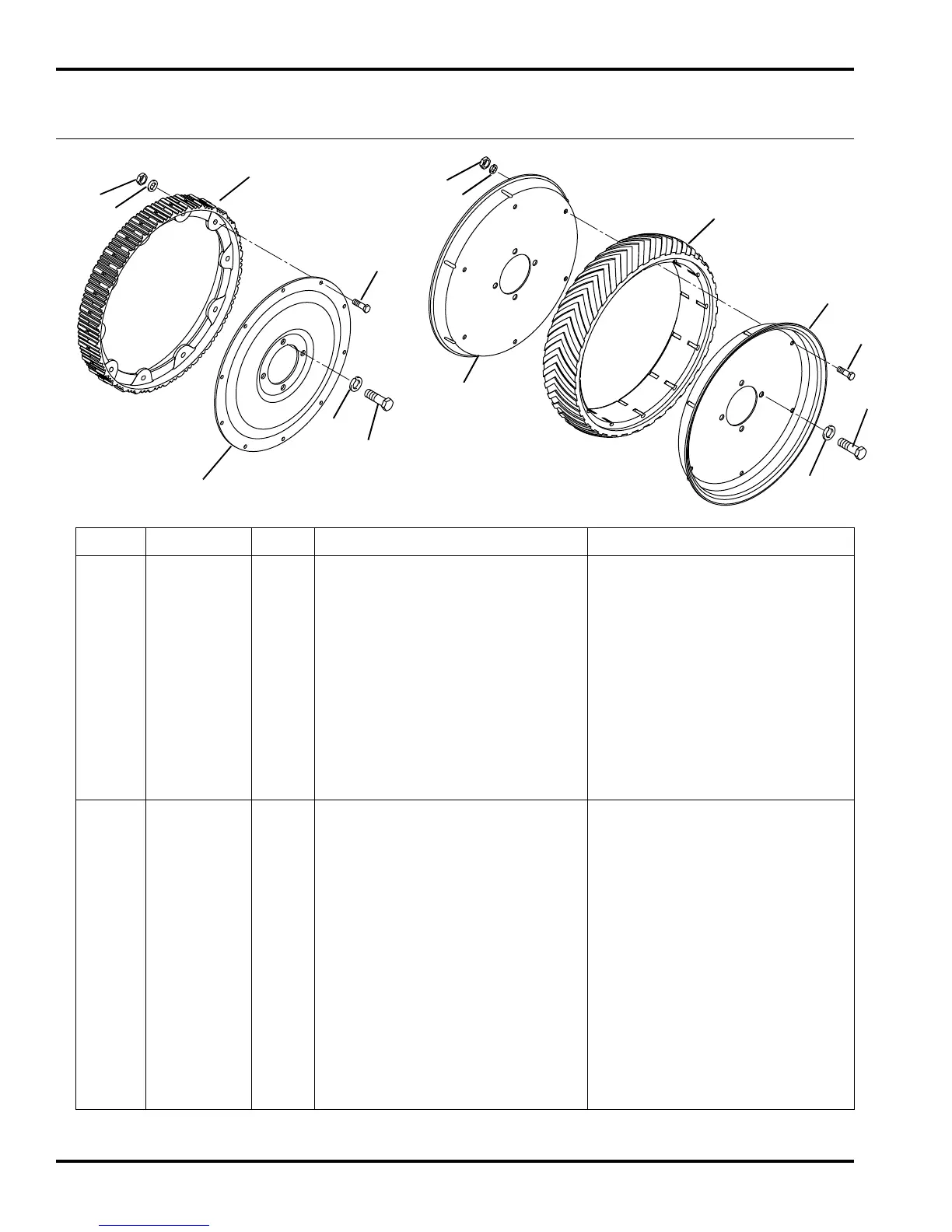

Steel Wheel
Semi Pneumatic Wheel
1
12
2
2
3
3
4
4
5
5
6
6
7
7
To Next Page
