Jacobsen LF 4677 Maintenance Manual

74
> Change from previous revision
1
2
3
4
5
6
9
7
8
10
10
10
10
10
2
7
9
7
9
7
4
7
9
9
Right
Front
Cylinder
Center
Front
Cylinder
Left
Front
Cylinder
P
T1
G
10
9
8
1
2
3
10
9
8
1
2
3
Lift Valve
5 Gang Units
Lift Valve
7 Gang Units
LF 4675 / LF 4677

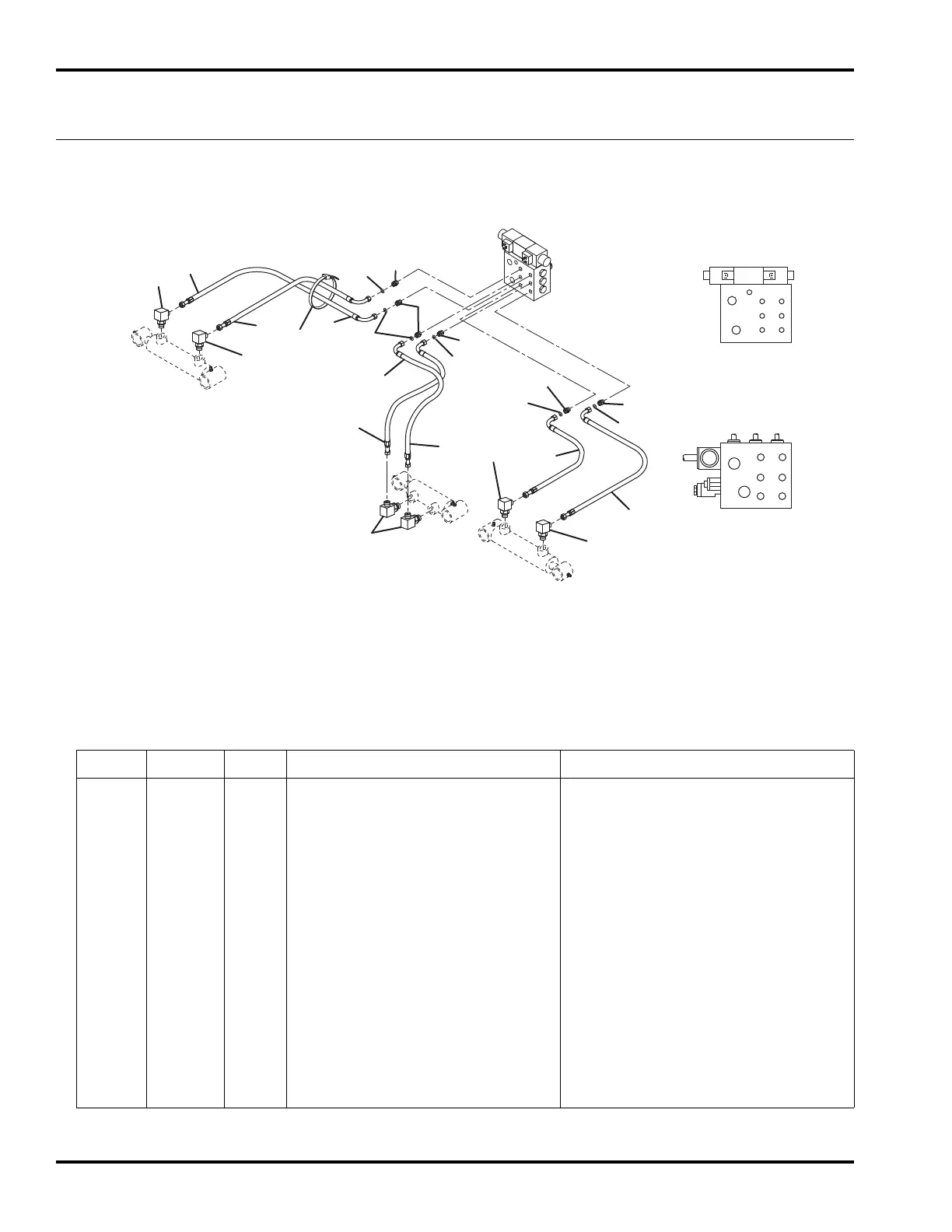

21.1 Front Lift Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003344 1 Hose, Lift Valve to Right Front Lift Valve Port 10
2 1003343 1 Hose, Right Front to Lift Valve Lift Valve Port 1
3 1003345 1 Hose, Center to Lift Valve Lift Valve Port 2
4 1003346 1 Hose, Center to Lift Valve Lift Valve Port 9
5 1003347 1 Hose, Left Front to Lift Valve Lift Valve Port 3
6 1003348 1 Hose, Lift Valve to Left Front Lift Valve Port 8
7 3000953 6 Disk, 0.040 Orifice
8 473142 1 Tie Wrap
9 339979 6 Adaptor, Straight
10 340057 6 Adaptor, 90°
