ENGINE
4241262-Rev B 3-11
3

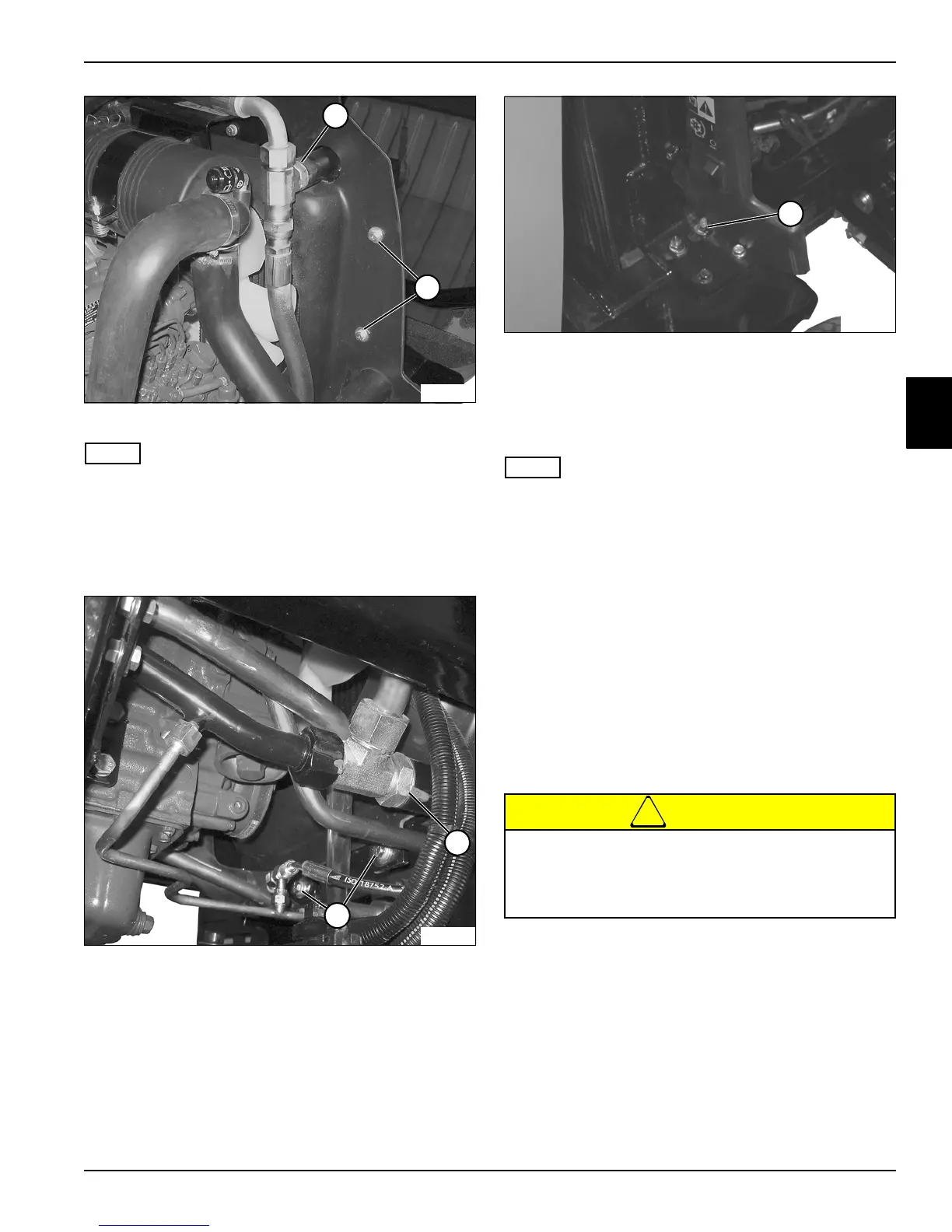

Figure 3-17
NOTE
Plug hoses after disconnecting to prevent loss of
hydraulic oil.
10. Disconnect upper hydraulic hose (8) from
radiator/hydraulic oil cooler.
11. Remove screws (9).
Figure 3-18
12. Disconnect lower hydraulic hose (10) from bottom of
radiator/hydraulic oil cooler.
13. Remove screws (11).
Figure 3-19
14. Remove four radiator/hydraulic cooler mounting
bracket nuts (12).
15. Carefully remove radiator/hydraulic cooler from
mount.
NOTE
Dispose of fluids properly at approved local recycling
centers. If recycling facilities are not available, contact
your local environmental department for correct disposal
procedure of fluids.
Installation
1. With lower radiator hose removed from radiator, flush
inside of radiator with fresh water.
2. Install radiator/hydraulic oil cooler by reversing order
of removal.
3. Fill radiator with clean water and ethylene glycol
based antifreeze mixed for coldest ambient
temperature.
4. Install radiator cap and start engine following
instructions in “Safety and Operation Manual.”
!
CAUTION
5. When engine reaches normal operating temperature,
check and fill coolant overflow reservoir to hot full
level.
8
TN3603
9
10
TN3604
11
Allow the engine coolant to completely cool
before removing the radiator cap. Hot coolant
sprayed from the cap can cause serious personal
injury.
TN3606
12
To Next Page
