Jacobsen LF 570 Technical/Repair Manual

3-16 4241262-Rev B
ENGINE
3

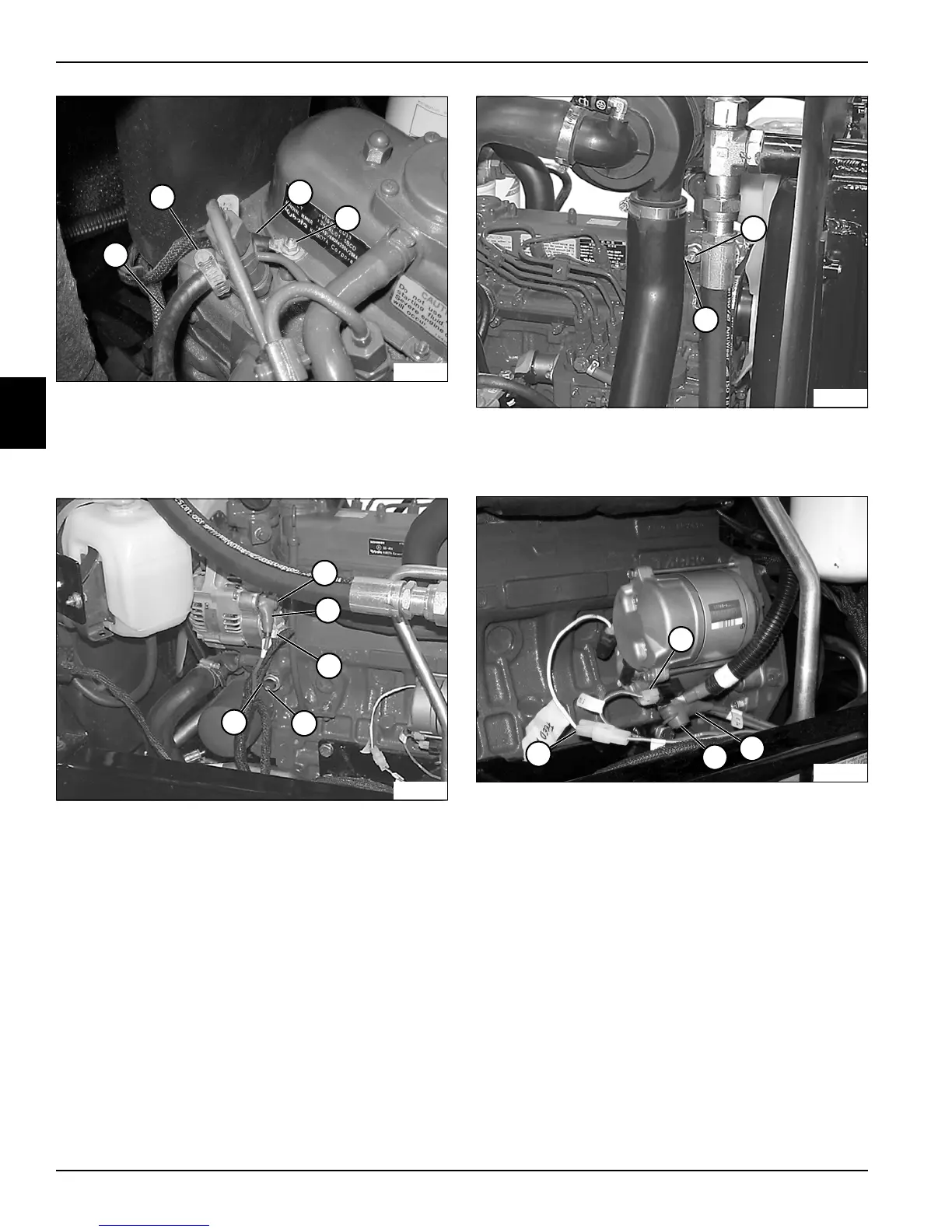

Figure 3-31
14. Unscrew hose clamp (10).
15. Disconnect fuel return line (9).
16. Remove nut (12). Disconnect glow plug wire (11).
Figure 3-32
17. Remove nut (13) and disconnect battery cable (14) at
alternator.
18. Disconnect wire connector (15).
19. Remove screw (16) and disconnect engine oil
pressure switch wire (17).
Figure 3-33
20. Remove nut (18) and disconnect engine temperature
sensor wire (19).
Figure 3-34
21. Remove nut (22) and disconnect starter battery
cable (21).
22. Disconnect two wire connectors (20 and 23).
TN3616
12
10
9
11
TN3626
14
13
16
15
17
TN3627
18
19
TN3615
20
22
23
21
