15
600 Series
Turfcat
Tractors

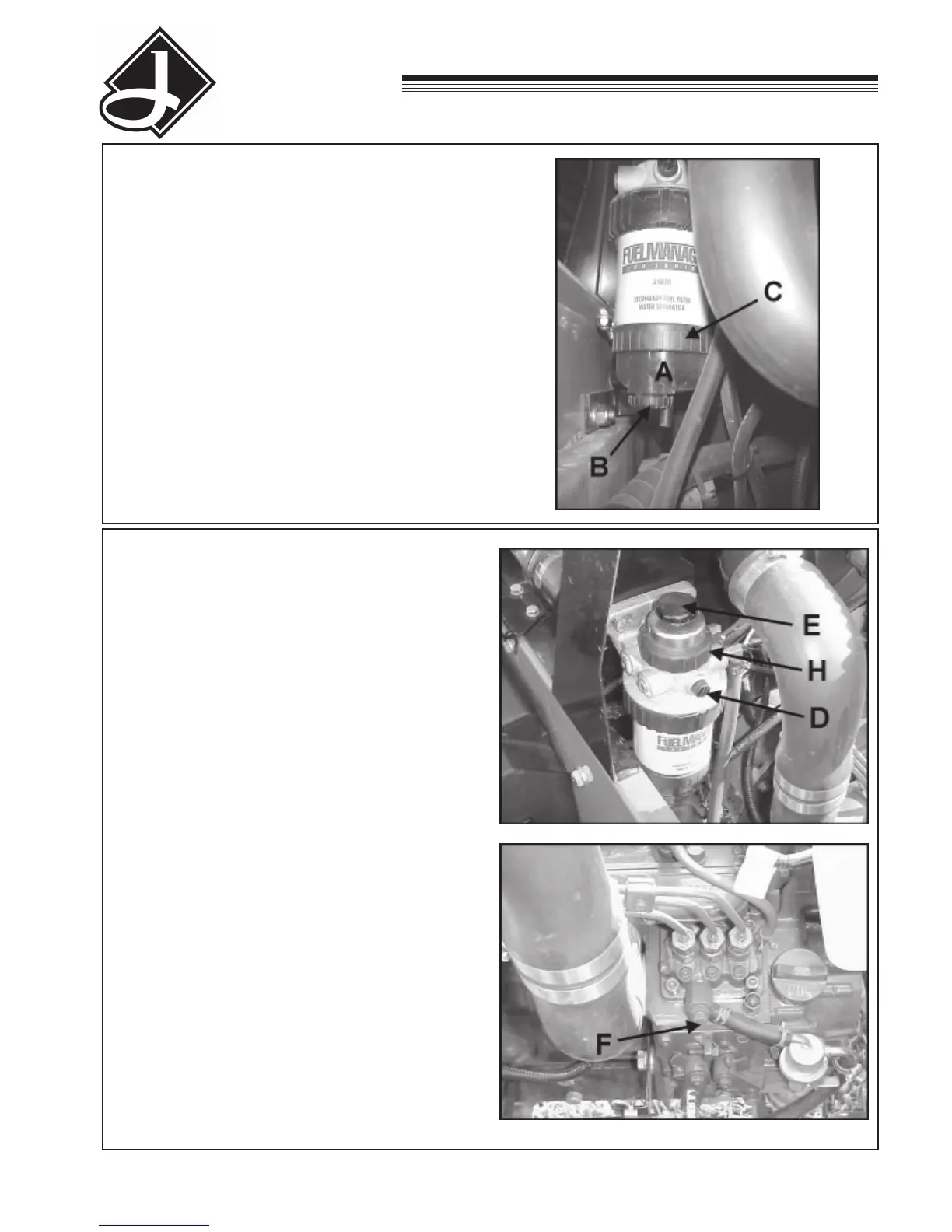

WATER FUEL SEPARATOR
The machine is equipped with a water fuel separator
that traps water in the fuel. If the water is not removed
from the fuel system, extensive damage can occur in
the fuel injection system.
Water will collect at the bottom of the see-through
bowl A and appears a different color than the fuel.
Remove the water as follows:
1. Drain water by opening the self-venting drain valve
B and allowing all water to escape. Re-tighten
drain valve.
2. The entire water separator assembly can be
removed by turning counterclockwise while
gripping black grip C
NOTE: Always bleed the fuel system of air after
removing the water from the separator.
R
BLEEDING AIR FROM FUEL
If any service has been performed on the fuel manager
water separator or fuel filter, first purge air from the fuel
manager (Steps 1-3) otherwise skip to Step 4.
1. Loosen the air vent D one to two turns.
2. Fully depress hand primer pump plunger E until all
air has escaped.
NOTE: Step 2 may take up to 60 pumps.
3. Close the air vent D.
4. Bleed the air in the fuel lines from the fuel
manager to the injector pump by loosening the air
vent bolt F on the injector pump.
5. Set the parking brake.
6. Turn the keyswitch, cranking the engine until all
air has escaped. Turn keyswitch to the off
position.
7. Tighten the air vent bolt F.
HAND PRIMER PUMP
The hand primer pump is used to purge air from the
fuel system. The entire pump assembly is replaceable
if necessary. See parts section for service parts.
1. Remove the small black retaining ring H carefully
as it is spring loaded.
2. Remove hand pump components and replace with
new components
MAINTENANCE
