TURFCAT T628D
Item Part No. Qty. Description Serial Numbers/Notes
1
2721668 2 Caster Wheel Assemblies See 41.1
2 400330 8 Screw, 7/16-14 x 3/4” Hex Head
3 446148 8 Lockwasher, 7/16
4 46335 5 Shaft, Roller
5 64139-08 6 Screw, 5/16-18 x 3/4” Flange Head
6 2198153 7 Roller, 3” Anti Scalp 60” Rear Discharge Decks
6 2198153 8 Roller, 3” Anti Scalp 72” Rear Discharge Decks
7 64141-6 6 Nut, 5/16-18 Whiz Lock Flange
8 146067 1 Shaft, Roller 60” Rear Discharge Decks
8 2196190 1 Shaft, Roller 72” Rear Discharge Decks
9 142088.7 4 Bracket, Roller
10 361619 8 Screw, M10-1.5 x 30 mm Hex Head
11 64237-03 8 Nut, M10-1.5 Nylock Hex

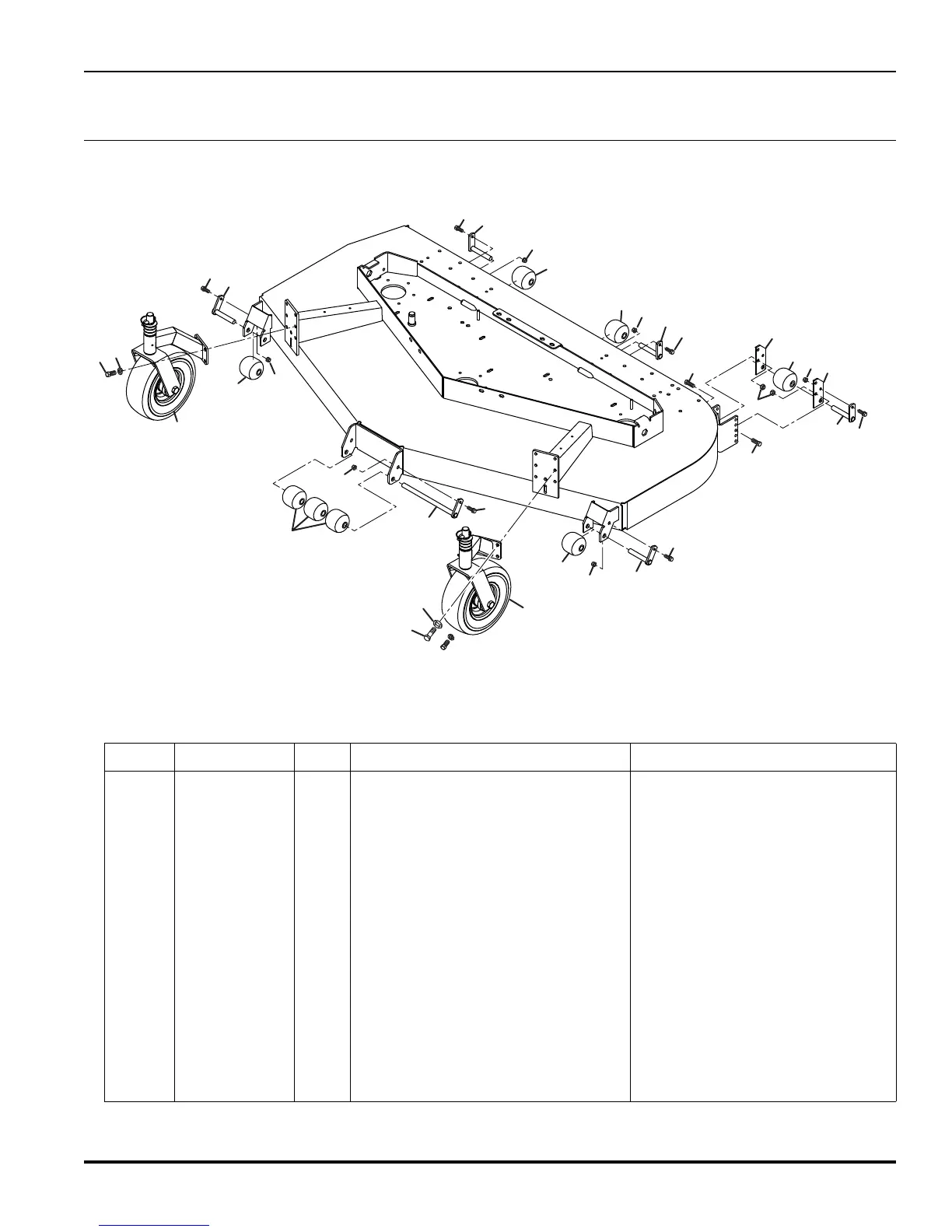

40.1 Caster Wheels and Rollers
Rear Discharge Decks
Serial No. 956023 - All
Serial No. 957234 - All
