Jacobsen Turfcat T628D Parts & Maintenance Manual

104
> Change from previous revision
1
1
2
2
3
3
4
4
4
4
5
5
5
5
5
5
6
6
6
6
6
6
7
7
7
7
7
7
8
8
9
9
9
9
10
10
11
11
11
10
10
TURFCAT T628D

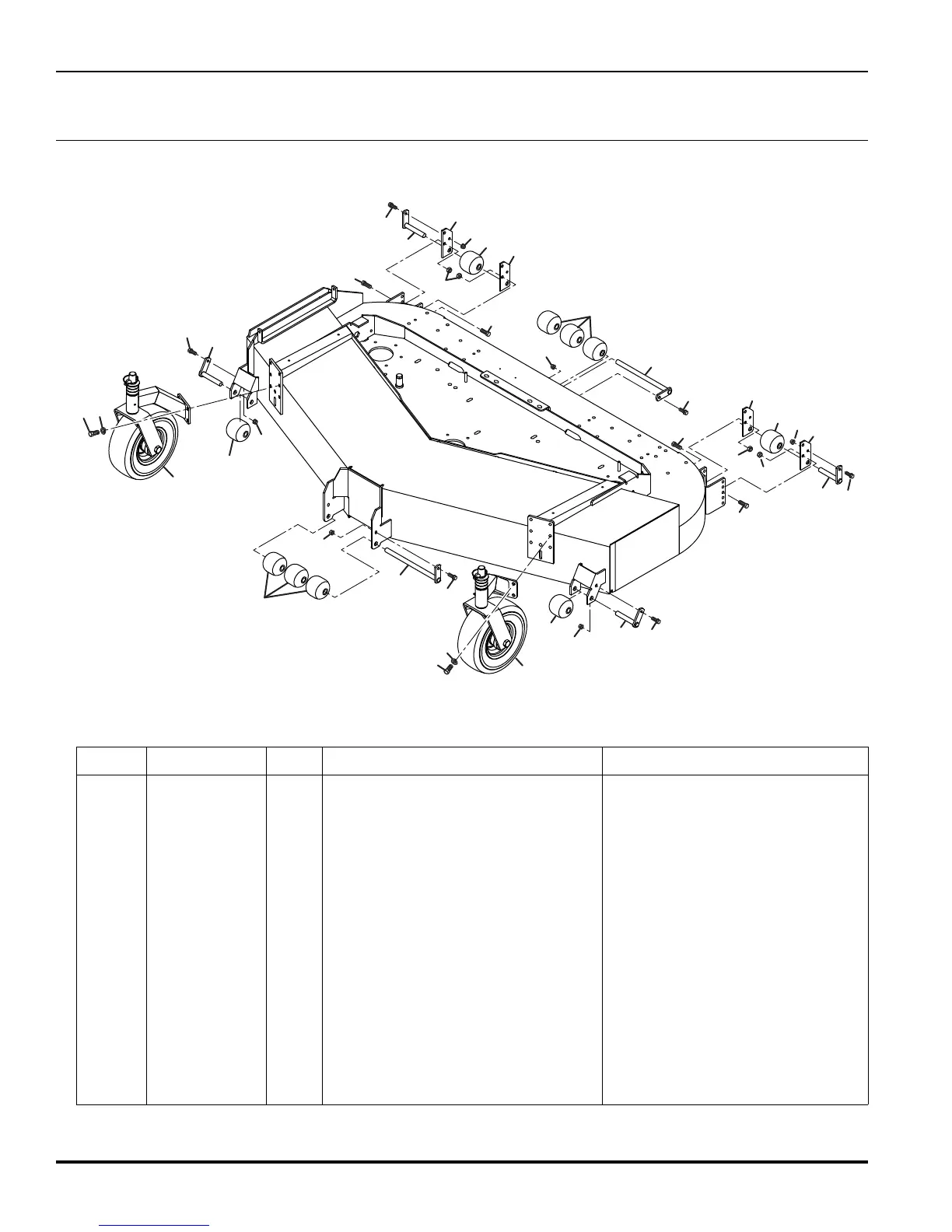

39.1 Caster Wheels and Rollers
Side Discharge Decks
Serial No. 956314 - All
Serial No. 957233 - All
Item Part No. Qty. Description Serial Numbers/Notes
1
2721668 2 Caster Wheel Assemblies See 41.1
2 400330 8 Screw, 7/16-14 x 3/4” Hex Head
3 446148 8 Lockwasher, 7/16
4 46335 4 Shaft, Roller
5 64139-08 6 Screw, 5/16-18 x 3/4” Flange Head
6 2198153 10 Roller, 3” Anti Scalp
7 64141-6 6 Nut, 5/16-18 Whiz Lock Flange
8 2196190 2 Shaft, Roller
9 142088.7 4 Bracket, Roller
10 361619 8 Screw, M10-1.5 x 30 mm Hex Head
11 64237-03 8 Nut, M10-1.5 Nylock Hex
