J-200

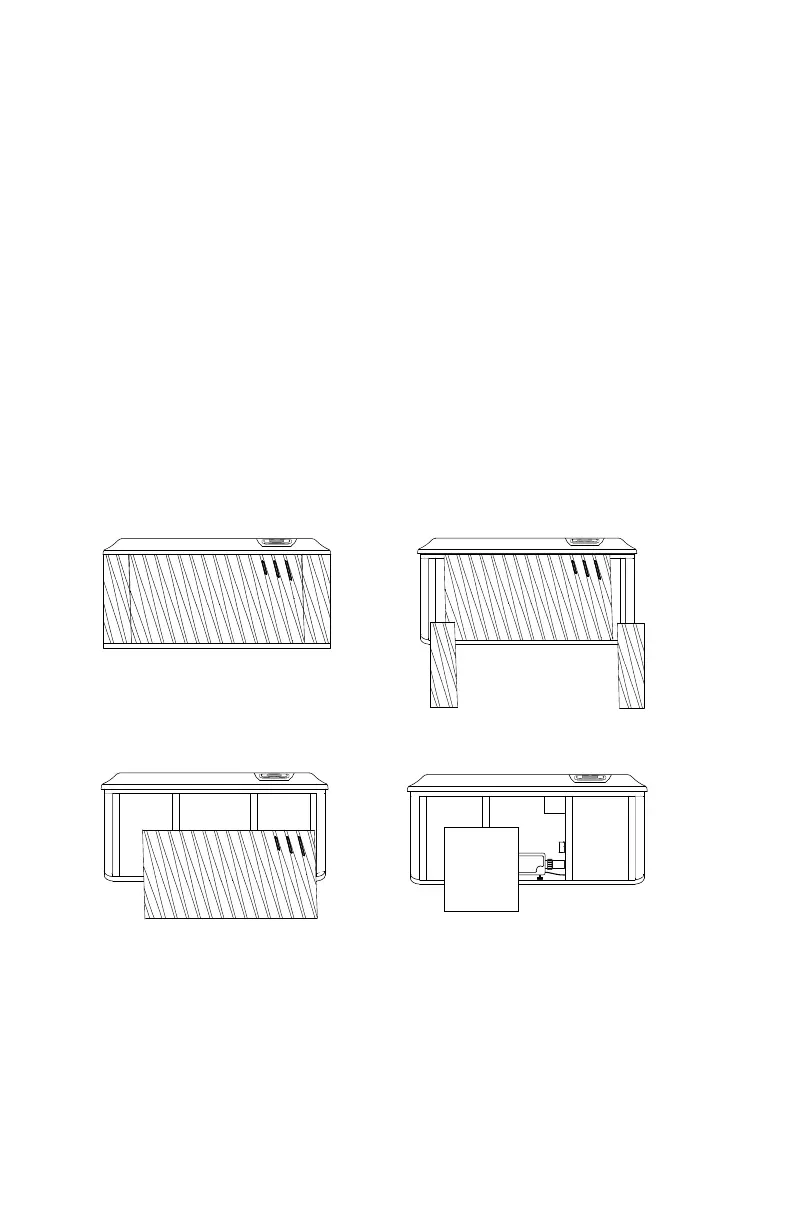

8. To gain access to the spa’s power terminal block (Figure 1):
• Remove the corner panels. Grab the top of the panel and pull
forward to unsnap it from the clips. Then lift the panel up to remove.
• To remove the front panel. Start at one end and pull the panel
forward to unsnap it from the retaining clips, at the top. Work your
way along the entire length of the panel.
• Once the panel it unclipped, tilt it slightly forward and lift the panel up
to remove. Be careful with the exterior light cord. Disconnect it before
fully removing the panel.
• Remove the insulation panel and place it in a safe location.
9. Then remove the control box door screws and door. Feed power
cable to control box (Figure B), then install it through the large
opening provided in the bottom side of the box.
10. Connect wires to the terminal block TB1 (Figure C, page 17).
TIGHTEN SECURELY! All wires must be hooked up securely or
damage could result.
11. Re-install control box door and screws, insulation panel (if equipped),
secure the insulation blanket (if equipped), and reinstall the cabinet
side panels.
Figure 1
