14. System Test 2: Reconnect the CLEARRAY unit to the controller.
Turn breaker back ON. Turn on the pump to circulate the water
through the CLEARRAY unit. Wait for 5 minutes and assure no
water is dripping. If water is visible, STOP, x the leak by repeating
quartz tube maintenance process from step 1 through step 13. Make
sure there is no water visible. Turn the pump and breaker OFF
BEFORE proceeding to step 15.
15. Reconnect the UV bulb socket (7) to the power cord socket (11)
make sure you use the latex glove provided when handling the UV
bulb.
WARNING: DO NOT TOUCH THE NEW UV BULB WITH
YOUR BARE HAND. Oil on your skin will cause hot spot on
the UV bulb and shorten the life of your UV bulb. Use the
provided latex glove to handle the UV bulb.
!
16. Slide the new UV bulb (3) back inside the quartz tube.
17. Reinstall the black bulb boot (6) back over the quartz seal
compression nut (5).
18. Reinstall the enclosure cover (9) with gasket (8) and secure with the
screws.
19. Properly dispose of the old UV bulb.
WARNING: This CLEARRAY includes a UV bulb, which
contains mercury. Dispose of the bulb in accordance with
disposal laws. See www.lamprecycle.org.
!

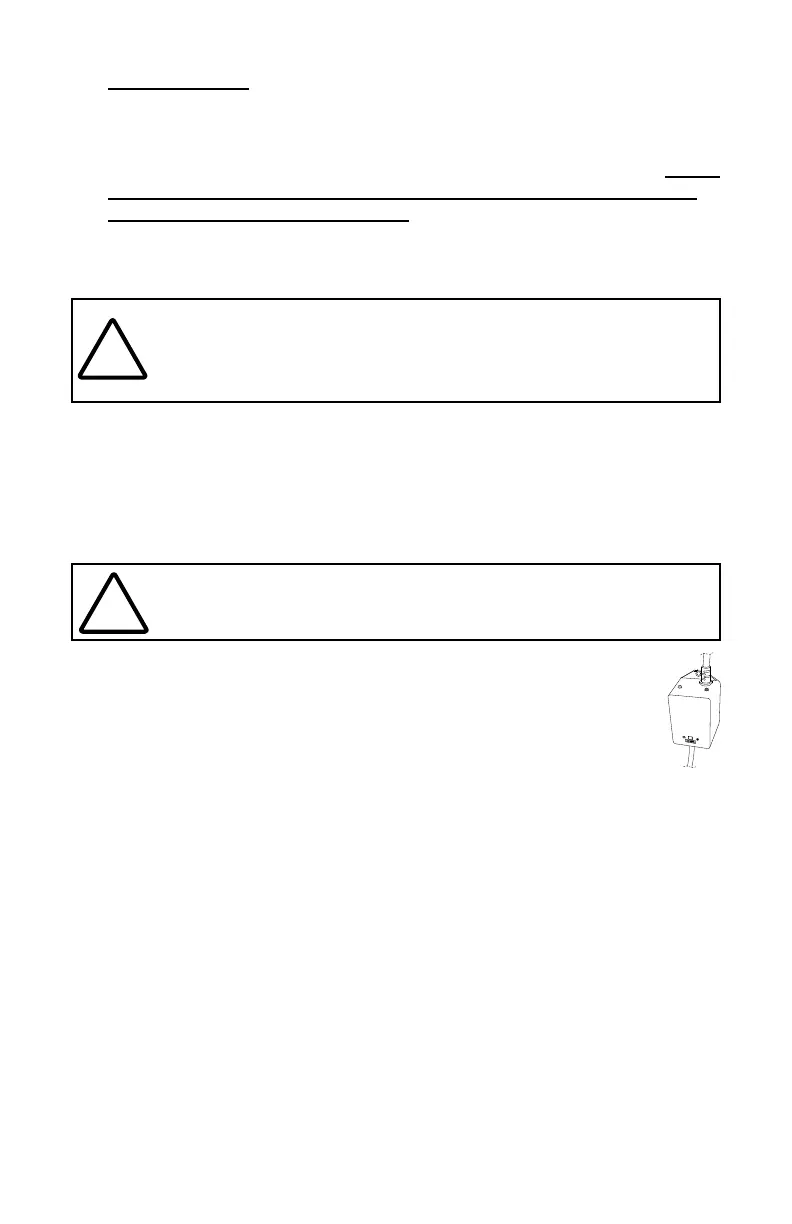

20. Once power is activated you can check the ballast
(12), Figure 8, to see if the CLEARRAY unit is functioning; it
has two LED indicator lights the green indicating incoming
power ow and the red indicating the system is properly
working.
1
2
0
-
2
3
0
V
FIGURE 8
