8. The electrical supply for this product must include a suitably rated
isolating switch and circuit breaker to comply with local electrical
regulations. This RCD/GFCI circuit breaker must be installed at the
power supply in the house electrical box.
9. For Australia/New Zealand, the spa should be supplied through
a residual current device (RCD) with a rated tripping current not
exceeding 30mA (IEC 60335-2-60).
10. To gain access to the spa’s power terminal block, press the release
button securing the synthetic cabinet panel under the control panel
(Figure A). Then remove the control box door screws and door
(Figure B).
11. Select the power supply inlet you want to use (Figure A). Make sure
to install a 3/4" electrical tting and conduit through the large opening
provided in the side of the control box so you can feed the cable
through to the terminal block.
12. Connect wires to terminal blocks TB1 and TB3 (Figure C, page
17). TIGHTEN SECURELY! All wires must be hooked up securely
or damage could result.
13. Install control box door and screws and reinstall the cabinet panels.

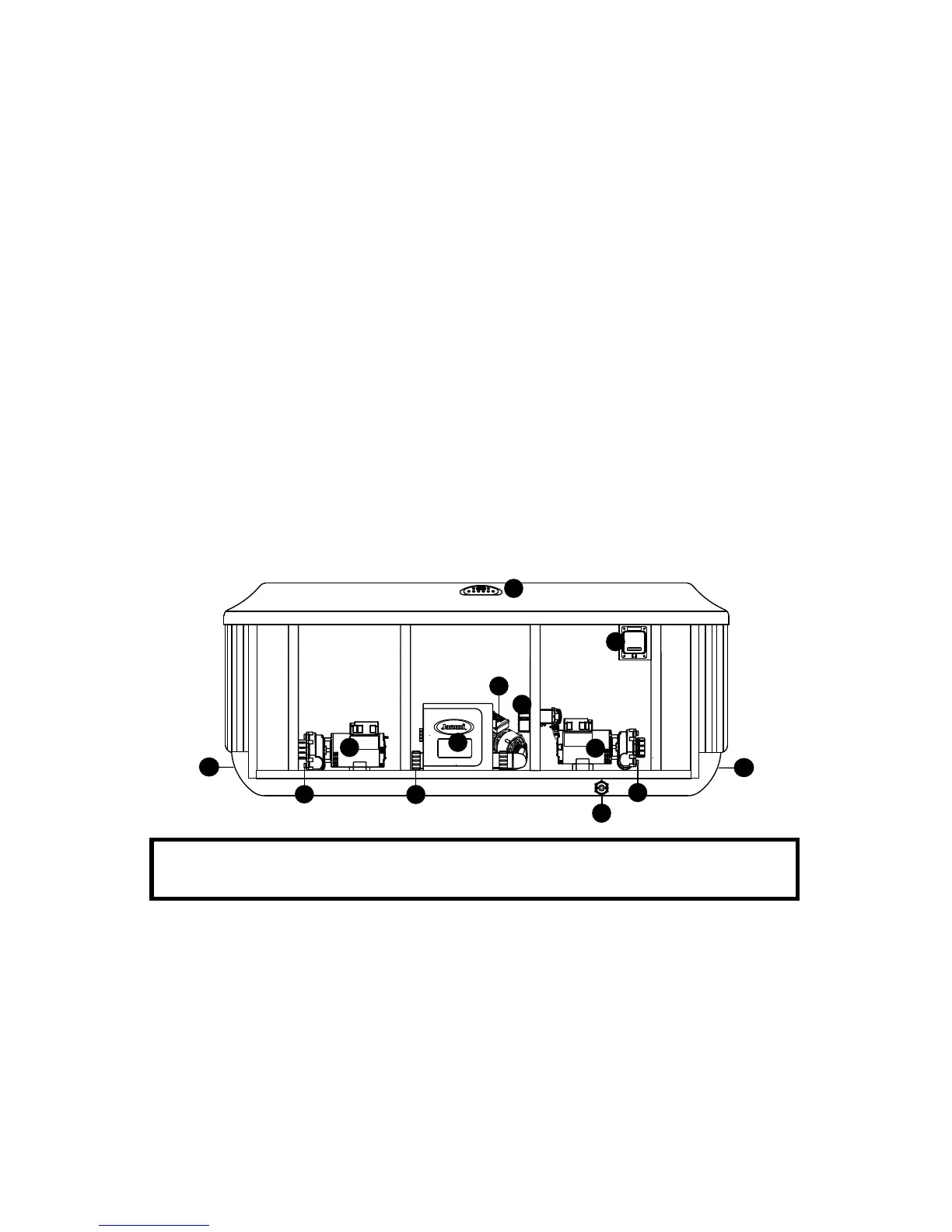

Figure A
Equipment Area
5
3
7
2
9
6
6
10
11
1
8
4
2
Note: Equipment location (such as pumps, CLEARRAY system, drain, heat-
er etc.) varies by model.
1. Control Box
2. Power Supply Entrance(s)
3. 1-Speed Jets Pump
4. Heater
5. Spa Drain Valve
6. Pump Drain Plugs(s)
7. 1-Speed Jets Pump
8. Circulation Pump
9. Control Panel
10. CLEARRAY® (Ultraviolet) Water
Purication System
11. Optional ProLink™ Monitoring
System
