Jacuzzi J-460 - J-465 Massage; Waterfall Selector Diagram

Page 32

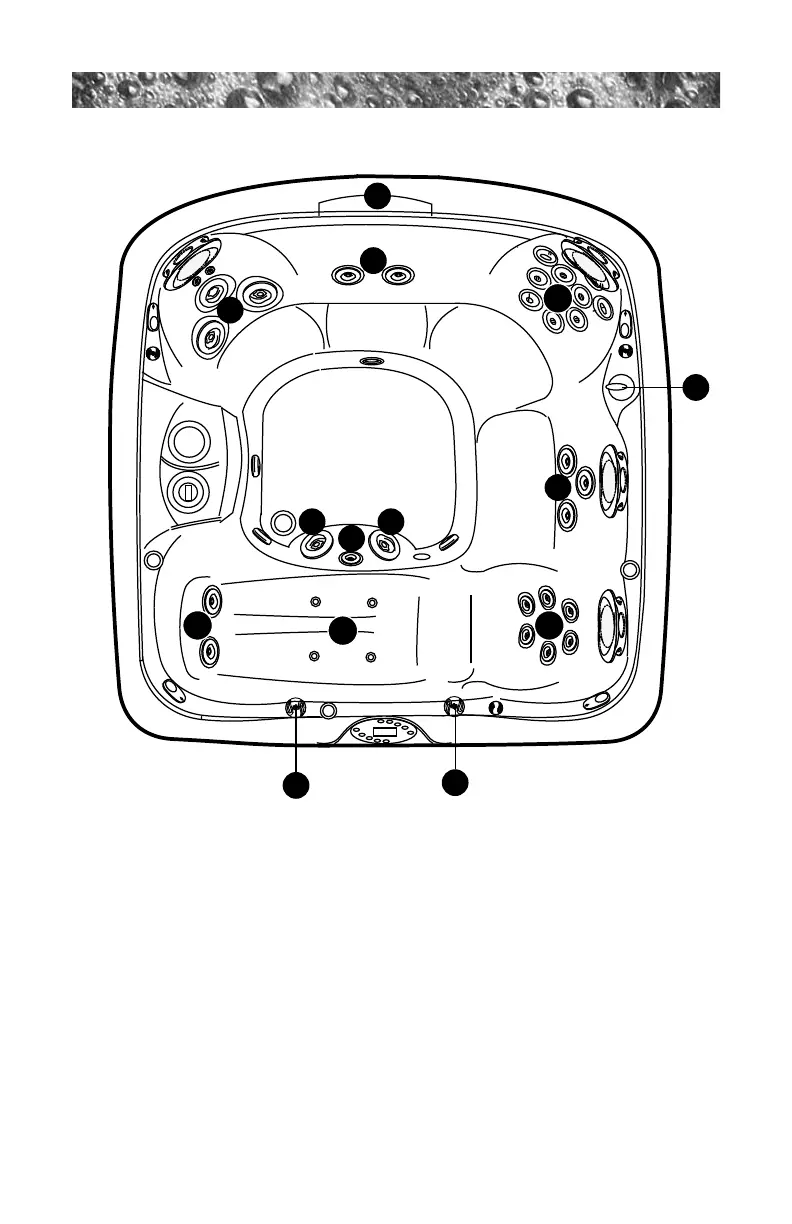

9.17 J-465 Massage / Waterfall Selector Diagram
1a
1b
1b
1b
4
4
4
44
1
2
3
3
2
Massage Selectors (1)
• Massage selector 1 diverts pump 1 output between jets groups 1a-1b.
Massage Selector (2)
• Massage selector 2 controls pump 1 output to footwell IX Jet.
Waterfall Selector (3)
• Waterfall selector 3 controls circulation pump output to waterfall.
Jets Without Massage Selector Controls (4)
• Jets 4 are always on when jets pump 2 is running.
Spa operation subject to change without notice.
