Page 13
J-400
4. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code/USA,
ANSI/NFPA 70. The disconnecting means must be readily accessible
to the spa’s occupant but installed at least 5 feet (1.5m) from spa
water.
5. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42/USA.
6. For Australia/ New Zealand, the spa should be supplied through
a residual current device (RCD) with a rated tripping current not
exceeding 30mA (IEC 60335-2-60).
7. To gain access to the spa’s power terminal block, press the release
button securing the cabinet panel under the control panel. See page
66 for instructions on how to remove the cabinet panel(s). Then
remove the six door screws on the control box (Figure 6.0a). Place
the panel is a safe location to prevent damage.
8. Select the power supply entrance you want to use, Figure 6.0a.
Make sure to install a 3/4" electrical tting and conduit through the
large opening provided in the bottom of the control box so you can
feed the cable through to the terminal block.
9. Connect wires to the terminal block (Figures 6.0b-6.0c). ALL WIRES
MUST BE SECURELY CONNECTED or equipment damage could
result!
10. Install control access box door and reinstall the cabinet panel(s).

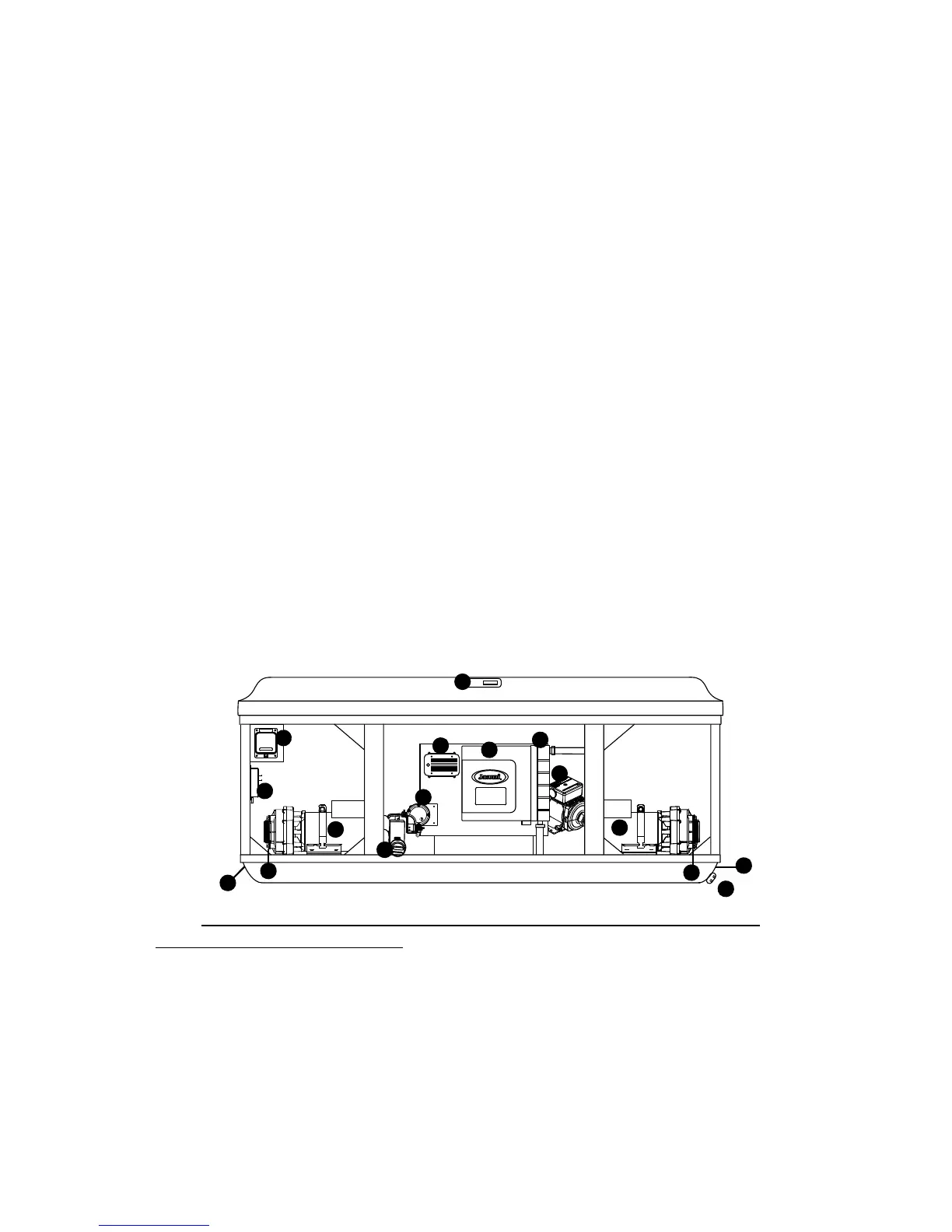

Figure 6.0a
Equipment Area
Power
on
Lamp
on
DANGER!
TURN POWER
OFF! DO NOT
LOOK AT LIT BULB.
SEVERE EYE
DAMAGE OR BLINDNESS
CAN OCCUR!
9
9
6
2
3
1
5
10
10
11
7
13
14
4
12
8
Note: Equipment location and quantity (such as pumps, CLEARRAY system, stereo,
drain, heater etc.) varies by model.
1. ProTouch™ Control Panel
2. ProTouch™ Control Box
3. Heater
4. Filter/Circulation Pump
5. Jets Pump
6. Jets Pump
7. CLEARRAY® Water
Purication System
8. QuickDrain™
9. Pump Drain Plugs(s)
10. Power Supply Entrance(s)
11. Spa Drain Valve
12. BLUEWAVE® 2.0 Wireless
Stereo (Optional)
13. ProLink™ Remote Monitoring
System Module (Optional)
14. LED Lights DCU unit
To Next Page
