Jacuzzi J-470 - J-480 Massage;Waterfall Selector Diagram

Page 27
J-400

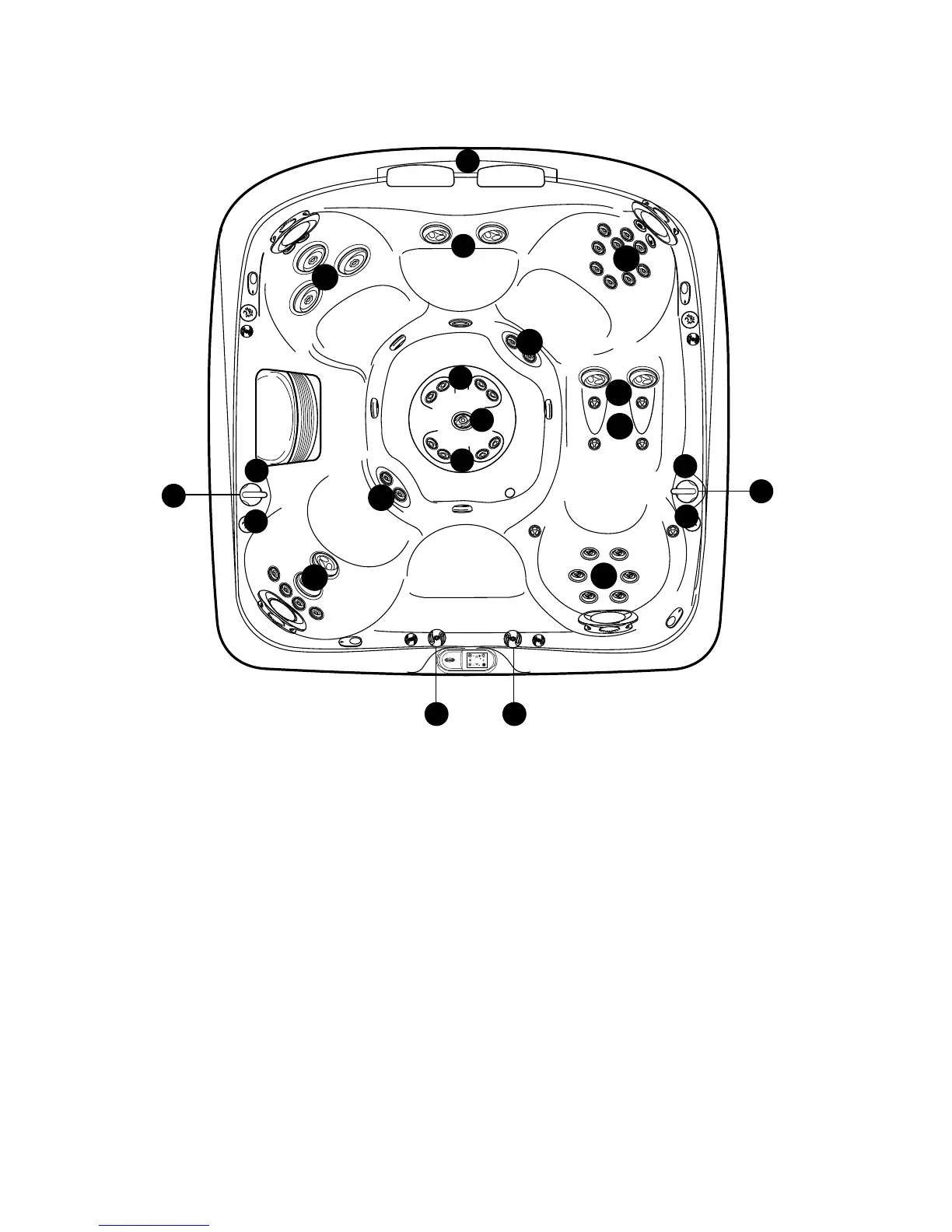

9.5 J-480 Massage/Waterfall Selector Diagram
100
6:45p
ON
1a
1b
1b
2b
2b
2b
2a
2a
1
3
3
5
5
5
2
b
a
b
a
4
4
Massage Selectors (1-2)
• Massage selector 1 diverts jets pump Nº 1 output between jet groups
1a-1b.
• Massage selector 2 diverts output jets pump Nº 2 between jet groups
2a-2b.
Waterfall Selector (3)
• Waterfall selector 3 controls circulation pump output to waterfalls.
IX Jet Flow Control Valve (4)
• Valve (4) controls output to footwell IX Jet when jets pump Nº 2 is
running.
Jets Without Massage Selector Controls (5)
• Jets (5) are always on when jets pump Nº 1 is running.
Spa operation subject to change without notice
