Jacuzzi J-470 - J-425 Massage;Waterfall Selector Diagram

Page 36
J-400

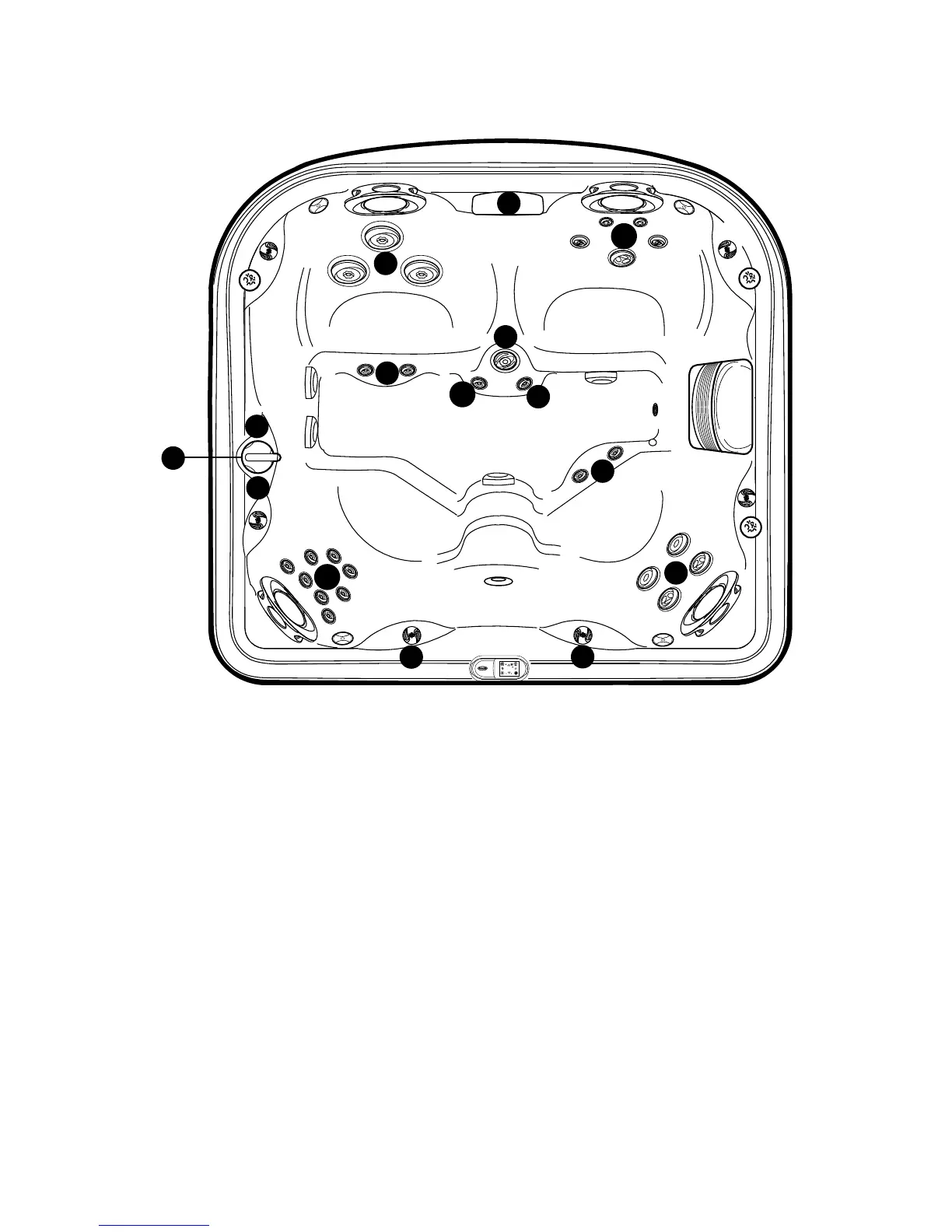

9.14 J-425 Massage/Waterfall Selector Diagram
100
6:45p
ON
1a
1b
1b
4
4
a
b
4
4
4
1
3
3
2
2
Massage Selector (1)
• Massage selector 1 diverts jets pump Nº 1 output between jet groups
1a-1b.
IX Jet Flow Control Valve (2)
• Valve (2) controls output to footwell IX Jet when jets pump Nº 1 is
running.
Waterfall Selector (3)
• Waterfall selector (3) controls circulation pump output to waterfall.
Jets Without Massage Selector Controls (4)
• Jets (4) are always on when jets pump Nº 2 is running.
Spa operation subject to change without notice
