J-400

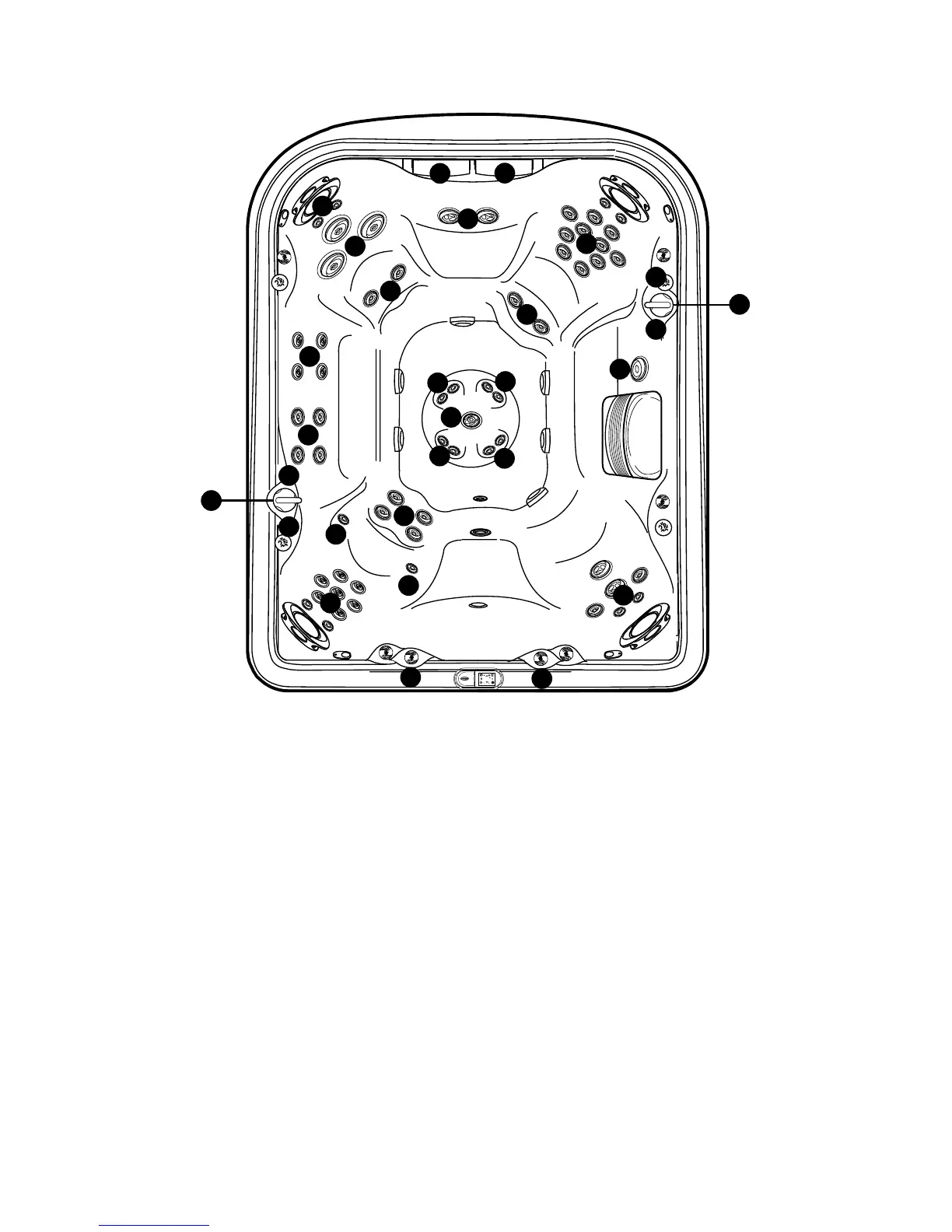

9.2 J-495 Massage/Waterfall Selector Diagram
100
6:45p
ON
b
3
3
5
4
1b
4
4
4
4
5
5
4
1b
1b
1b
1a
2a
2b
2b
a
2
2a
1a
1a
1a
1
b
a
Massage Selectors (1-2)
• Massage selector 1 diverts jets pump Nº 2 output between jets
groups 1a-1b.
• Massage selector 2 diverts jets pump Nº 1 output between jets
groups 2a-2b.
IX Jet Flow Control Valve (3)
• Valve (3) controls output to footwell IX Jet when jets pump Nº 3 is
running.
Jets Without Massage Selector Controls (4)
• Jets (4) are always on when jets pump Nº 3 is running.
Waterfall Selector (5)
• Waterfall selector (5) controls circulation pump output to waterfall.
Spa operation subject to change without notice
