B. Switch settings for Export 50Hz Models

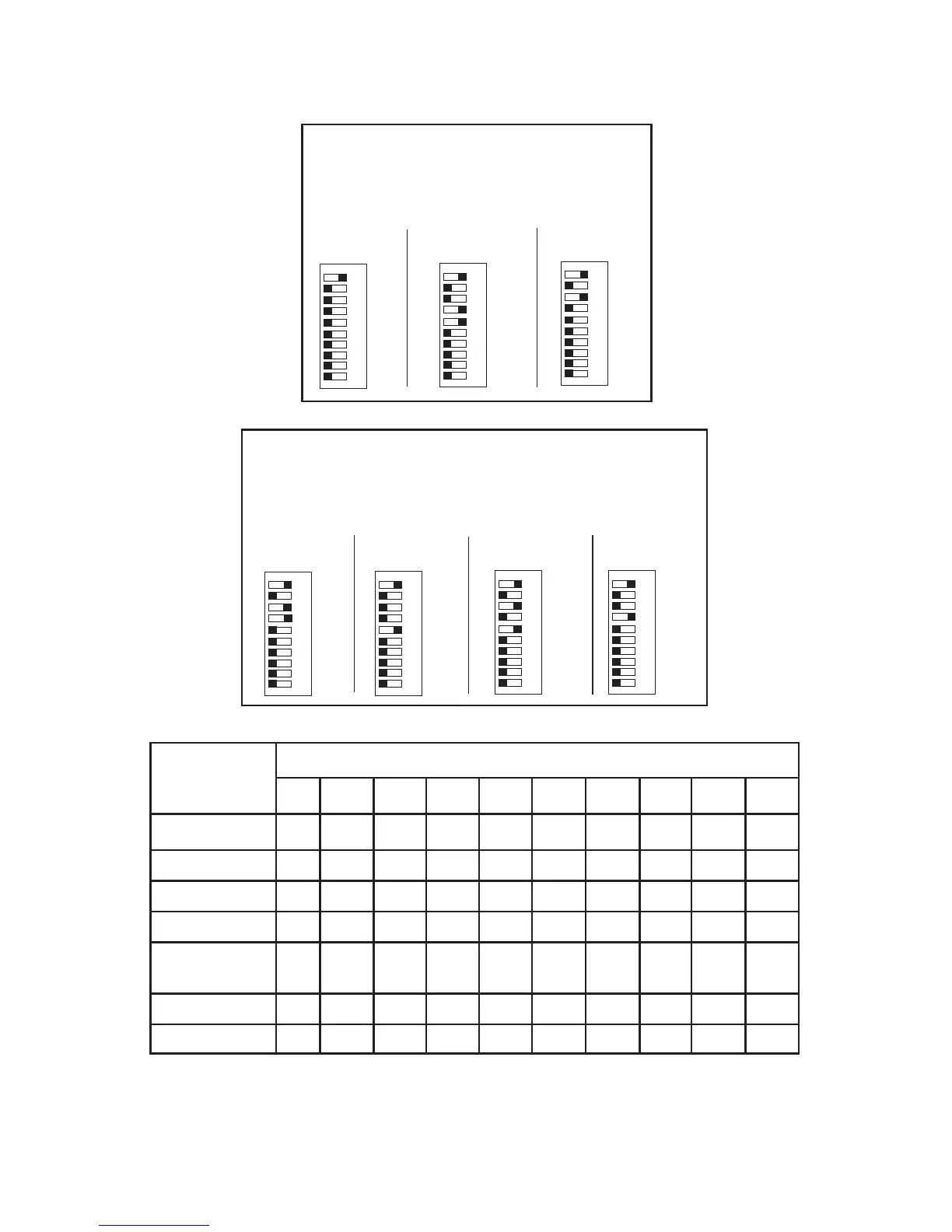

EXPORT DIP SWITCH SETTINGS
S1 LOCATION
1x16A 1x20A
1x32A
1
2
3
4
5
6
7
8
9
10
ON
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
ONOFF
2x16A
1
2
3
4
5
6
7
8
9
10
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
ON
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
1
2
3
4
5
6
7
8
9
10
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
EXPORT DIP SWITCH SETTINGS
S1 LOCATION
1x40A or
1x16A/1x32A
1x16A/1x20A 3x16A
1
2
3
4
5
6
7
8
9
10
ON
OFF
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
ONOFF
BREAKER
DIP SWITCH NUMBER
1 2 3 4 5 6 7 8 9 10
1x16A ON OFF OFF OFF OFF OFF OFF OFF OFF OFF
1x20A ON OFF OFF ON ON OFF OFF OFF OFF OFF
2x16A ON OFF ON OFF OFF OFF OFF OFF OFF OFF
1x32A** ON OFF ON ON OFF OFF OFF OFF OFF OFF
1x40A or
1x16A/1x32A
ON OFF OFF OFF ON OFF OFF OFF OFF OFF
1x16A/1x20A ON OFF ON OFF ON OFF OFF OFF OFF OFF
3x16A ON OFF OFF ON OFF OFF OFF OFF OFF OFF
