J-Dream Owner’s Manual
Attach Panel #2 to Seat Wall Frame

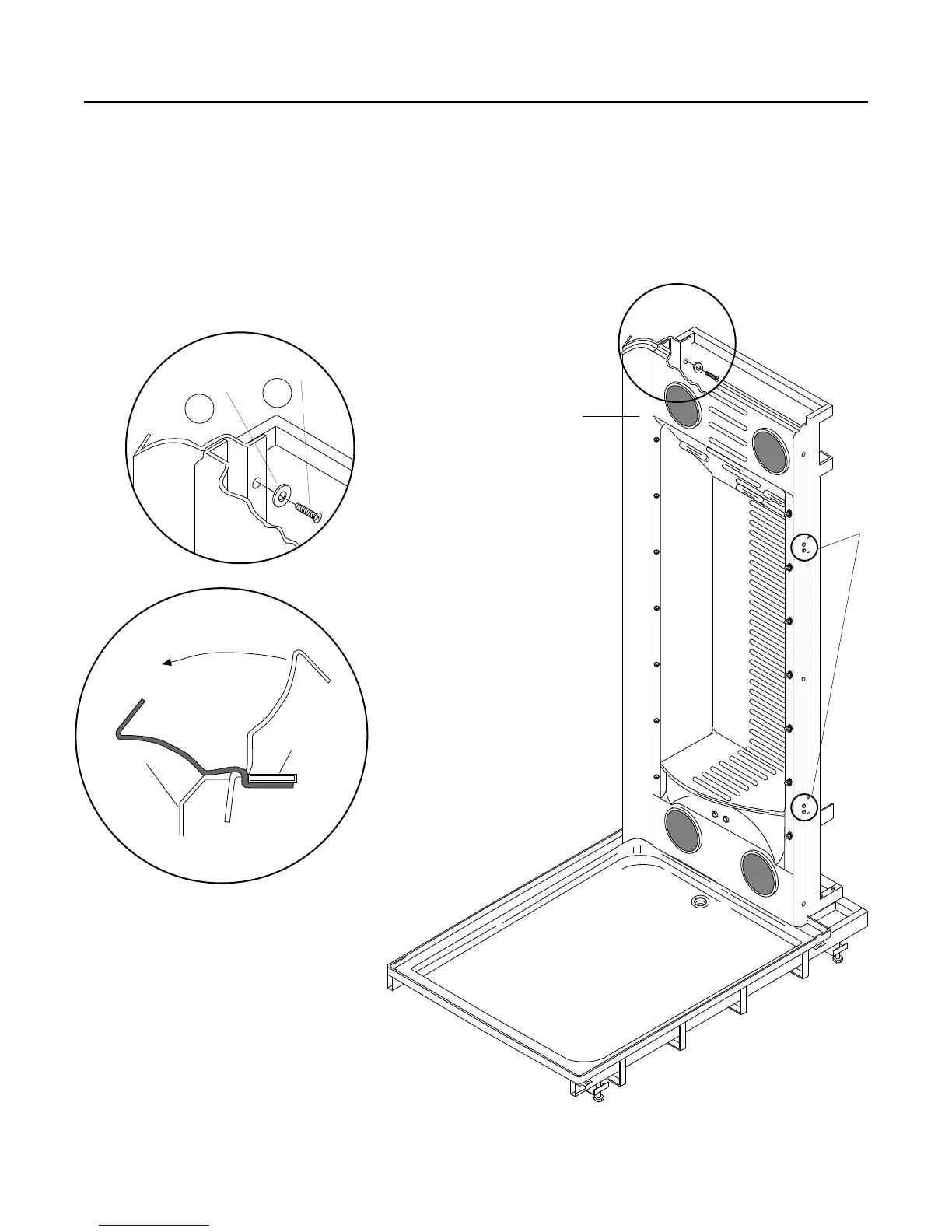

Slide in panel feeding between frame and edge of seat wall. Align to frame and fasten panel to frame. Important: Do
not caulk panel to seat wall as the seat wall is hinged and designed to swing open.
F
Screw (4)
C
Washer (4)
Top View
Move
Frame
Seat Wall
When Panel #2 is installed
and put in position the seals
will be as shown.
Panel #2
Remove
these 4
screws to
swing the
seat wall
open.
You may want to swing the
hinged seat wall open to
get better access to the
installation of the screws.
13
To Next Page
